    Playset ANDROMEDA

    Code: GM425601

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    download pdf PDF download dwg DWG
    3D Models:
    pobierz dwg DWG

    This product you can also find in sections:

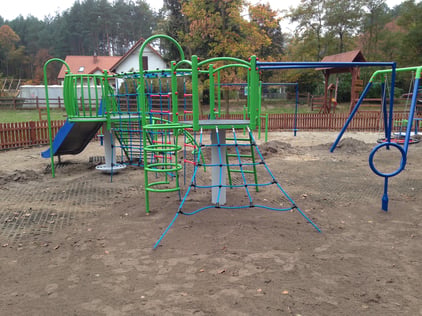

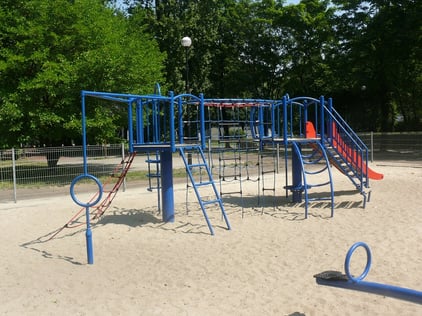

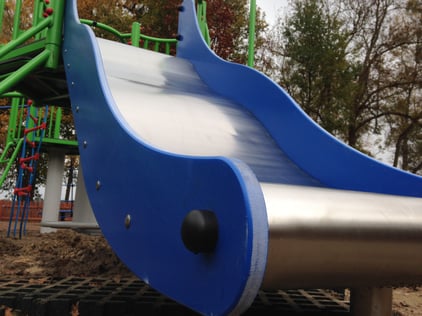

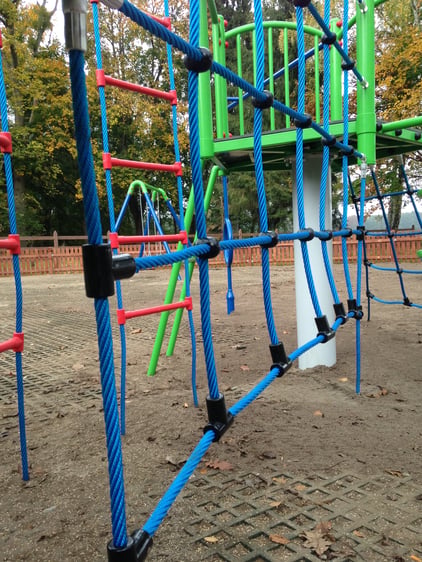

    Two-towers multifunctional climbing set based on two extremely strong foundation pillars. Construction of the set is hot-dip gavanized, powder painted and consists of pipes with rounded profile. Floor of the platform covered by PE plate with anti-slip dots. It’s equipped with polypropylene 16mm ropes reinforced with steel core. The slide surface made of stainless steel, sides of the slide made of HDPE material with thickness 19mm. Optionally plastic slide can be fixed.

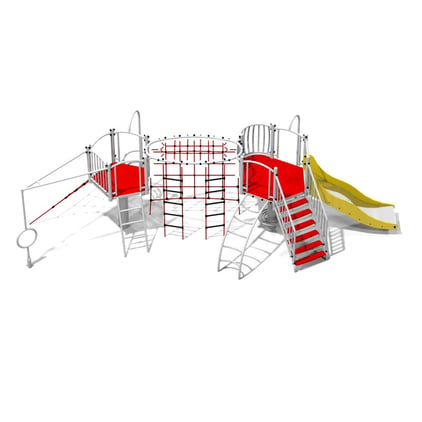

    Playground device consists of

    • 1x pentagonal tower
    • 1x hexagonal tower
    • 1x wavy slide
    • 1x entrance stairs with banisters
    • 1x entrance curved ladder
    • 1x entrance straight ladder
    • 1x entrance climbing net
    • 1x entrance element with rings
    • 1x rotating element
    • 1x net climbing wall
    • 2x rope ladders
    • 1x fire pipe

    Product details

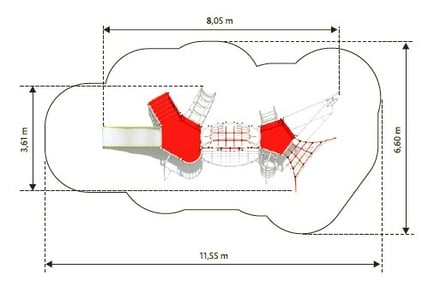

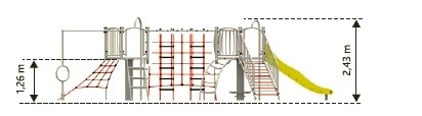

    • Dimensions: 8,05 x 3,61 x 2,43m
    • Safety area: 11,55 x 6,60 m
    • Free fall height: 1,98m
    • Age: > 3 years
    • A certificate confirming compatibility with norm EN 1176

    All images are for illustration purpose only and may vary from the actual product.
