Tunnel TUNELO 300
Code: LL-MO-206
Description
A tunnel tube in the shape of a circular pipe is designed for installation inside natural or formed embankments. Length of slide 3,00m, diameter 0,85m. Entrance and exit cut at 30º angle to the axis of the tunnel. It’s fully made of matt stainless steel.
Playground device consists of
- 1 tunnel tube
Product details

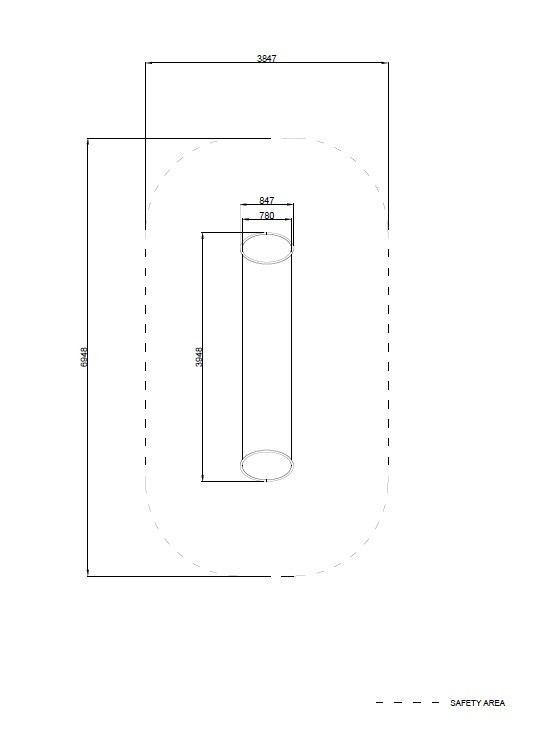

- Product dimensions (LxWxH): 3,00 x 0,85 x 0,85 m
- Safety area (LxW): 6,90 x 3,78 m
- Length between tunnel feet: L1 = 2,07 m
- Length of the top of the tunnel: L2 = 3,00 m
- Length of the bottom of the tunnel: L3 = 3,90 m
- Weight: 148 kg
Materials
- matt stainless steel (0304), the thickness of steel plate 2mm
- foundation legs made of stainless steel
Dimension tolerance is +/- 5%
All images are for illustrative purposes only and may vary from the actual product.
