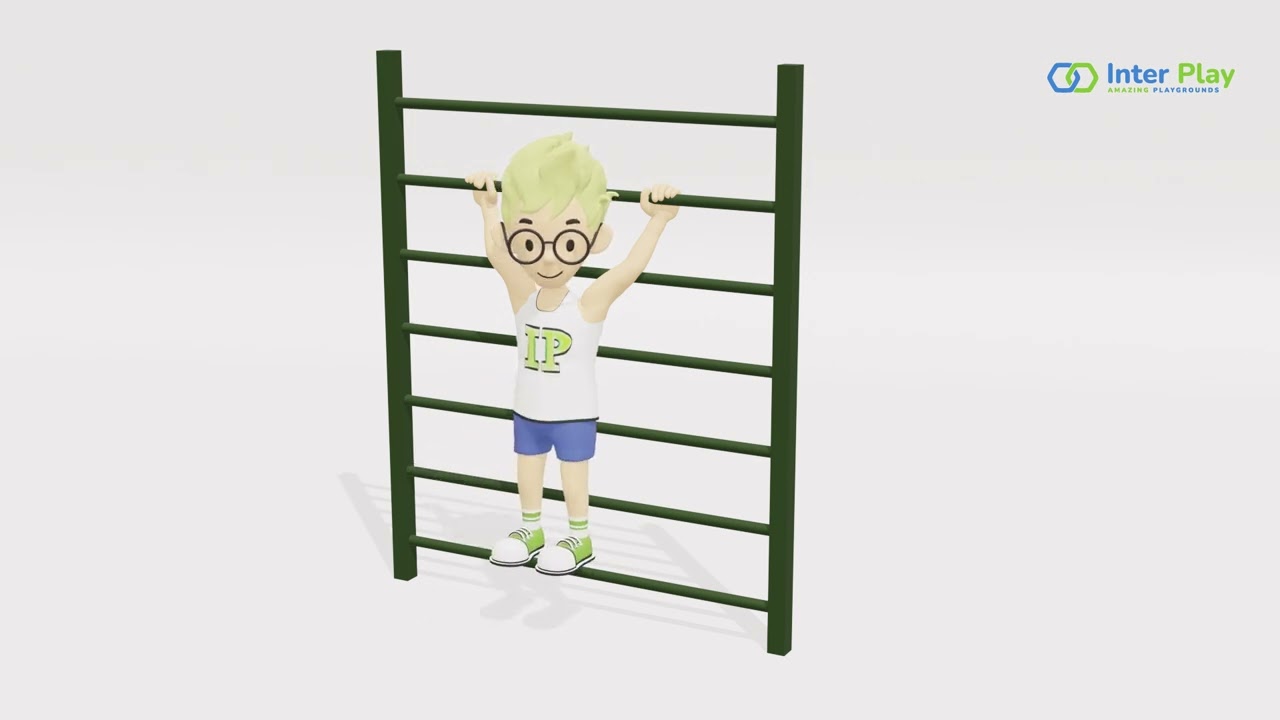

    VERTICAL LADDER 1

    Code: KS-SW-08

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    download pdf PDF download dwg DWG
    3D Models:


    Description

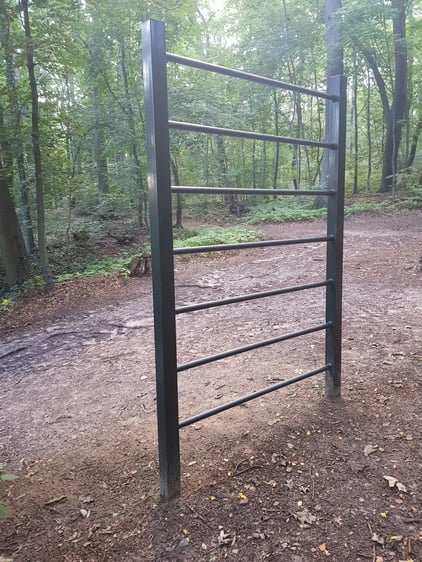

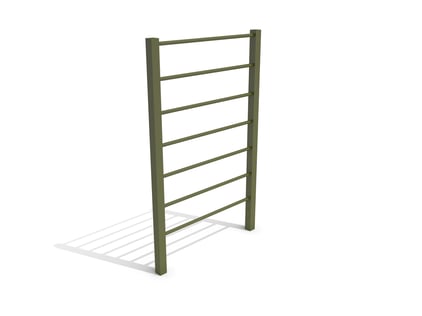

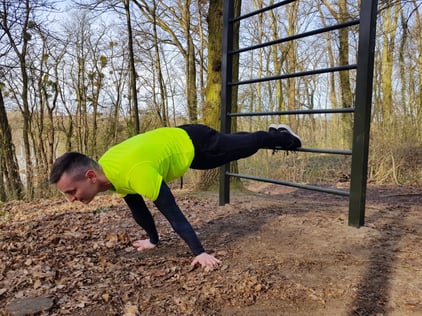

    Vertical ladder with 2 posts consisting of 6 crosswise bars, intended for teenagers and adults. The structure is made of galvanized and powder coated steel. Training on the ladder strengthen muscles of the chest, back, arms, shoulders and abdomen. It also affects the sense of balance and improves motor coordination.

    Product details

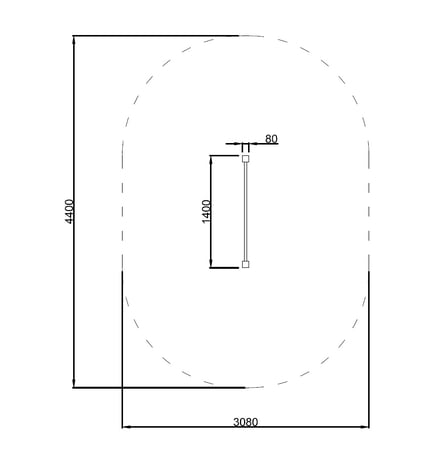

    • Dimensions (LxWxH): 1,40 x 0,08 x 2,50 m
    • Safety area (LxW): 4,40 x 3,08 m
    • Freefall height: 1,40 m
    • Height of the bar: 2,40 m
    • User’s maximum weight: 150 kg

    Dimension tolerance is +/- 5%

    Materials

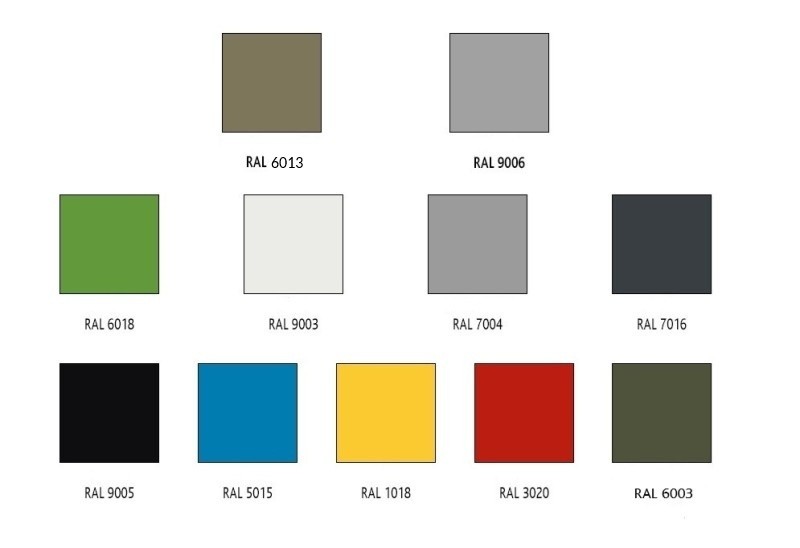

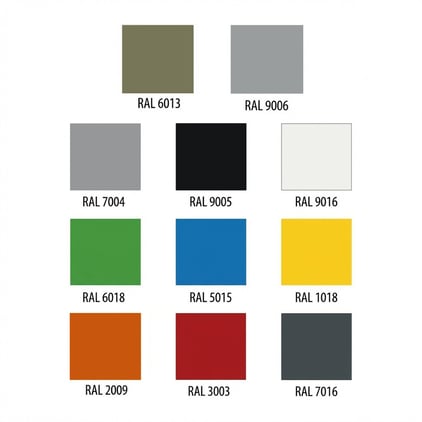

    • Galvanized and powder painted steel - the devices are painted in green (RAL 6013) and grey (RAL 9006). On request other RAL colors may be used.
    • Construction posts with square profile 80x80 mm (thickness 3 mm),
    • Rounded profile bars with diameter 33,7 mm
    • Screws covered by polymer caps.
