    UP-DOWN BENCH 2

    Code: KS-SW-41

    Technical data sheet:
    pobierz pdfPDF
    Technical drawings:
    pobierz pdfPDF pobierz dwgDWG
    3D Models:
    pobierz dwgDWG

    Description

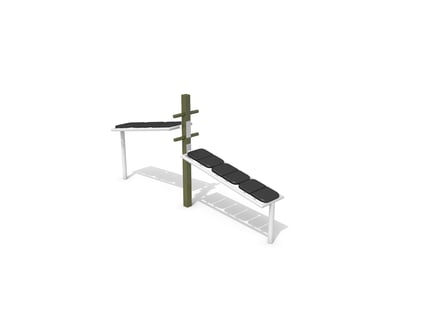

    Double bench intended for teenagers and adults. Seats are made of elastic and comfortable PU component. The benches are fixed opposite each other to one structural pole at different heights – 0,53 m and 0,79 m. The structure is made of galvanized and powder coated steel. Training on it improves straight and oblique abdominals.

    Product details

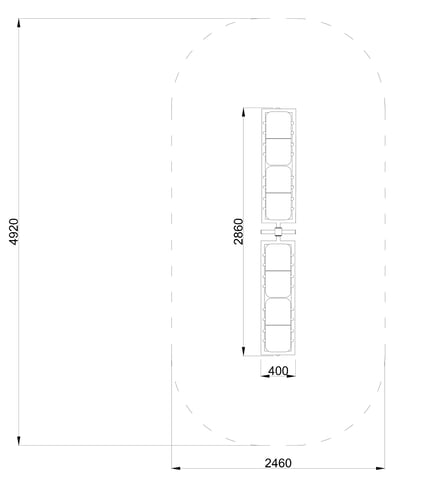

    • Dimensions (LxWxH): 2,86 x 0,40 x 1,40 m
    • Safety area: 4,92 x 2,46 m

    Dimension tolerance is +/- 5%

    Materials

    • Galvanized and powder painted steel - the devices are painted in green (RAL 6003) and grey (RAL 9006). On request other RAL colors may be used.
    • Construction posts with square profile 80x80 mm (thickness 3 mm),
    • Vertical pipe on which the bench rests with a diameter of 60,3 mm and a length of 0,50 m,
    • Rounded profile bars with diameter 42,4 mm
    • Screws covered by polymer caps.
