    PULL UP ROPE

    Code: KS-SW-02

    Description

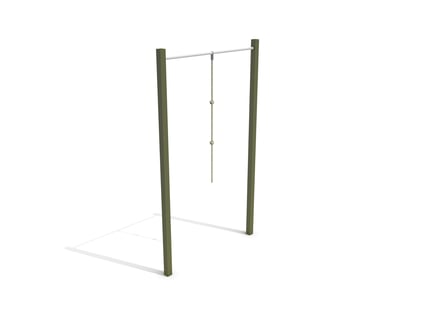

    Climbing device with a rope, intended for teenagers and adults. The structure is made of galvanized and powder coated steel. Training on the rope strengthen all muscle groups.

    Technical data

    • Dimensions (LxWxH): 1,80 x 0,08 x 3,00 m

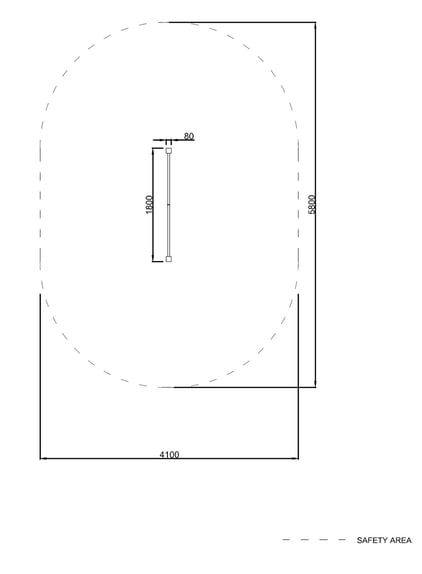

    • Safety area: 5,80 x 5,10 m
    • User’s maximum weight: 150 kg

    Dimension tolerance is +/- 5%

    Materials

    • Galvanized and powder painted steel - the devices are painted in green (RAL 6003) and grey (RAL 9006). On request other RAL colors may be used.
    • Construction posts with square profile 80x80 mm (thickness 3 mm),
    • Rope made of hessian

    Rounded profile bar with diameter 60,3 mm

    Picture:
    JPG
    Technical data sheet:
    PDF
    Technical drawings:
    PDF DWG
