    GYMNASTIC RAILS WITH POSTS

    Code: KS-SW-15

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    download pdf PDF download dwg DWG
    3D Models:


    This product you can also find in sections:

    Description

    Gymnastic rails intended for teenagers and adults. The device consists of 2 square profile construction posts and 2 gymnastic rails fixed to the posts at a height of 1,20 m. The distance between them is 0,50 m. The structure is made of galvanized and powder coated steel. Training on the rails strengthen muscles of the chest, back, arms, shoulders and abdomen. It also affects the sense of balance and improves motor coordination.

    Product details

    • Dimensions (LxWxH): 1,60 x 0,6 x 1,70 m
    • Safety area (LxW): 4,6 x 3,6 m
    • Freefall height: 0,2 m
    • Height of the rails: 1,2 m
    • User’s maximum weight: 150 kg

    Dimension tolerance is +/- 5%

    Materials

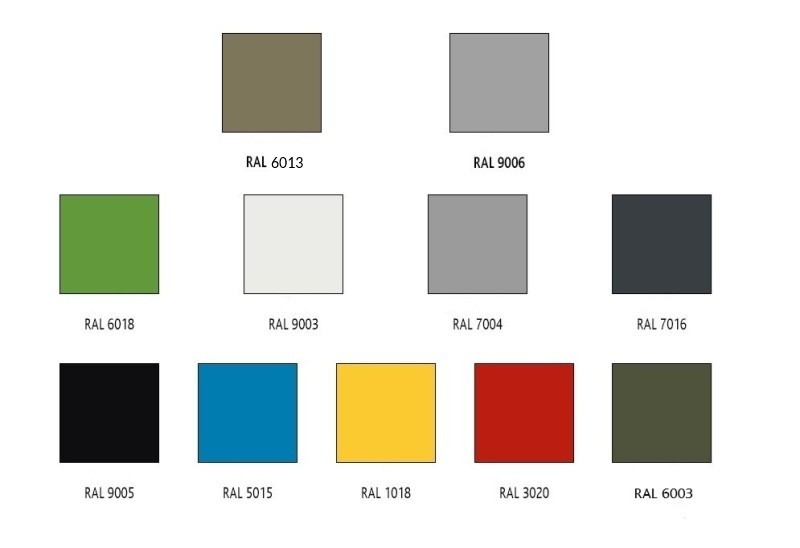

    • Galvanized and powder painted steel - the devices are painted in green (RAL 6013) and grey (RAL 9006). On request other RAL colors may be used.
    • Construction posts with square profile 80x80 mm (thickness 3 mm),
    • Rounded profile bars with diameter 42,4 mm
    • Screws covered by polymer caps.

    All images are for illustration purpose only and may vary from the actual product.
