    AMERICAN BASKET

    Code: MR-SP-013/014/015

    Technical data sheet:
    pobierz pdfPDF
    Technical drawings:

    3D Models:


    Description

    American basket with a height of 3,05 m till hoop and 165 cm/80 cm /25 cm overhang. The board is made of a steel grating in an American type frame with a  steel hoop finished with a chrom chain. The board is equipped with a cassette for mounting on a pole.

    Device consists of

    1x board made of steel grating
    1x hoop with a chrome chain

    1 x steel pole

    1 x anchore

    Product details

    • Dimensions for board: 160 x 110 cm

    Materials

    • The construction made of galvanized steel
    • The construction made of pipe 133 x 4 mm
    • The board made of a steel grating in an American type frame made of a 50x30x1.5 mm profile
    • The hoop made of a smooth rod 20mm, equipped with a chrome chain 5mm thick.

    Differences in dimensions no more than +/- 5% are acceptable.

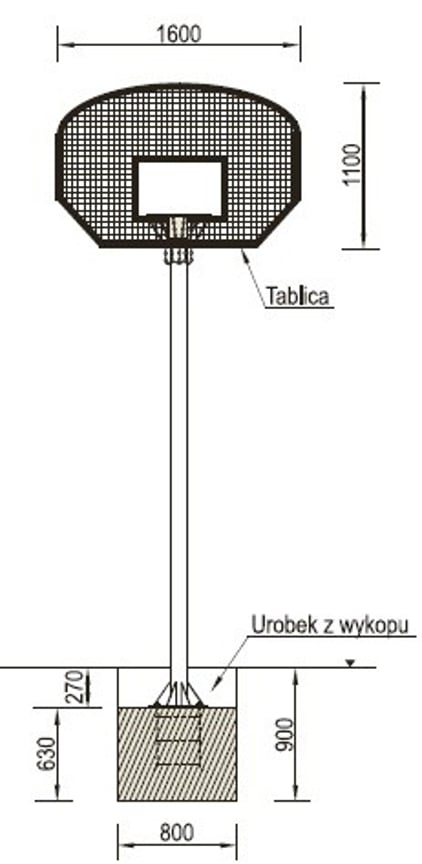

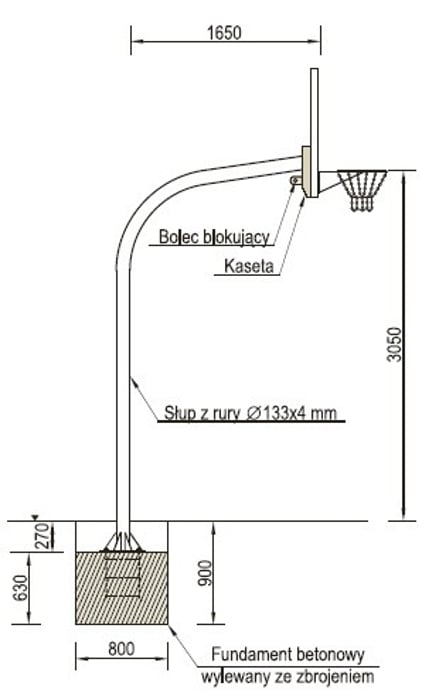

    The presented drawing should be treated as illustrative. It may be slightly different from the actual product.
