    Spinner ORBIT 2

    Code: GK-RO-204

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    download pdf PDF download dwg DWG
    3D Models:
    pobierz dwg DWG

    This product you can also find in sections:

    Description

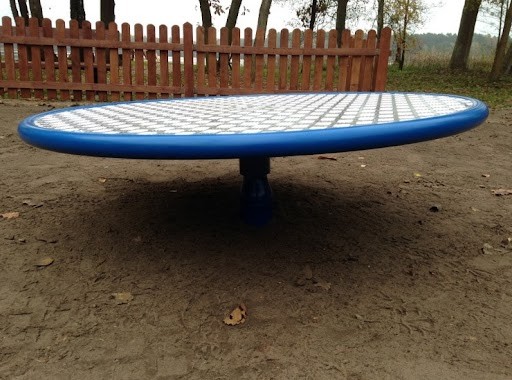

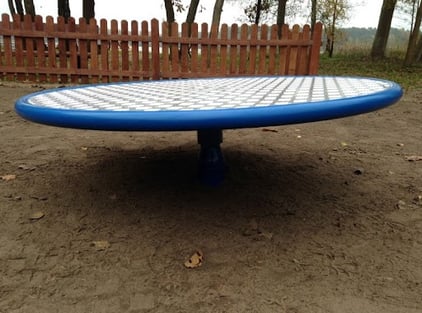

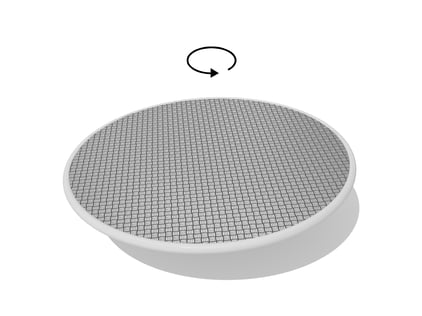

    Carousel with an inclined disc with a rotating function. It rotates using the force of gravity. The platform is made of aluminium.


    Playground device consists of

    • 1 rotating platform.


    Product details

    • Device dimensions (LxWxH): 2,09 x 2,09 x 0,62 m

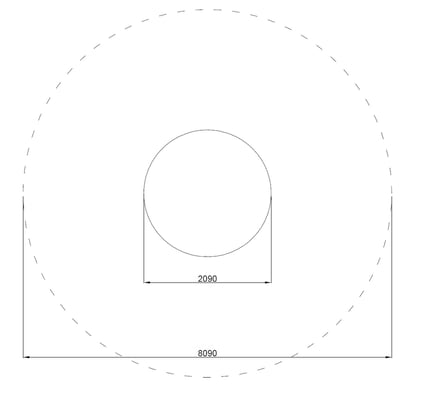

    • Safety area: 8,09 x 8,09 m
    • Maximum fall height: 1,0 m
    • A certificate confirming compliance with norm 1176
    • Dimension differences of no more than +/- 5% are allowed.


    Materials

    • Floor structure - steel pipe 48.3 x2 mm; steel profile 50x30x2 mm;
    • Column foundation - steel pipe 114.3 x 3.6 mm,
    • Construction made of metal powder painted.

    All images are for illustration purpose only and may vary from the actual product.
