Inclusive roundabout AUTAN 2

Code: IS-IN-102

Download files

Technical data sheet:

PDF

DOC

Technical drawings:

PDF

DWG

3D Models:

DWG 3DS SKP

This product you can also find in sections:

Description

Description

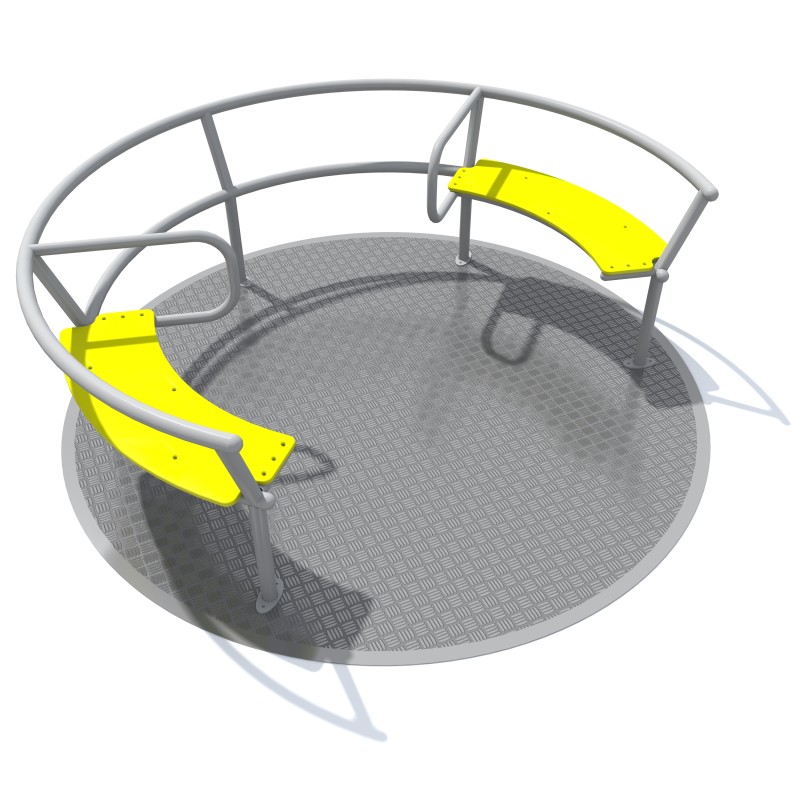

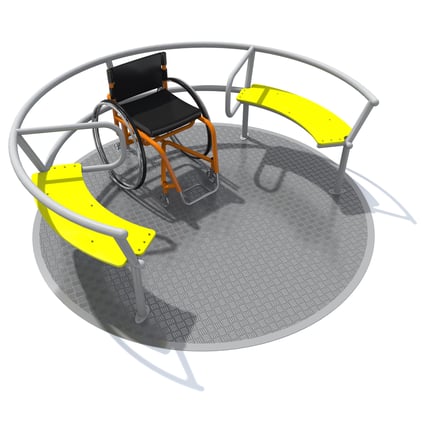

The inclusive carousel allows simultaneous use by 1 person in a wheelchair and 4 people sitting on benches.The carousel is set in motion by a person located on the outside. Construction made of galvanized steel resistant to weather conditions and intensive use. The floor is made of ribbed, non-slip aluminum sheet.

Playground device consists of

1 rotating platform,
2 double benches,
1 position for a person in a wheelchair.

Product details

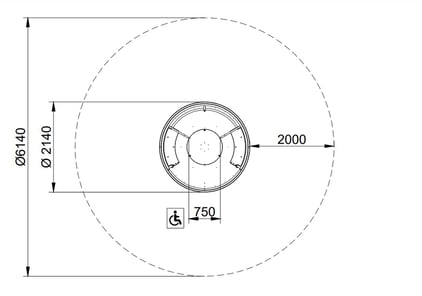

Device Dimensions (LxWxH): 2,13 x 2,13 x 0,71 m
Safety Zone: 6,14 x 6,14 m
Free Fall Height: 1,0 m
A certificate confirming compatibility with norm EN 1176
Differences in dimensions not exceeding +/- 5% are allowed.

Materials

The construction made of galvanized steel resistant to weather conditions and intensive use (profile 60x40x2, profile 40x40x2, pipe diameter 42.4x2, pipe diameter 33.7x2),
The platform is made of ribbed aluminum sheet, 3.00 mm thick,
Seats are made of PE board, 15.00 mm thick,
Carousel bearing: a system of ball and thrust bearings.

All images are for illustrative purposes only and may vary from the actual product.
