    Inclusive Playset DOMETO-I 1-2

    Code: K512-I

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    download pdf PDF download dwg DWG
    3D Models:
    pobierz dwg DWG pobierz 3ds 3DS pobierz SKP SKP

    Description

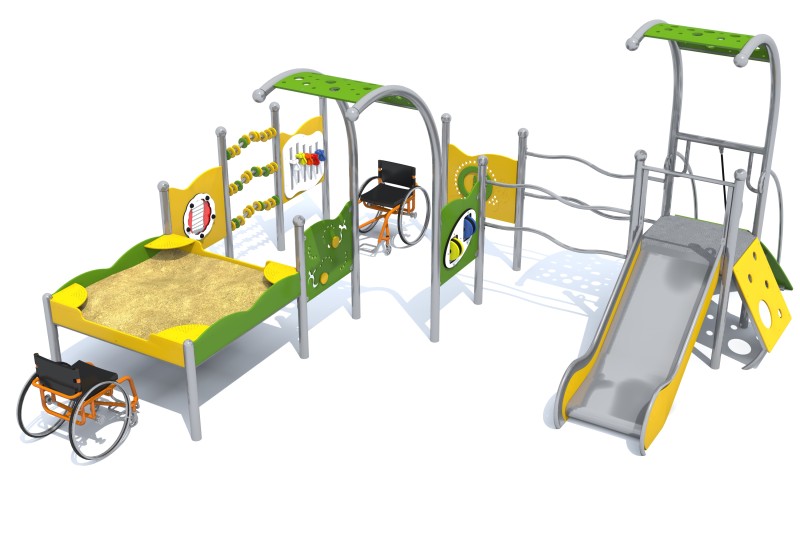

    An integrated set with vibrant colours consisting of one tower, two latticed roofs, one slide, one entrance ramp with ropes and curved handrails for climbing, an inclined climbing wall with holes, a sensory board with two colourful drums that produce maraca sounds, sensory board with five tubular chimes that produce sound, a sensory board with a rotating wheel that produces rain sounds, a sensory board with a clock, a sensory board with sliding elements, an abacus, and a sandbox with screens. The set has a snail-like design aesthetic. The construction is made of stainless steel, resistant to weather conditions and heavy use, with welded construction (the use of a clamp is not allowed). The structural pipes (including two bent pipes) are finished with spherical decorative elements resembling snail antennae. The floor is made of HPL with an anti-slip texture, ensuring user safety and preventing overheating in the sun and easy freezing in winter.

    Playground device consists of

    • 16 structural pipes (including two bent pipes) finished with spherical decorative elements resembling snail antennae; the pipes must form a single unit (without joints),
    • 1 tower with a platform and 2 curved latticed roofs,
    • 1 slide made entirely of stainless steel (slide, sides, and handrails) with sides finished with HDPE sheet,
    • 1 entrance ramp with round overlays, a rope, and handrails for climbing,
    • 1 inclined climbing wall with holes,
    • 1 entrance ladder made of stainless steel,
    • 1 platform with an anti-slip texture made of HPL,
    • 1 sensory board with two colorful drums that produce maraca sounds,
    • 1 sensory board with five tubular chimes that produce sound,
    • 1 sensory board with a rotating wheel that produces rain sounds,
    • 1 sensory board with a clock,
    • 1 sensory board with sliding elements,
    • 1 abacus,
    • 1 sandbox with four screens.

    Product details

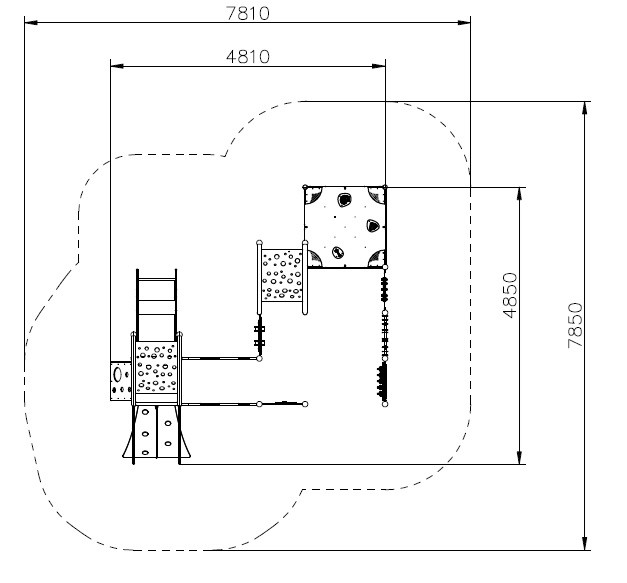

    • Device dimensions (LxWxH): 4.86 x 4.23 x 2.80 m
    • Safety zone: 7.85 x 7.23 m
    • Free fall height: 0.9 m

    Dimensional differences of up to +/- 5% are acceptable.

    Materials

    • The structure and additional elements (handrails, handles, brackets, etc.) are made of stainless steel AISI 304, with pipes of diameters 76.1 x 2.0 mm (including two bent pipes), 42.4 x 3.6 mm, and 33.7 x 2.0 mm, and profiles: 40 x 40 x 2.0 mm; the pipes must form a single unit (without joints),
    • The slide, sides, and handrails of the slide are made of stainless steel,
    • The platform and the sandbox bottom are made of HPL with a 10 mm thickness anti-slip texture,
    • The roof, entrance ramp, parts of the slide sides, and climbing wall are made of three-layer, colored HDPE with a thickness of 15 mm.

    All images are for illustrative purposes only and may vary from the actual product.
