    Tunnel KANALO 350

    Code: LL-MO-207

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    pobierz pdfPDF pobierz dwgDWG
    3D Models:
    pobierz dwgDWG

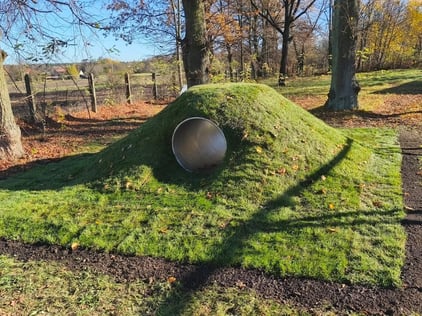

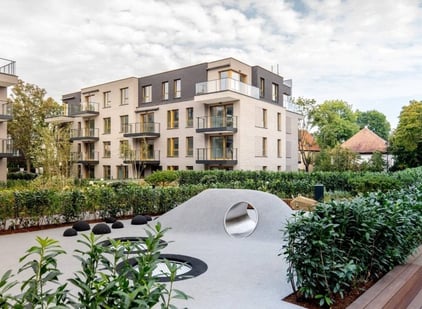

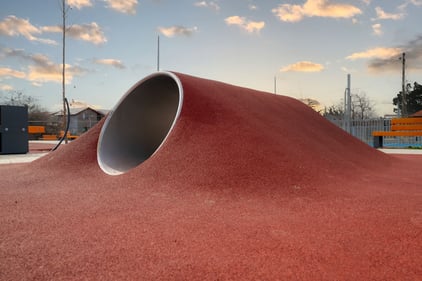

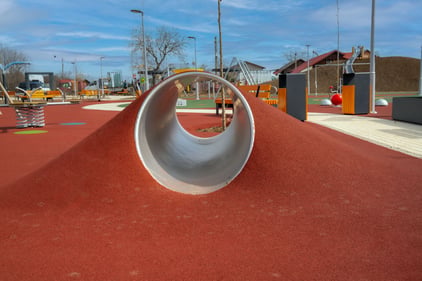

    A tunnel tube in the shape of a circular pipe is designed for installation inside natural or formed embankments. Length of slide 3,50m, diameter 0,85m. Entrance and exit cut perpendicularly to the axis of the tunnel. It’s fully made of matt stainless steel.

    Playground device consists of

    • 1 tunnel tube

    Product details

    • Product dimensions (LxWxH): 3,50 x 0,85 x 0,85 m
    • Safety area (LxW): 6,50 x 3,78 m
    • Length between tunnel feet: L1 = 2,67 m
    • Tunnel length: L2 = 3,50 m
    • Safety is at the end of the tunnel: 1,5 m
    • Weight: 150 kg


    • matt stainless steel (0304), the thickness of steel plate 2mm
    • foundation legs made of stainless steel

    Dimension tolerance is +/- 5%
