    KANALO 300

    Code: LL-MO-205

    Description

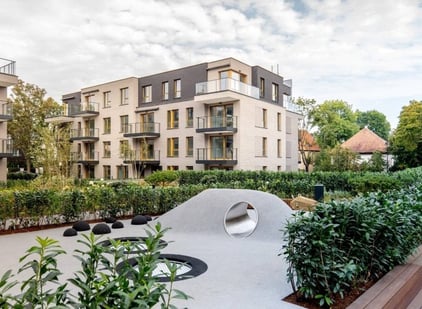

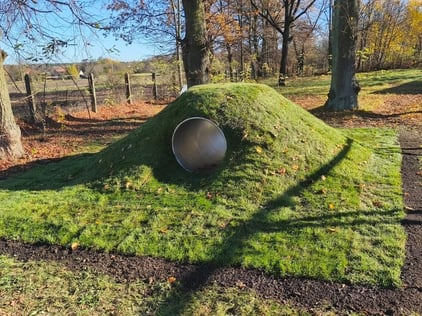

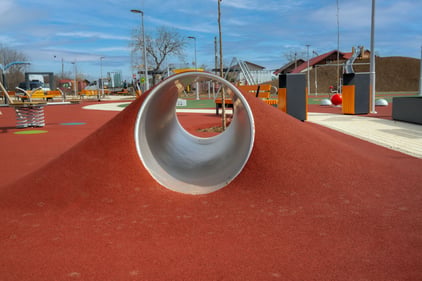

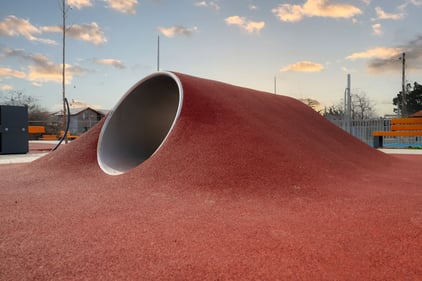

    A tunnel tube in the shape of a circular pipe is designed for installation inside natural or formed embankments. Length of slide 3,00m, diameter 0,85m. Entrance and exit cut perpendicularly to the axis of the tunnel. It’s fully made of matt stainless steel.

    Product consists of:

    • 1 tunnel tube

    Product details:

    • Product dimensions (LxWxH): 3,00 x 0,85 x 0,85 m
    • Safety area (LxW): 6,00 x 3,78 m
    • Length between tunnel feet: L1 = 2,17 m
    • Tunnel length: L2 = 3,00 m
    • Safety is at the end of the tunnel: 1,5 m
    • Weight: 130 kg

    Materials

    • matt stainless steel (0304), the thickness of steel plate 2mm
    • foundation legs made of stainless steel

    Dimension tolerance is +/- 5%
