Slide GLITI 2,29m

Code: LL-MO-001

Download files

Technical data sheet:

PDF

DOC

Technical drawings:

PDF

DWG

3D Models:

DWG

To receive the 3D file, send a message:

This product you can also find in sections:

Description

Description

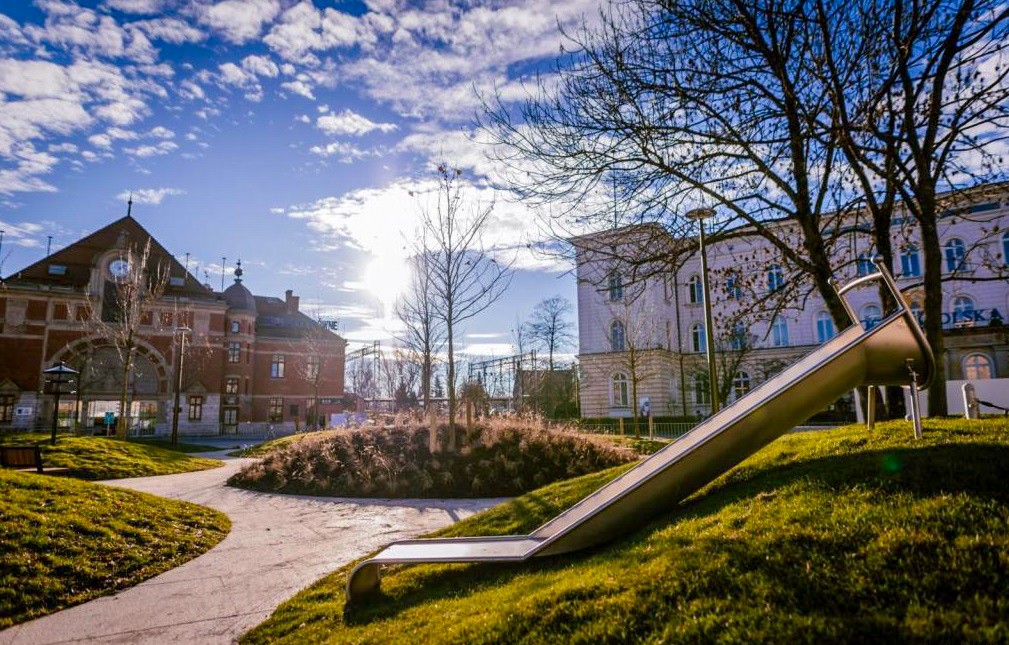

The ground slide is designed for installation on natural or formed embankments. Length of slide 2,29 m, the width of slide 0,5 m. It’s fully made of matt stainless steel. This slide should be mounted on an embankment that height is 0,6 – 0,85m.

Playground device consists of

1x straight slide
2x foundation legs at the start section to embed
2x foundation legs at the finish section to embed

Product details

Height of embankment: L1= 0,6-0,85 m
Length of embankment slope: L2= 1,25 m
Dimensions (LxWxH): 2,29 x 0,57 x 0,93 m
Safety area on the end of the slide: a= 1,5 m
Weight: 59 kg
A certificate confirming compatibility with norm EN 1176
Differences in dimensions no more than +/- 5% are acceptable

Materials

Matt stainless steel (0304), the thickness of steel plate 2mm
Foundation legs made of stainless steel
Number of foundation concrete blocks: 2 pcs. (0,4 x 0,6 x 0,4m) – to be prepared on-site. In case of the loose surface of the hill, foundation blocks should be installed min. 0,4m under zero level

All images are for illustrative purposes only and may vary from the actual product.
