    Slide ELIRI 2,29m

    Code: LL-MO-021

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    download pdf PDF download dwg DWG
    3D Models:
    pobierz dwg DWG

    This product you can also find in sections:

    Description

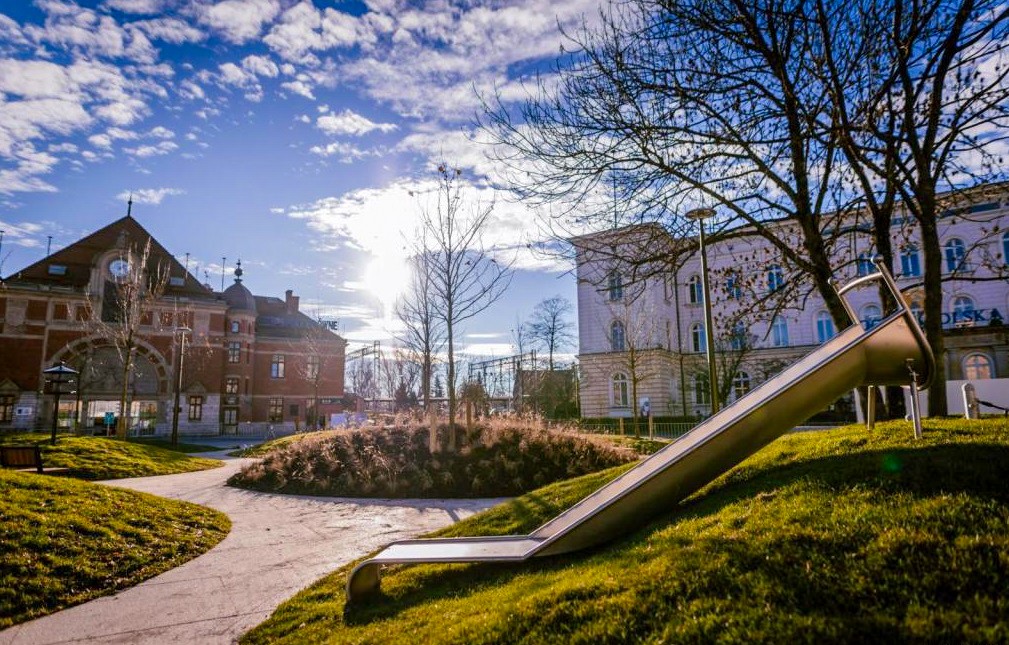

    The ground slide is designed for installation on natural or formed embankments. Length of slide 2,29 m, the width of slide 1,0 m. It’s fully made of matt stainless steel. This slide should be mounted on an embankment that height is 0,6 - 0,85 m.

    Playground device consists of

    • 1x straight slide
    • 2x foundation legs at the start section to embed
    • 2x foundation legs at the finish section to embed

    Product details

    • Height of embankment: L1 = 0,6-0,85 m
    • Length of embankment slope: L2 = 1,25 m
    • Dimensions (LxWxH): 2,29 x 1,11 x 0,93 m
    • Safety area on the end of the slide: a = 1,5 m
    • Weight: 91 kg
    • A certificate confirming compatibility with norm EN 1176
    • Differences in dimensions no more than +/- 5% are acceptable

    Materials

    • Matt stainless steel (0304), the thickness of steel plate 2mm
    • Foundation legs made of stainless steel
    • Number of foundation concrete blocks: 2 pcs. (0,4 x 1,15 x 0,4m) – to be prepared on-site. In case of the loose surface of the hill, foundation blocks should be installed min. 0,4m under zero level

    All images are for illustrative purposes only and may vary from the actual product.
