    PIRAMIDO T 35

    Code: CR-LI-PT35

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    download pdf PDF download dwg DWG
    3D Models:
    pobierz dwg DWG

    Description

    Climbing pyramid with a central mast standing on a special mounting plate (mast is not concreted in the ground), two platforms and three guy lines. The pyramid has rope tension adjustment using safe tensioners and safety rope (protection in case of breaking or cutting the construction rope) at each anchor. For the safety of users, all ropes are made of polyester and have a thickness of  20 mm. Crossing ropes are connected by means of factory-pressed aluminium balls, which do not require any screws to be screwed into them (which weakens the ropes and poses a risk of injury to users).

    Presented drawing of the product is an integral part of the description - the product must be consistent with the presented appearance.

    The device includes

    • 1 construction mast with a diameter of 114 mm finished with a plug with eyelets for interlacing construction ropes,
    • 1 mounting plate on which the mast is placed (concreting masts in the ground is not allowed),
    • Multi-directional rope net, where both the construction ropes and the internal net, for safety reasons, are made of polyester and have a thickness of 20 mm. The ropes of the internal network evenly fill the entire space of the pyramid (not only the surface of the solid and flat internal platforms). Ropes can be made in 6 different colours.
    • Rope connectors, located in the places where the ropes cross, in the form of, for example, factory-pressed aluminium balls that do not require any screws to be screwed into the ropes (which weakens the ropes and poses a risk of injury to users). It is also not allowed to use plastic connectors or wire braid (e.g. in the form of cloverleaf, forgings, etc.),
    • 2 flexible platforms in black colour with holes through which the construction mast passes. The platforms are made of a 3-layer rubber-textile material with a thickness of 10 mm.
    • Safe rope tensioners that connect all construction ropes to anchors and allow rope tension to be adjusted.
    • Decorative flag 500mm high placed on the top of the mast.
    • Foundation anchors with additional safety ropes (protection in case of breaking or cutting one of the construction ropes). All foundations are placed outside the pyramids - not in the space between the pyramids.

    Product details

    • Device dimensions (LxWxH): 2,30 x 2,65 x 3,50 m
    • Hight of flag: 0,50 m
    • Safety area: 5,30 x 5,65 m
    • Maximum fall height: 0,30 m
    • Rope thickness: 20 mm (both construction ropes and internal ropes)
    • Construction mast diameter: 114 mm, mast wall thickness: 3-5 mm.
    • Number of users: 13 people

    Dimensional differences not greater than +/- 5% are allowed

    Materials

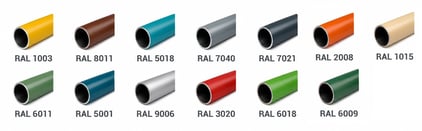

    • Mast made of steel pipes, protected against corrosion and powder coated (10 colours to choose from). Mast diameter: 114 mm, mast wall thickness: 3-5 mm. For static reasons, concreting the mast in the ground is not allowed. Each mast is finished with a plug with eyelets for interlacing construction ropes.
    • All ropes, i.e. both structural and internal, for safety reasons have a thickness of 20 mm and are made of reinforced polyester rope: they are made of a core and 6 reinforced strands entwining it. The ropes are UV resistant and flame retardant - which ensures safety and colour stability for many years. The ropes of the internal network evenly fill the entire space of the pyramid (not only the surface of the solid and flat internal platforms). Ropes can be made in 6 different colours.
    • Rope connectors, located where the ropes cross, in the form of factory-pressed aluminium balls or connectors that do not require any screws to be screwed into the ropes (which weakens the ropes and poses a risk of injury to users). It is also not allowed to use plastic connectors or wire braid (e.g. in the form of cloverleaf, forgings, etc.), which guarantees the safety of users - eliminates the possibility of injury.
    • 2 flexible platforms in black colour with holes through which the construction mast passes. The platforms are made of a 3-layer rubber-textile material with a thickness of 10 mm. The platforms are connected to the ropes with aluminium connectors.
    • The net is fastened to the ground using tension-regulating screws and anchors placed in concrete foundations. Construction ropes are secured in case of breaking or cutting with an additional safety rope.
    • Decorative flag located on the top of the mast is made of HDPE board, structure of the flag is made of galvanized steel.
