Stepper I

Code: MD-FS-003

The Stepper I is popular outdoor gym equipment to builds the strength of thighs, calves and buttocks. Improves functionality of the cardiovascular system and motor coordination.


To do exercise stand on the steps and grab the handle with your hands. Press your feet on the steps as if you were walking in place. Keep your back in an upright position during the exercise.


Technical details:

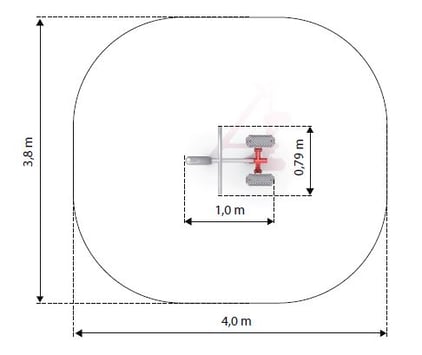

  • Dimensions (LxWxH): 1 x 0,79 x 2,02 m
  • Safety zone: 4 x 3.8 m
  • Compatibility with norm EN 1176 confirmed by the certificate
  • Can be painted in any colour from the RAL palette


Materials:

  • Construction is made of powder painted steel and protected against corrosion.
  • Steps are made of aluminium.
  • Handles are made of pipe ended with rounded decorative elements and profiled to ensure ergonomics and user safety.
  • Construction is welded and has no plastic ends except for bearing connections where it is possible to maintain/repair.

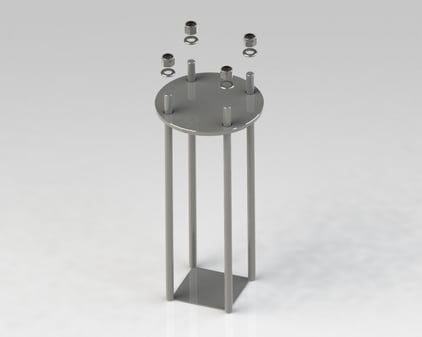

  • The device is mounted on a supporting pole, that is attached to the ground by the flange.
  • The flange is screwed with M16 screws into anchor fixed in the concrete. Anchoring nuts are secured against unscrewing.


Differences in dimensions no more than +/- 5% are acceptable.

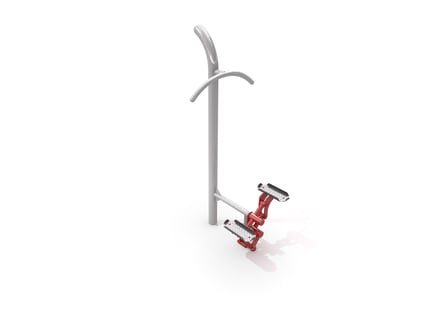

The presented drawing is for illustrative purposes. Actual product may be slightly different.

Technical data sheet:
PDF
Technical drawings:
DWG
3D Models:
DWG
