Pylon

Code: MD-FP-001

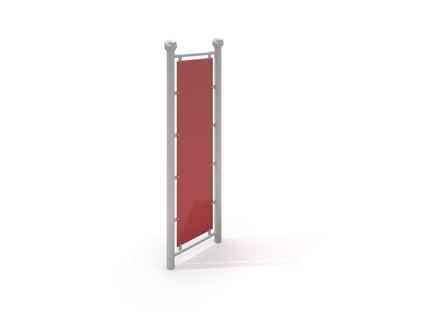

The Pylon additional equipment for outdoor gyms. Large whiteboard for placing description of devices, exercise instructions, additional information.

Technical details:

  • Dimensions (LxWxH): 0,6 x 0,22 x 1,77 m

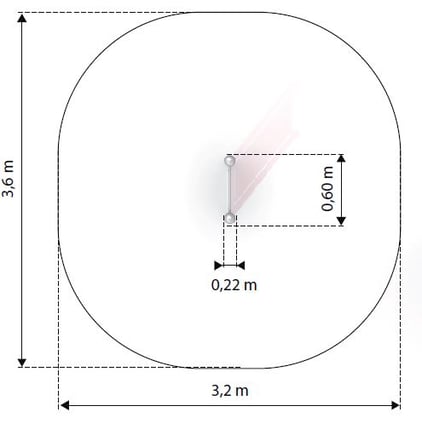

  • Safety zone: 3,2 x 3,6 m
  • Certificate confirming compatibility with norm EN 1176
  • Device can be painted in any colour from the RAL palette

Materials:

  • Construction is made of powder painted steel protected against corrosion.
  • Construction is welded and has no plastic ends except for bearing connections where it is possible to maintain / repair.

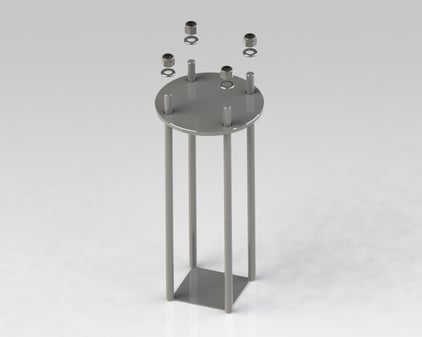

  • Device is mounted on a supporting pole, that is attached to the ground by flange.
  • Flange is screwed with M16 screws into anchor fixed in the concrete. M16 anchoring nuts are secured against unscrewing.

Differences in dimensions no more than +/- 5% are acceptable.

Presented drawing should be treated as illustrative. It may be slightly different from the actual product.
