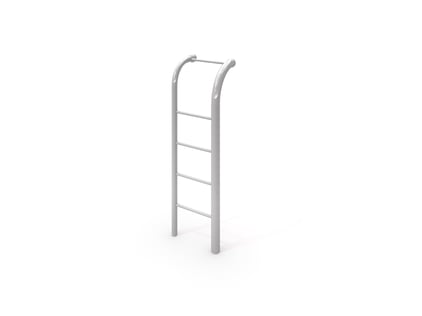

Ladder I

Code: MD-FS-025

The Ladder I outdoor gym equipment for stretching Develops flexibility the muscles of the arms, back, chest and abdomen. It improves flexibility, strength and coordination.

To do exercise grab the highest bar with your hands, pull yourself up so that your head is above the bar level. Support an upright leg against any crossbar. Lean towards the foot, thus stretching the leg muscles.

Technical details:

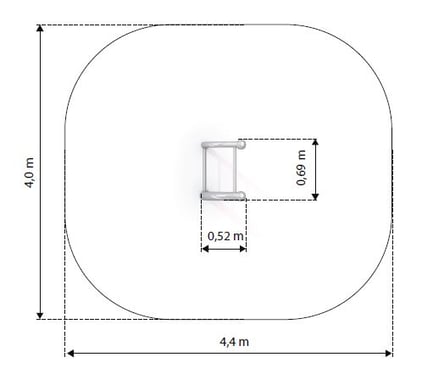

  • Dimensions (LxWxH): 0,52 x 0,69 x 1,89 m
  • Safety zone: 4,4 x 4,0 m
  • Compatibility with norm EN 1176 confirmed with the certificate
  • Can be painted in any colour from the RAL palette

Materials:

  • Construction is made of powder painted steel protected against corrosion.
  • Construction is welded and has no plastic ends except for bearing connections where it is possible to maintain/repair.

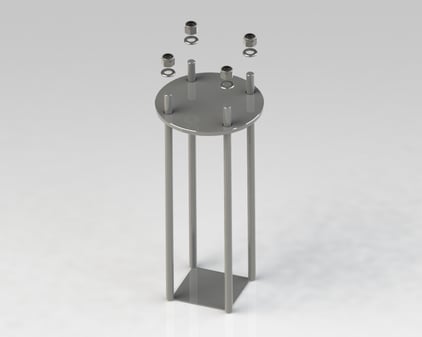

  • The device is mounted on a supporting pole, that is attached to the ground by the flange.
  • The flange is screwed with M16 screws into anchor fixed in the concrete. Anchoring nuts are secured against unscrewing.

Differences in dimensions no more than +/- 5% are acceptable.

The presented drawing is for illustrative purposes only. Actual product may be slightly different.

Picture:
JPG
Technical data sheet:
PDF
Technical drawings:
DWG
3D Models:
