    CHEST PRESS + CHEST PULL

    Code: KS-FD-003

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    pobierz pdfPDF pobierz dwgDWG
    3D Models:
    pobierz dwgDWG

    Description

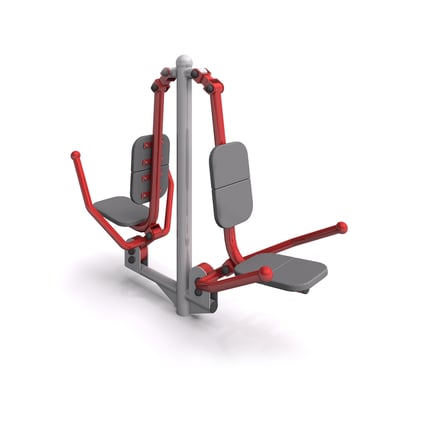

    The Chest Press + The Chest Pull multi-funcional outdoor gym set develops strength of the chest, arms, back and abdominal muscles. Improves stamina and the functioning of the cardiopulmonary system. Available in two versions: Comfort and Standard one. Comfort version means that seat and backrest are covered by polyurethane foam (PU system). In the result users never have a feeling of hot touch during very sunny days, or cold during frost. The key point of this version is to provide everyone optimal comfort for exercise. If you prefer mainly resistance for vandalism the best option is to choose version Standard with metal seats and backrests

    To do exercise sit down on the seat, grab the handles with your hands. Push the handles forward until the elbows are straight or pull the handles to yourself. Keep your back upright.

    Product details

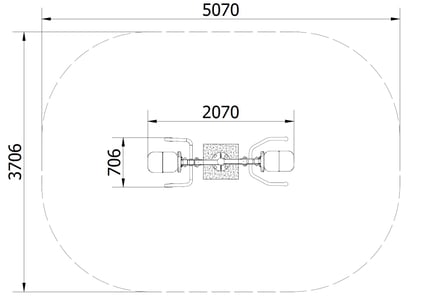

    • Dimensions (LxWxH): 2,43 x 0,7 x 1,6 m
    • Safety zone: 5,43 x 3,70 m
    • The number of anchors: 1
    • Certificate confirming compatibility with norm EN 16630
    • Device can be painted in any colour from the RAL palette

    Materials

    • Construction is made of powder painted steel protected against corrosion
    • Handles are made of pipe ended with rounded decorative elements and profiled to ensure ergonomics and user safety.
    • Construction is welded and has no plastic ends except for bearing connections where it is possible to maintain / repair.
    • Device is mounted on a supporting pole, that is attached to the ground by flange.
    • Flange is screwed with M16 screws into anchor fixed in the concrete. M16 anchoring nuts are secured against unscrewing.

    Differences in dimensions no more than +/- 5% are acceptable.

    Presented drawing should be treated as illustrative. It may be slightly different from the actual product.
