    Trampoline HEXO 3A

    Code: MA-SA-62

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    download pdf PDF download dwg DWG
    3D Models:
    pobierz dwg DWG

    This product you can also find in sections:

    Description

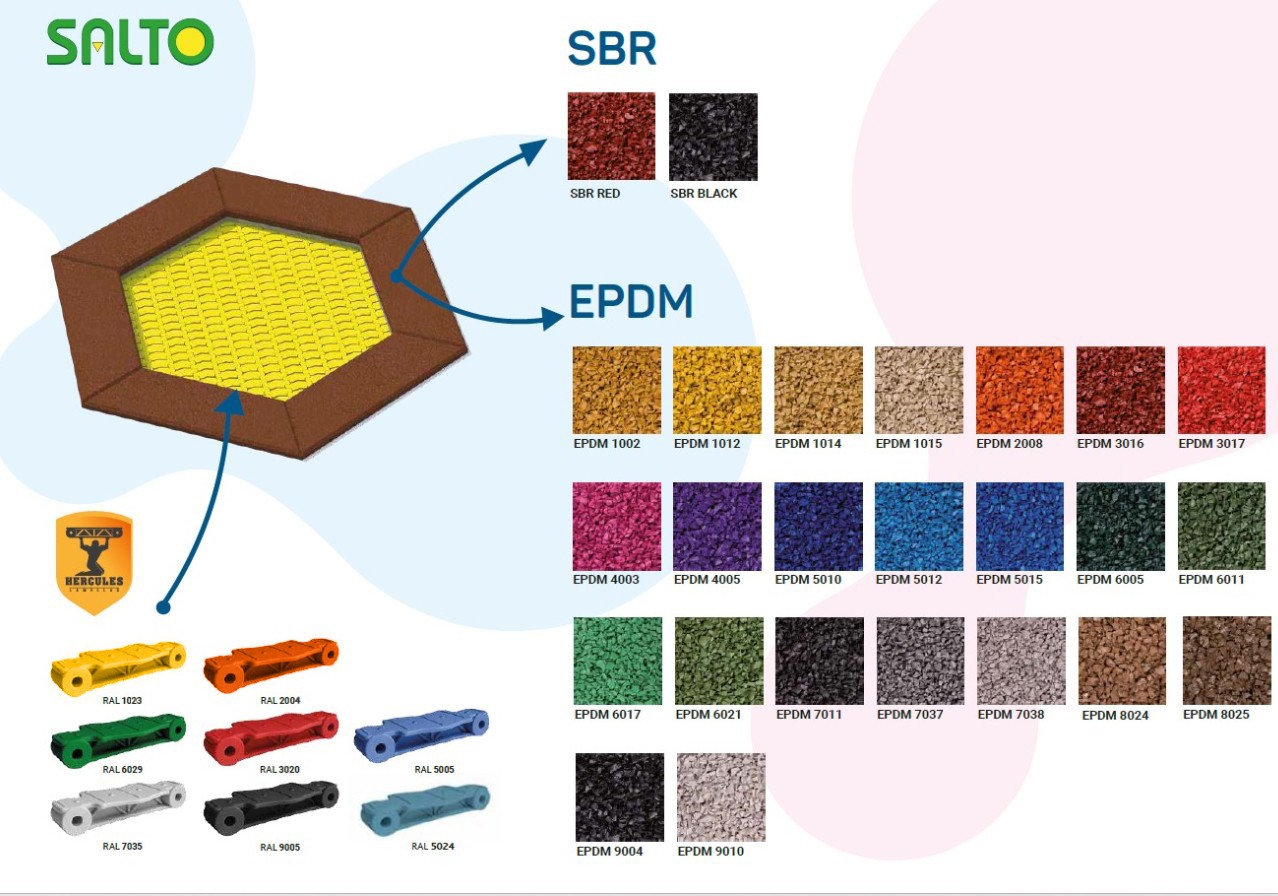

    Set of 3 trampolines intended for use on playgrounds with intensive use. The set consists of 3 Hexagonal (honeycomb) shaped trampoline. Jumping mat is made of very durable Hercules lamellas with a width of min. 37 mm, having the shape of the letter "V" and reinforced by ribs. Thanks to the unique shape of the lamellas, the spaces between the mat elements have been reduced to only 7 mm, which prevents small objects, such as keys or mobile phones, from falling into the trampoline. The mat is available in 8 colours, it is also possible to make graphics on the mat. The rubber trampoline collar is available in 2 standard colours and 23 special colours. Additionally, a decorative pattern can be made on the collar. The trampoline can be equipped with openable cover that makes it easy to clean inside.

    Warranty for trampolines covers 25 years for metal box and 3 years for lamellas.

    The set of 3 Hexagonal (honeycomb) shaped trampoline, which consist of

    • Jumping mat made of very durable elements (lamellas) with a non-slip surface in the form of alternating horizontal and circular protrusions, strung on stainless steel cable in a flexible cover,
    • Elements of the mat (lamellas) with thickenings at the ends (sleeves) - reinforcements against abrasion by the cable, ribs reinforcement, as well as a widened upper surface in the shape of letter "V" which prevents small objects from falling into the trampoline, like for example keys or mobile phones,
    • Springs fixing the mat, which are located around the perimeter of the structure - each spring is connected to one metal cord with a special reinforced eyelet (thimble) or a metal rod connecting the mat elements, which prevents the cables from abrasion during their use,
    • Rubber collar - flexible cover covering the upper part of the device,
    • Metal box structure.

    Technical details

    • Dimension: 1,7 x 4,41 m
    • Safety zone: 4,12 x 6,91 m
    • Number of users: 3 people
    • Width of the lamellas: min. 37 mm
    • Width of the gaps between lamellas: up to 7 mm
    • Free fall height: 0,90 m
    • Foundation depth: - 0,40 m
    • A certificate confirming compatibility with norm EN 1176
    • Differences in dimensions no more than +/- 5% are acceptable

    Materials

    • The jumping mat is made of very durable V-shaped polyamide elements (lamellas), with a non-slip surface in the form of alternating horizontal and round protrusions,
    • The lamellas are strung on stainless steel cables in a flexible cover,
    • Rubber collar covering upper part of the device, made of rubber granules and polyurethane glue,
    • Galvanized metal boxes.

    All images are for illustration purpose only and may vary from the actual product.
