    Playset INFANO 3

    Code: K753

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    download pdf PDF download dwg DWG
    3D Models:
    pobierz dwg DWG

    This product you can also find in sections:

    Description

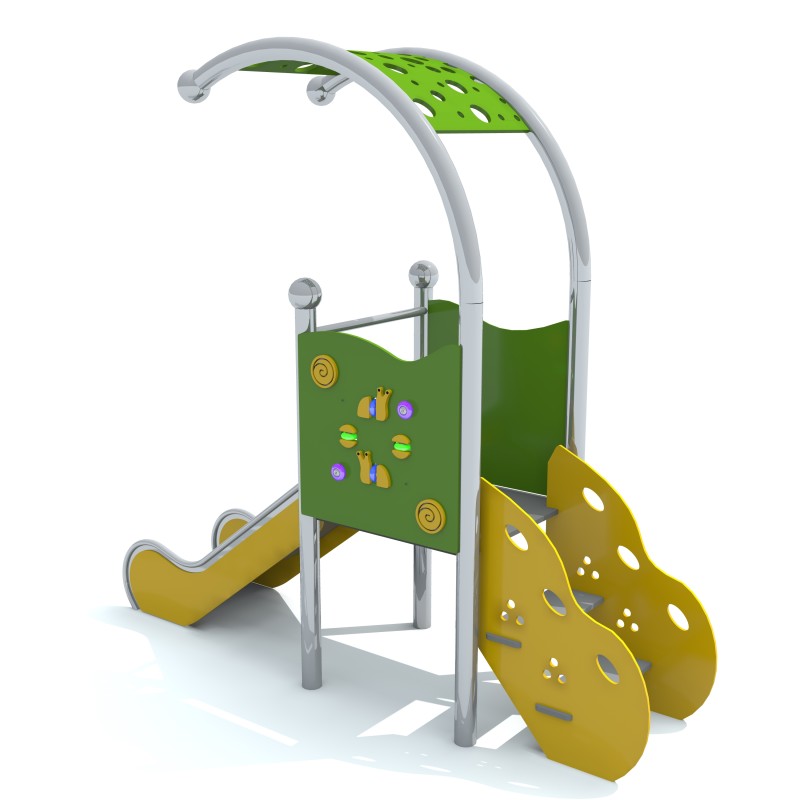

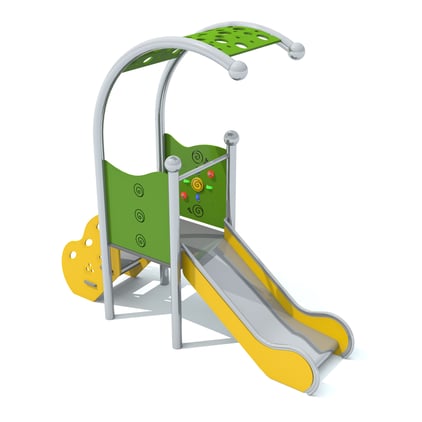

    Colourful play equipment with slide and openwork roof. The design takes its inspiration from the shape of a snail. A high-performance, weather-resistant welded stainless steel construction (no clamps used). The posts are finished with spherical decorative elements so that the appliance resembles snail horns. The walls of the slide, tower and balustrades are made of HDPE board. The floor is made of an HPL panel with an anti-slip texture, which ensures safe use and prevents it from heating in the sun and freezing easily in winter. The playground set complies with EN 1176 norm.

    Colourful playground sets dedicated to children age 1-5 years old.

    * All stainless steel Limako products are available in galvanized and powder painted version.

    Playground device consists of

    • 4 x structural pipes (including two bent pipes), finished with spherical decorative elements
    • 1 x tower with an openwork roof, 2 walls with milling cutters
    • 1 x slide with stainless steel handrails and sides finished  with HDPE panel
    • 1 x steps with cut-out handles

    Product details

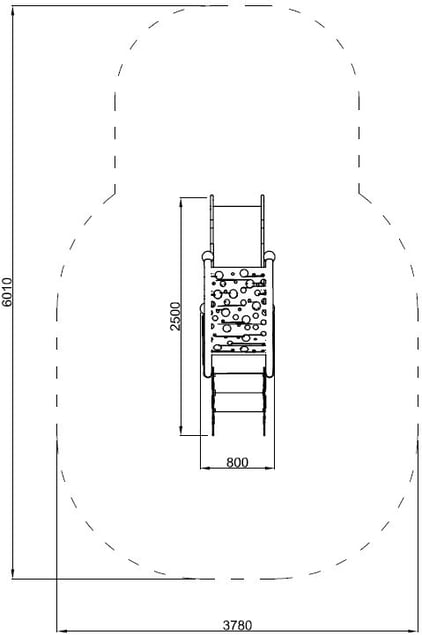

    • Dimensions: 2,50 x 0,80 x 2,00 m
    • Safety area: 6,01 x 3,78 m
    • Free fall height: 0,59 m
    • The height of the platform: 0,59 m
    • Age: 1-5
    • A certificate confirming compatibility with norm EN 1176

    Materials

    • Structure and additional elements (handrails, handles, brackets, etc.) are  made of stainless steel AISI 304
    • Pipe diameter 76.1 x 2.0mm (including two bent pipes), 33.7 x 2.0mm and 25.0 x 2.0mm
    • Profiles: 40 x 40 x 2.0 mm
    • 10mm thick HPL platform with non-slip texture
    • The sides of the slide, tower and balustrades are made of 15 mm thick, 3 layers coloured HDPE plastic

    All images are for illustration purpose only and may vary from the actual product.
