Playset LUDO OCEAN 8-1

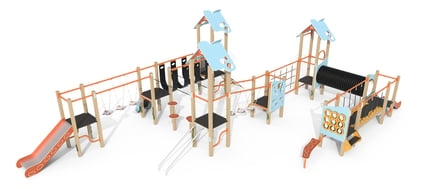

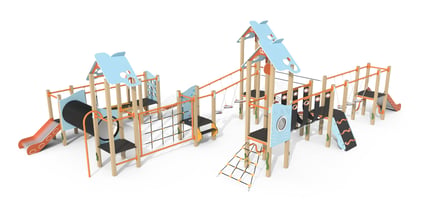

LUDO OCEAN 8-1 Playset is an ocean-inspired playground structure that transforms the playground into an exciting underwater adventure world for young explorers. The playset includes, among other features, eight towers with platforms, two slides, two climbing ramps, two chain bridges, a rubber belt bridge and a rope bridge, a tunnel connecting the platforms, a rope climbing wall, an activity panel with a window, an activity panel with eight discs that emit colourful light effects when set in motion, and a bench.The structure is made of S235 steel protected against corrosion by galvanizing and powder coating. The slide is made of stainless steel. The activity panels and decorative elements are manufactured from HDPE. The platforms and step are made of Hexa HPL panels.

• 32 structural posts
• 1 panel with 8 wheels that emit colourful light when set in motion: 5 blue (water drops), 1 green, 1 purple and 1 pink (fish)
• 1 panel with a transparent window and marine engravings
• 1 panel with a “tic-tac-toe” game (shells and starfish)
• 6 towers with platforms
• 2 towers with platforms and roofs
• 25 handrails
• 2 straight slides
• 1 slide with handrails
• 1 access climbing ramp with 3 steps (octopus tentacles)
• 1 rope access climbing ramp
• 1 fireman’s pole
• 1 rope climbing wall
• 2 access steps
• 2 chain-suspended bridges connecting two platforms (3 shells on each bridge)
• 1 bridge (4 steps/mushrooms) between two platforms
• 1 walkway bridge connecting two platforms
• 1 bridge made of rubber straps stabilized with chains, connecting two platforms
• 1 tunnel connecting two platforms
• 7 individual access rungs
• 1 bench
• Decorative elements (seaweed, air bubbles, octopus)

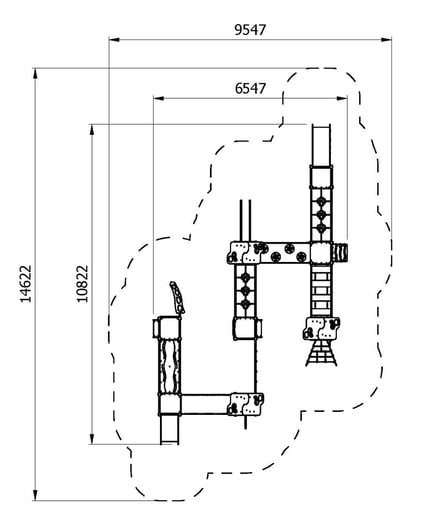

• Dimensions (LxWxH): 6,55 x 10,82 x 3,2 m
• Safety area (LxW): 9,55 x 14,62 m
• Maximum fall height: 1,41 m
• The height of the platform: 0,59; 0,9 m
• Age group: 3+
• Number of users: 57
• Dimensional tolerance: +/- 5%

• The structure is made of S235 carbon steel, galvanized and powder-coated, with 80 x 80 mm posts and a 2 mm wall thickness.
• The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
• The panel with decorative elements is made of 15 mm thick HDPE, with the central window made of 5 mm thick transparent polycarbonate sheet.
• The panel with decorative elements is made of 15 mm thick HDPE, with coloured semi-transparent elements made of 8 mm thick tinted plexiglass sheet.
• The panel is made of 15 mm thick HDPE, with movable elements and LUMO illuminated wheels.
• The slide is made of 1.5 mm thick stainless steel sheet with side panels made of 15 mm thick HDPE.
• The slide with handrails is made of AISI 304 stainless steel tube with a diameter of 42.4 mm.
• The rope climbing ramp is made of reinforced black polypropylene rope with a diameter of 16 mm. Connectors made of plastic and aluminium are used.
• The climbing ramp is made of 10 mm thick Hexa HPL board, with climbing elements and side panels made of 15 mm thick HDPE.
• The steps are made of 10 mm thick Hexa HPL board, with side panels made of 15 mm thick HDPE.
• The fireman’s pole, a bent tube, is made of S235JR steel, with a tube diameter of 42.4 mm and a 2 mm wall thickness, powder-coated.
• The handrails are made of S235JR steel with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.
• The decorative elements are made of 15 mm thick HDPE boards.
• The chain bridge consists of steps made of HDPE, with 6 mm diameter stainless steel chains.
• The rope bridge consists of a floor made of 10 mm thick Hexa HPL board. The bridge frame is made of S235 carbon steel with an 80 x 80 mm profile and a 2 mm wall thickness, powder-coated, with 4 mm thick steel sheet elements. Decorative elements are made of 15 mm thick HDPE. The bridge includes reinforced black polypropylene ropes with a diameter of 16 mm, aluminium connectors, and handrails made of S235JR steel tubes with a diameter of 42.4 mm and a wall thickness of 2 mm, powder-coated.
• The strap bridge is made of EPDM rubber straps with a thickness of 10–12 mm. The openings are secured and reinforced with 15 mm thick HDPE elements. The handrails are made of S235JR steel tubes with a diameter of 42.4 mm and a wall thickness of 2 mm, powder-coated. The chains are 6 mm diameter AISI 316 stainless steel.
• The passage (4 steps) between two platforms has a frame made of S235JR carbon steel with an 80 x 80 mm profile and a 2 mm wall thickness, powder-coated. The steps are made of 15 mm thick HDPE.
• The bench is made of 15 mm thick HDPE, with a frame made of S235JR carbon steel tube with a diameter of 42.4 mm and a 2 mm wall thickness.
• The tunnel is made of a black corrugated PP (polypropylene) pipe with an outer diameter of approximately 68 cm, with panels entirely made of 15 mm thick HDPE.
• The rope climbing wall has a frame made of S235JR steel tube with a diameter of 42.4 mm and a 2 mm wall thickness. The net is made of reinforced black polypropylene rope with a diameter of 16 mm. Connectors made of plastic and aluminium are used.

All imager are for illustartive purposes only and may vary from the actual product.
