Code | 01-LU-711-F

Slide 1 of 3

Product features



Inter Play Studio

Design Your Playground

Download files



Technical data sheet

Technical drawings

3D Models

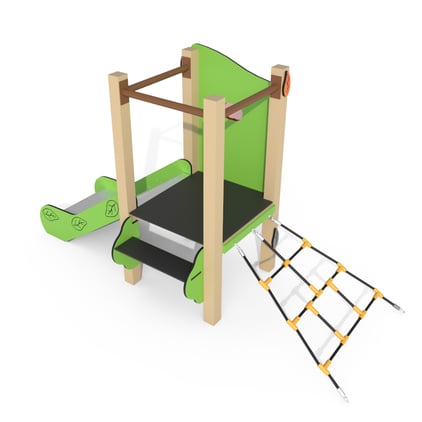

LUDO FOREST 1-1 Playset is inspired by the forest and transforms any playground into an adventurous world for young explorers, where nature encourages play, exploration, and imagination. The playset includes, among other features, a tower with a platform, a slide, a rope climbing ramp, and an activity panel with a transparent, coloured window. The structure is made of S235 carbon steel, protected against corrosion by hot-dip galvanizing and powder coating. The slide is made of stainless steel. The activity panels and decorative elements are manufactured from HDPE. The platform and step are made of Hexa HPL panels.

  • 4 structural posts

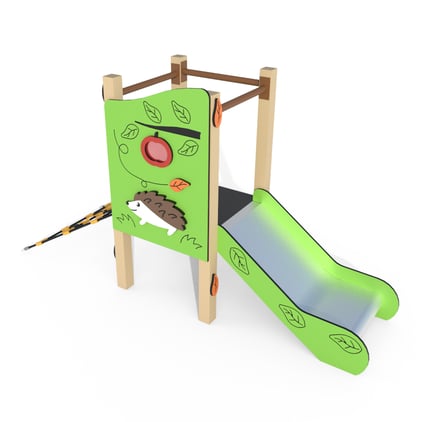

  • 1 panel with a transparent red window (apple) and decorative elements (hedgehog, leaf) with plant engravings
  • 1 tower with a platform
  • 3 handrails
  • 1 straight slide
  • 1 rope climbing ramp
  • 1 access step
  • Decorative elements (leaves)

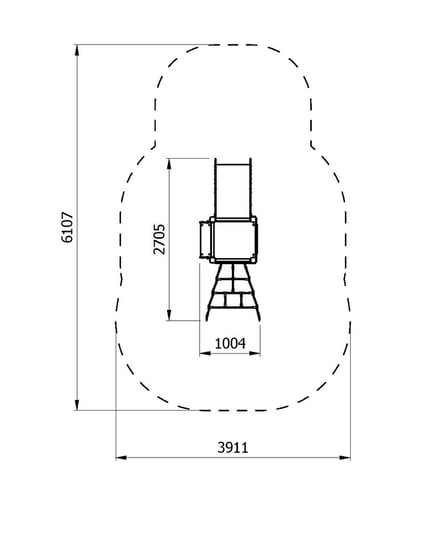

  • Dimensions (LxWxH): 1 x 2,71 x 1,52 m
  • Safety area (LxW): 3,91 x 6,11 m
  • Maximum fall height: 0,59 m
  • The height of the platform: 0,59 m
  • Age group: 3+
  • Number of users: 6
  • Dimensional tolerance: +/- 5%
  • The structure is made of S235 carbon steel, galvanized and powder-coated, with 80 x 80 mm posts and a 2 mm wall thickness.
  • The platform in graphite colour made of 10 mm thick HPL Hexa panel.
  • The panel with decorative elements is made of 15 mm thick HDPE, with the coloured semi-transparent element (apple) made of 8 mm thick tinted plexiglass sheet.
  • The slide is made of 1.5 mm thick stainless steel sheet with side panels made of 15 mm thick HDPE.
  • The rope climbing ramp is made of reinforced black polypropylene rope with a diameter of 16 mm. Connectors made of plastic and aluminium are used.
  • The step is made of 10 mm thick Hexa HPL board, with side panels made of 15 mm thick HDPE.
  • The handrails are made of S235JR steel with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.
  • The decorative elements are made of 15 mm thick HDPE boards.

All imager are for illustartive purposes only and may vary from the actual product.
