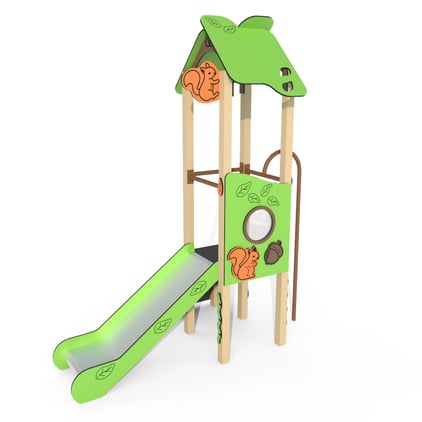

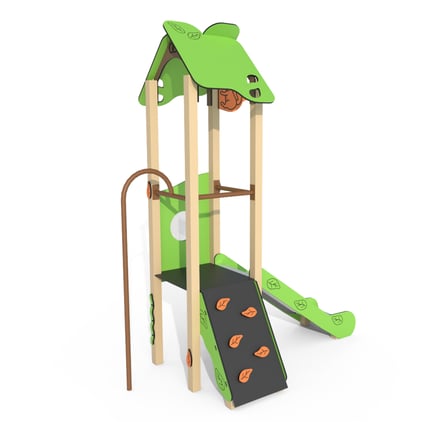

LUDO FOREST 1-2 Playset is a forest-inspired playground structure that transforms any playground into an adventurous world for young explorers, where nature encourages play, exploration, and imagination. The playset includes, among other features, a tower with a platform, a slide, a climbing ramp, and an activity panel with a transparent window. The structure is made of S235 steel protected against corrosion by galvanizing and powder coating. The slide is made of stainless steel. The activity panels and decorative elements are manufactured from HDPE. The platform and step are made of Hexa HPL panels.

  • 4 structural posts
  • 1 panel with a transparent round window, decorative elements (squirrel, acorn), and plant engravings
  • 1 tower with a platform and roof
  • 3 handrails
  • 1 straight slide
  • 1 climbing ramp with 5 climbing holds (leaves)
  • 1 fireman’s pole
  • Decorative elements (leaves, squirrel, caterpillar)

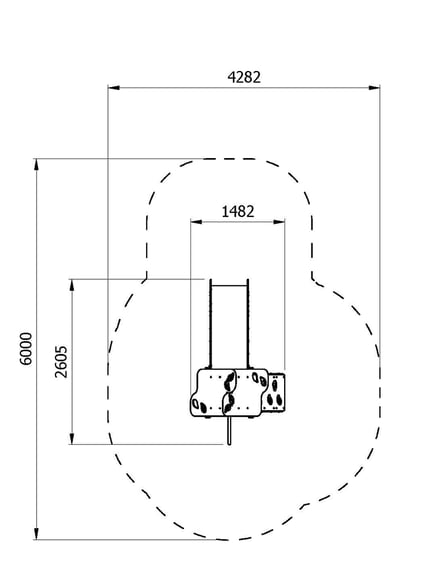

  • Dimensions (LxWxH): 1,48 x 2,61 x 3,2 m
  • Safety area (LxW): 4,28 x 6 m
  • Maximum fall height: 0,9 m
  • The height of the platform: 0,9 m
  • Age group: 3+
  • Number of users: 5
  • Dimensional tolerance: +/- 5%
  • The structure is made of S235 carbon steel, galvanized and powder-coated, with 80 x 80 mm posts and a 2 mm wall thickness.
  • The platform in graphite colour made of 10 mm thick HPL Hexa panel.
  • The panel with decorative elements is made of 15 mm thick HDPE, with the central window made of 5 mm thick transparent polycarbonate sheet.
  • The slide is made of 1.5 mm thick stainless steel sheet with side panels made of 15 mm thick HDPE.
  • The step is made of 10 mm thick Hexa HPL board, with side panels made of 15 mm thick HDPE.
  • The climbing ramp is made of 10 mm thick Hexa HPL board, with climbing elements and side panels made of 15 mm thick HDPE.
  • The fireman’s pole, a bent pipe, is made of S235JR steel, with a 42.4 mm diameter and 2 mm wall thickness, powder-coated.
  • The handrails are made of S235JR steel with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.
  • The decorative elements are made of 15 mm thick HDPE boards.

All imager are for illustartive purposes only and may vary from the actual product.
