Playset LUDO FOREST 6-1

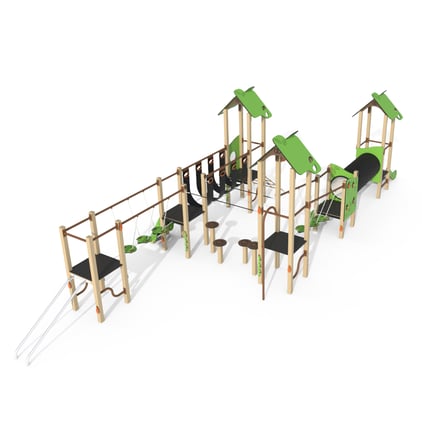

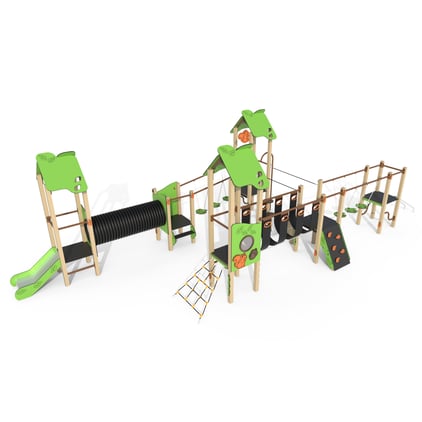

LUDO FOREST 6-1 Playset is inspired by the forest and transforms any playground into an adventurous world for young explorers, where nature encourages play, exploration, and imagination. The playset includes, among other features, six towers with platforms, two slides (a straight slide and a fireman’s pole-style slide), chain bridges, a tunnel, and an activity panel with four discs that emit colourful light effects when set in motion. The structure is made of S235 carbon steel, protected against corrosion by hot-dip galvanizing and powder coating. The slides are made of stainless steel. The activity panels and decorative elements are manufactured from HDPE. The rubber belt bridge is made of reinforced rubber strips with openings protected and strengthened using HDPE elements. The platforms and step are made of Hexa HPL panels.

• 24 structural posts
• 1 panel with 4 rotating wheels that emit colorful light when set in motion: 2 green, 1 red, 1 blue (insects)
• 1 panel with a transparent round window, decorative elements (squirrel, acorn) and plant-themed engravings
• 4 towers with platforms
• 3 towers with platforms and roofs
• 18 handrails
• 1 straight slide
• 1 slide with handrails
• 1 rope access ladder
• 1 climbing panel with 5 climbing grips (leaves)
• 1 fireman’s pole
• 1 single step for access
• 2 chain suspension bridges connecting the platforms (3 leaves on each bridge)
• 1 bridge (4 steps/mushrooms) between two platforms
• 1 bridge made of rubber straps stabilized with chains, connecting two platforms
• 1 tunnel connecting two platforms
• 6 individual access rungs
• Decorative elements (squirrels, leaves, caterpillars)

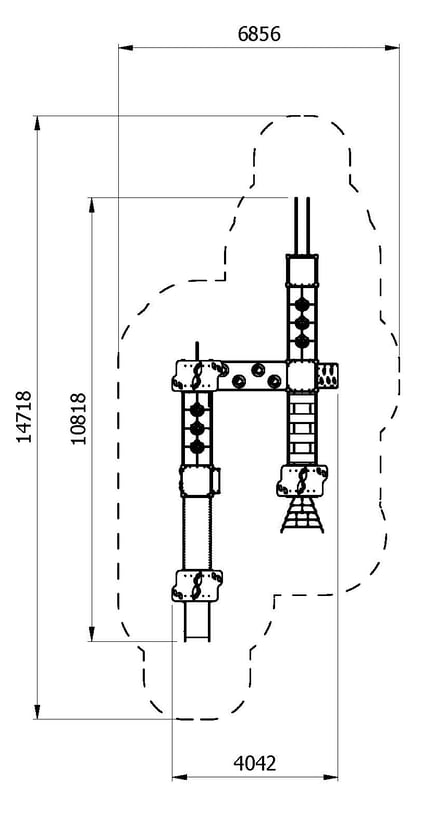

• Dimensions (LxWxH): 4,04 x 10,82 x 3,2 m
• Safety area (LxW): 6,86 x 14,72 m
• Maximum fall height: 0,9 m
• The height of the platform: 0,59; 0,9 m
• Age group: 3+
• Number of users: 40
• Dimensional tolerance: +/- 5%

• Structure made of galvanized black steel S235, powder-coated, with posts made of 80 × 80 mm profiles and a wall thickness of 2 mm.
• The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
• Panel with decorative elements made of 15 mm thick HDPE board, with a central window made of transparent polycarbonate sheet, 5 mm thick.
• Insect panel with movable elements and illuminated LUMO components, made of 15 mm thick HDPE board.
• Slide made of stainless steel sheet, 1.5 mm thick, with side panels made of 15 mm thick HDPE.
• Rail slide made of AISI 304 stainless steel tube with a diameter of 42.4 mm.
• Rope climbing ramp made of black reinforced polypropylene rope with a diameter of 16 mm. Plastic and aluminium connectors used.
• Climbing ramp made of 10 mm thick HPL Hexa board, with climbing elements and side panels made of 15 mm thick HDPE.
• Step (stair) made of 10 mm thick HPL Hexa board, with side panels made of 15 mm thick HDPE.
• Fireman’s pole, bent tube made of S235JR steel, tube diameter 42.4 mm, wall thickness 2 mm, powder-coated.
• Handrails made of S235JR steel tube with a diameter of 33.7 mm and wall thickness of 2 mm, powder-coated.
• Decorative elements made of 15 mm thick HDPE boards.
• Chain bridges consisting of steps made of HDPE, with 6 mm diameter stainless steel chains.
• Rubber strap bridge made of EPDM rubber strips with a thickness of 10–12 mm. The openings are secured and reinforced with 15 mm thick HDPE elements. Handrails made of S235JR steel tube with a diameter of 42.4 mm and wall thickness of 2 mm, powder-coated. Chains with a diameter of 6 mm made of AISI 316 stainless steel.

All imager are for illustartive purposes only and may vary from the actual product.
