Playset LUDO FOREST 8-1

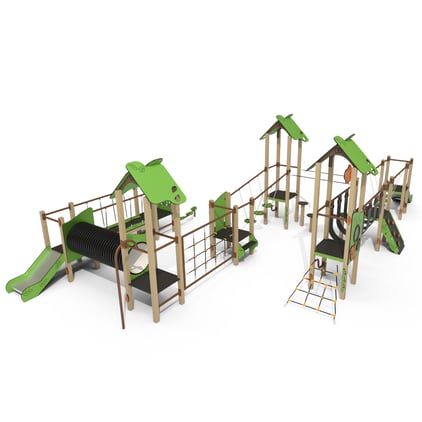

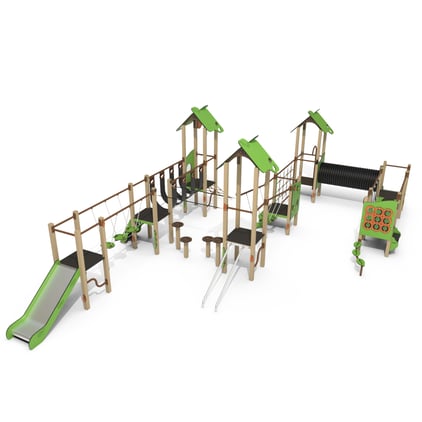

LUDO FOREST 8-1 Playset is inspired by the forest and transforms any playground into an adventurous world for young explorers, where nature encourages play, exploration, and imagination. The playset includes, among other features, eight towers with platforms, three slides (two straight slides and one fireman’s pole-style slide), two chain bridges, a rubber belt bridge, a tunnel, an activity panel with four discs that emit colourful light effects when set in motion, and a tic-tac-toe panel.The structure is made of S235 carbon steel, protected against corrosion by hot-dip galvanizing and powder coating. The slides are made of stainless steel. The activity panels and decorative elements are manufactured from HDPE. The rubber belt bridge is made of reinforced rubber strips with openings protected and strengthened using HDPE elements. The platforms and step are made of Hexa HPL panels.

• 32 structural posts
• 1 panel with 4 rotating wheels that emit colorful light when set in motion: 2 green, 1 red, 1 blue (insects)
• 1 panel with a transparent round window, decorative elements (squirrel, acorn) and plant-shaped engravings
• 1 panel with a “tic-tac-toe” game (leaves, acorns)
• 5 towers with platforms
• 3 towers with platforms and roofs
• 25 handrails
• 2 straight slides
• 1 slide with handrails
• 1 access climbing ramp with 5 climbing grips (leaves)
• 1 rope access ladder
• 1 fireman’s pole
• 2 individual entrance steps
• 2 chain suspension bridges connecting two platforms (3 leaves/steps on each bridge)
• 1 bridge (4 steps/mushrooms) between two platforms
• 1 rope walkway bridge connecting two platforms
• 1 bridge made of rubber straps stabilized with chains, connecting two platforms
• 1 tunnel connecting two platforms
• 7 individual access rungs
• 1 bench with 3 seats (leaf-shaped)
• Decorative elements (squirrels, caterpillars, leaves)

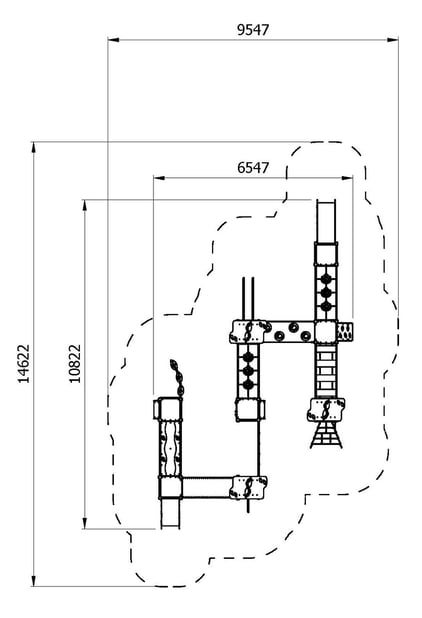

• Dimensions (LxWxH): 6,55 x 10,82 x 3,2 m
• Safety area (LxW): 9,55 x 14,62 m
• Maximum fall height: 1,41 m
• The height of the platform: 0,59; 0,9 m
• Age group: 3+
• Number of users: 57
• Dimensional tolerance: +/- 5%

• The structure is made of galvanized and powder-coated black S235 steel, with posts made of 80 × 80 mm profiles and a 2 mm wall thickness.
• The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
• The panel with decorative elements is made of 15 mm thick HDPE board, with a central window made of transparent polycarbonate sheet, 5 mm thick.
• The insect panel with movable elements and illuminated LUMO components is made of 15 mm thick HDPE board.
• The tic-tac-toe game panel with decorative elements is made of 15 mm thick HDPE board.
• The slide is made of 1.5 mm thick stainless steel sheet with side panels made of 15 mm thick HDPE.
• The rail slide is made of AISI 304 stainless steel tube with a diameter of 42.4 mm.
• The rope climbing ramp is made of reinforced black polypropylene rope with a diameter of 16 mm. Plastic and aluminium connectors are used.
• The climbing ramp is made of 10 mm thick HPL Hexa board, with climbing elements and side panels made of 15 mm thick HDPE.
• The step (stair) is made of 10 mm thick HPL Hexa board, with side panels made of 15 mm thick HDPE.
• The fireman’s pole, a bent tube, is made of S235JR steel, with a tube diameter of 42.4 mm and a 2 mm wall thickness, powder-coated.
• The handrails are made of S235JR steel tubes with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.
• The decorative elements are made of 15 mm thick HDPE boards.
• The chain bridges consist of steps made of HDPE and 6 mm diameter stainless steel chains.
• The rope bridge consists of a floor made of 10 mm thick HPL Hexa board. The bridge frame is made of black S235JR steel with an 80 × 80 mm profile and a 2 mm wall thickness, powder-coated, with 4 mm thick steel sheet elements. Decorative elements are made of 15 mm thick HDPE. The bridge includes reinforced black polypropylene ropes with a diameter of 16 mm, aluminium connectors, and handrails made of S235JR steel tubes with a diameter of 42.4 mm and a wall thickness of 2 mm, powder-coated.
• The rubber strap bridge is made of EPDM rubber strips with a thickness of 10–12 mm. The openings are secured and reinforced with 15 mm thick HDPE elements. Handrails are made of S235JR steel tubes with a diameter of 42.4 mm and a wall thickness of 2 mm, powder-coated. The bridge uses 6 mm diameter AISI 316 stainless steel chains.
• The transition (4 steps) between two platforms has a frame made of black S235JR steel with an 80 × 80 mm profile and a 2 mm wall thickness, powder-coated. The steps are made of 15 mm thick HDPE.
• The bench is made of 15 mm thick HDPE, with a supporting structure made of black S235JR steel tube with a diameter of 42.4 mm and a 2 mm wall thickness.
• The tunnel is made of a black corrugated PP (polypropylene) pipe with an external diameter of approximately 68 cm, with panels entirely made of 15 mm thick HDPE.
• The rope climbing wall has a frame made of S235JR steel tube with a diameter of 42.4 mm and a 2 mm wall thickness. The net is made of reinforced black polypropylene rope with a diameter of 16 mm. Plastic and aluminium connectors are used.

All imager are for illustartive purposes only and may vary from the actual product.
