Playset LUDO FOREST 5-2

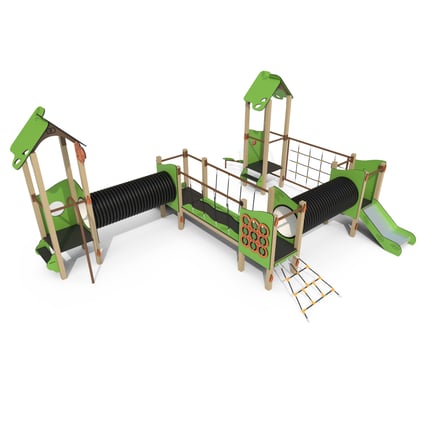

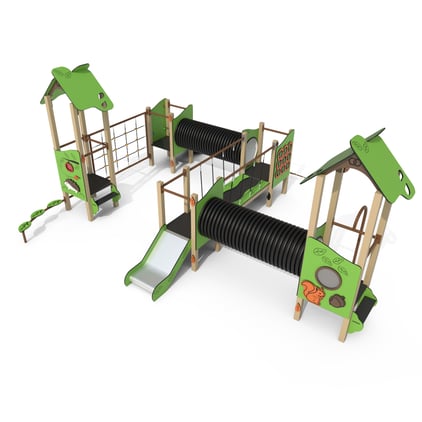

LUDO FOREST 5-2 Playset is inspired by the forest and transforms any playground into an adventurous world for young explorers, where nature encourages play, exploration, and imagination. The playset includes, among other features, five towers with platforms, two slides, a rope bridge, a rope climbing ramp, two tunnels, a tic-tac-toe panel, and an activity panel with four discs that emit colourful light effects when set in motion.The structure is made of S235 carbon steel, protected against corrosion by hot-dip galvanizing and powder coating. The slides are made of stainless steel. The activity panels and decorative elements are manufactured from HDPE. The platforms and step are made of Hexa HPL panels.

• 20 structural posts
• 1 panel with a transparent red window (apple) and decorative elements (hedgehog, leaf) with plant engravings
• 1 activity panel with 4 rotating wheels that emit colorful light when set in motion: 2 green, 1 red, 1 blue (insects)
• 1 activity panel with a “tic-tac-toe” game (leaves, acorns)
• 1 panel with a transparent round window, decorative elements (squirrel, acorn) and plant-themed engravings
• 3 towers with platforms
• 2 towers with platforms and roofs
• 12 handrails
• 2 straight slides
• 1 rope access climbing ramp
• 1 fireman’s pole
• 2 individual entrance steps
• 2 tunnels connecting two platforms
• 1 rope climbing wall
• 1 “bridge walkway” connecting two platforms
• 2 individual climbing rungs for access
• 1 bench (leaf-shaped seats)
• Decorative elements (leaves, squirrels)

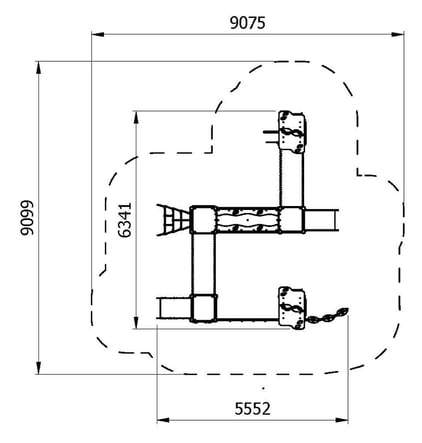

• Dimensions (LxWxH): 5,55 x 6,34 x 2,89 m
• Safety area (LxW): 9,08 x 9,1 m
• Maximum fall height: 1,41 m
• The height of the platform: 0,59 m
• Age group: 3+
• Number of users:
• Dimensional tolerance: +/- 5%

• The structure is made of galvanized and powder-coated black S235 steel. The posts are made of 80 × 80 mm profiles with a 2 mm wall thickness.
• The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
• The panel with decorative elements is made of 15 mm thick HDPE board, with a central window made of transparent polycarbonate sheet, 5 mm thick.
• The panel with decorative elements is made of 15 mm thick HDPE board; the colored semi-transparent element (apple) is made of 8 mm thick tinted plexiglass.
• The insect activity panel with moving and illuminated LUMO elements is made of 15 mm thick HDPE board.
• The tic-tac-toe game panel with decorative elements is made of 15 mm thick HDPE board.
• The slide is made of 1.5 mm thick stainless steel sheet with side panels made of 15 mm thick HDPE.
• The rope climbing ramp is made of reinforced black polypropylene rope with a diameter of 16 mm. Plastic and aluminum connectors are used.
• The climbing ramp is made of 10 mm thick HPL Hexa board, with climbing elements and side panels made of 15 mm thick HDPE.
• The step is made of 10 mm thick HPL Hexa board, with side panels made of 15 mm thick HDPE.
• The fireman’s pole, a bent tube, is made of S235JR steel with a diameter of 42.4 mm and a wall thickness of 2 mm, powder-coated.
• Handrails are made of S235JR steel tubes with a diameter of 33.7 mm and a wall thickness of 2 mm, powder-coated.
• Decorative elements are made of 15 mm thick HDPE boards.
• The chain bridge consists of steps made of HDPE and a 6 mm diameter stainless steel chain.
• The transition (4 steps) between two platforms has a structure made of black S235JR steel with an 80 × 80 mm profile and a 2 mm wall thickness, powder-coated. The steps are made of 15 mm thick HDPE.
• The tunnel is made of a black corrugated polypropylene (PP) pipe with an external diameter of approximately 68 cm and panels fully made of 15 mm thick HDPE.
• The rope climbing wall has a frame made of S235JR steel tube with a diameter of 42.4 mm and a wall thickness of 2 mm. The net is made of reinforced black polypropylene rope with a diameter of 16 mm. Plastic and aluminum connectors are used.

All imager are for illustartive purposes only and may vary from the actual product.
