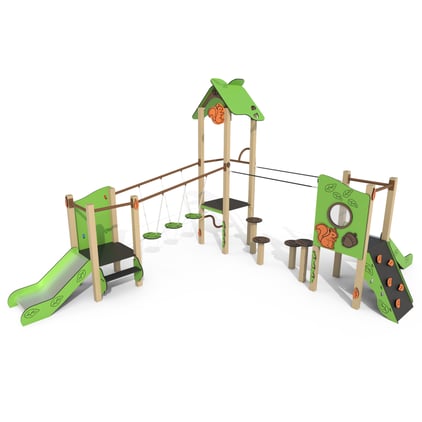

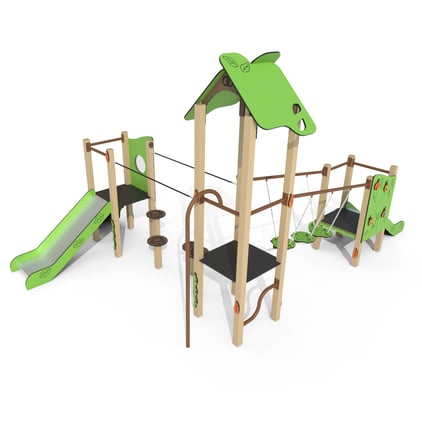

LUDO FOREST 3-2 Playset is inspired by the forest and transforms any playground into an adventurous world for young explorers, where nature encourages play, exploration, and imagination. The playset includes, among other features, three towers with platforms, two slides, a chain bridge, an access climbing ramp, a bridge between the platforms, and an activity panel with four discs that emit colourful light effects when set in motion. The structure is made of S235 carbon steel, protected against corrosion by hot-dip galvanizing and powder coating. The slides are made of stainless steel. The activity panels and decorative elements are manufactured from HDPE. The platforms and step are made of Hexa HPL panels.

  • 12 structural posts
  • 1 panel with 4 wheels that emit colorful light when set in motion: 2 green, 1 red, 1 blue (insects)
  • 1 panel with a transparent round window, decorative elements (squirrel and acorn), and leaf engravings
  • 2 towers with a platform
  • 1 tower with a platform and roof
  • 8 handrails
  • 2 straight slides
  • 1 entrance climbing ramp with 5 climbing holds (leaves)
  • 1 fireman’s pole
  • 1 entrance step
  • 1 bridge suspended on chains connecting two platforms (3 leaves)
  • 1 bridge (4 steps/mushrooms) between two platforms
  • 1 entrance rung
  • Decorative elements (squirrels, leaves, caterpillars)

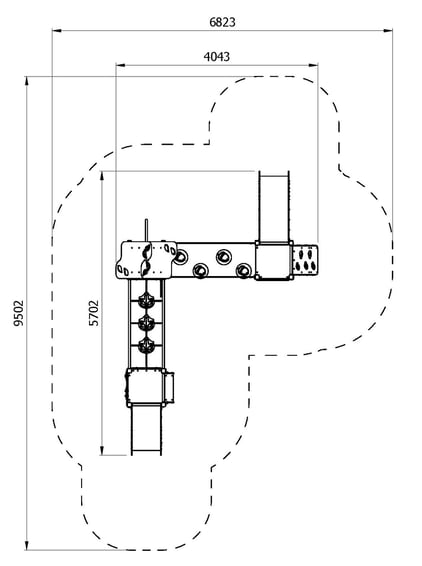

  • Dimensions (LxWxH): 4,04 x 5,7 x 3,2 m
  • Safety area (LxW): 6,82 x 9,5 m
  • Maximum fall height: 0,9 m
  • The height of the platform: 0,59; 0,9 m
  • Age group: 3+
  • Number of users: 19
  • Dimensional tolerance: +/- 5%
  • The structure is made of galvanized and powder-coated black S235 steel, with posts of 80 x 80 mm profile and a 2 mm wall thickness.
  • The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
  • The panel with decorative elements is made of 15 mm thick HDPE, with the central window made of 5 mm thick transparent polycarbonate sheet.
  • The panel with insects and movable LUMO illuminated elements is made of 15 mm thick HDPE.
  • The slide is made of 1.5 mm thick stainless steel sheet with side panels made of 15 mm thick HDPE.
  • The climbing ramp is made of 10 mm thick HPL Hexa board, with climbing elements and side panels made of 15 mm thick HDPE.
  • The step is made of 10 mm thick HPL Hexa board, with side panels made of 15 mm thick HDPE.
  • The fireman’s pole, a bent tube, is made of S235JR steel, with a tube diameter of 42.4 mm and a 2 mm wall thickness, powder-coated.
  • The handrails are made of S235JR steel with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.
  • The decorative elements are made of 15 mm thick HDPE boards.
  • The chain bridge consists of steps made of HDPE and a 6 mm diameter stainless steel chain.
  • The passage (4 steps) between two platforms has a frame made of black S235JR steel with an 80 x 80 mm profile and a 2 mm wall thickness, powder-coated. The steps are made of 15 mm thick HDPE.

All imager are for illustartive purposes only and may vary from the actual product.
