Code | 01-LU-731-F

Slide 1 of 3

Product features



Inter Play Studio

Design Your Playground

Download files



Technical data sheet

Technical drawings

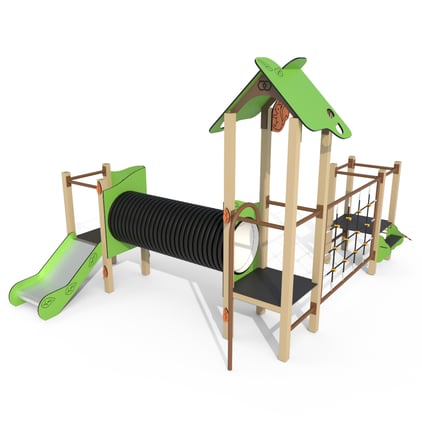

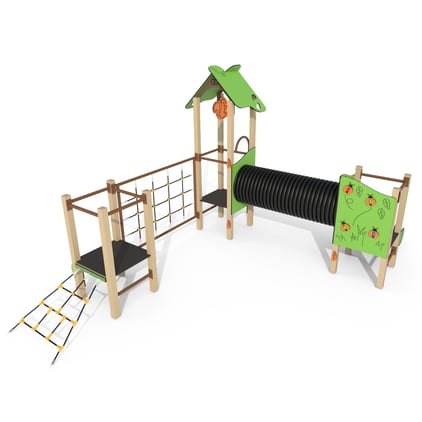

LUDO FOREST 3-1 Playset is inspired by the forest and transforms any playground into an adventurous world for young explorers, where nature encourages play, exploration, and imagination. The playset includes, among other features, three towers with platforms, a slide, a rope climbing wall, a tunnel, and an activity panel with four discs that emit colourful light effects when set in motion. The structure is made of S235 carbon steel, protected against corrosion by hot-dip galvanizing and powder coating. The slide is made of stainless steel.

  • 4 structural posts
  • 1 panel with 4 wheels that emit colorful light when set in motion: 2 green, 1 red, 1 blue (insects)
  • 2 towers with a platform
  • 1 tower with a platform and a roof
  • 9 handrails
  • 1 straight slide
  • 1 rope climbing entrance ramp
  • 1 fireman’s pole
  • 1 entrance step
  • 1 rope climbing wall
  • 1 tunnel connecting two platforms
  • 2 individual climbing rungs
  • decorative elements (squirrel, leaves)

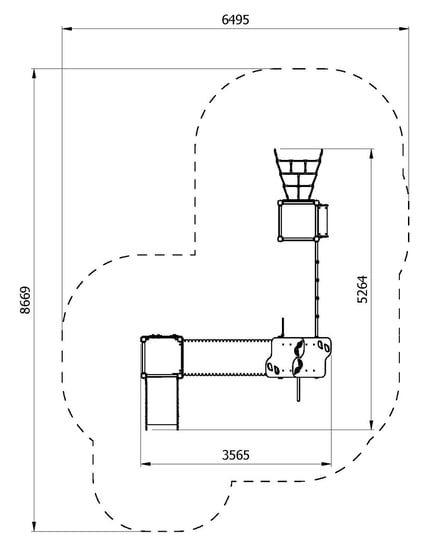

  • Dimensions (LxWxH): 3,56 x 5,26 x 2,89 m
  • Safety area (LxW): 6,5 x 8,67 m
  • Maximum fall height: 1,41 m
  • The height of the platform: 0,59 m
  • Age group: 3+
  • Number of users: 20
  • Dimensional tolerance: +/- 5%
  • The structure is made of galvanized and powder-coated black S235 steel, with posts of 80 x 80 mm profile and a 2 mm wall thickness.
  • The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
  • The panel with insects and movable LUMO illuminated elements is made of 15 mm thick HDPE.
  • The slide is made of 1.5 mm thick stainless steel sheet with side panels made of 15 mm thick HDPE.
  • The rope climbing ramp is made of reinforced black polypropylene rope with a diameter of 16 mm. Connectors made of plastic and aluminium are used.
  • The step is made of 10 mm thick HPL Hexa board, with side panels made of 15 mm thick HDPE.
  • The fireman’s pole, a bent tube, is made of S235JR steel, with a tube diameter of 42.4 mm and a 2 mm wall thickness, powder-coated.
  • The handrails are made of S235JR steel with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.
  • The decorative elements are made of 15 mm thick HDPE boards.
  • The tunnel is made of a black corrugated PP (polypropylene) pipe with an outer diameter of approximately 68 cm, with a panel entirely made of 15 mm thick HDPE.
  • The rope climbing wall has a frame made of S235JR steel tube with a diameter of 42.4 mm and a 2 mm wall thickness. The net is made of reinforced black polypropylene rope with a diameter of 16 mm. Connectors made of plastic and aluminium are used.

All imager are for illustartive purposes only and may vary from the actual product.
