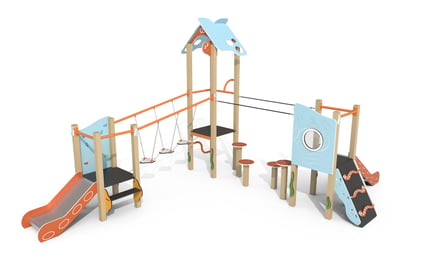

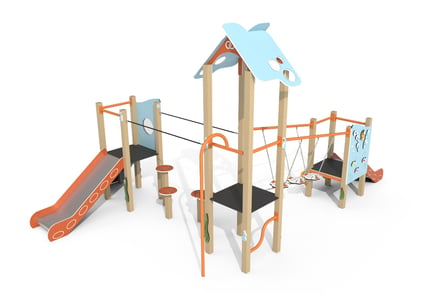

LUDO OCEAN 3-2 Playset inspired by the ocean transforms the playground into an adventurous underwater world full of exploration and discovery. The equipment includes, among others, three towers with platforms, two slides, a climbing ramp, a chain bridge, and an activity panel with eight rotating discs that emit colourful light effects when set in motion. The structure is made of S235 steel, protected against corrosion by galvanizing and powder coating, using tubes with a diameter of 80 mm and a wall thickness of 2 mm. The slides are made of 1.5 mm thick stainless steel sheet. The panels and decorative elements are made of HDPE. The platforms and step are made of HPL Hexa board.

  • 12 structural posts
  • 1 panel with 8 wheels that emit colourful light when set in motion: 5 blue (water drops), 1 green, 1 purple and 1 pink (fish)
  • 1 panel with a transparent window and marine-themed engravings
  • 2 towers with platforms
  • 1 tower with a platform and a roof
  • 8 handrails
  • 2 straight slides
  • 1 access climbing ramp with 3 steps (octopus tentacles)
  • 1 fireman’s pole
  • 1 access step
  • 1 bridge suspended on chains connecting two platforms (3 shells)
  • 1 bridge (4 steps/mushrooms) between two platforms
  • 1 access rung
  • Decorative elements (seaweed, air bubbles, octopus)

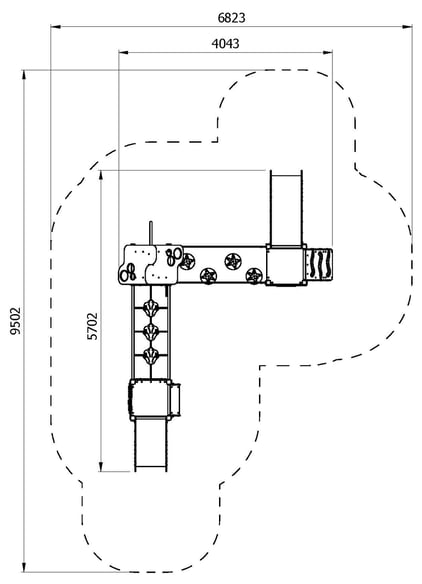

  • Dimensions (LxWxH): 4,04 x 5,7 x 3,2 m
  • Safety area (LxW): 6,82 x 9,5 m
  • Maximum fall height: 0,9 m
  • Age group: 3+
  • Number of users: 19
  • Dimensional tolerance: +/- 5%
  • The structure is made of S235 carbon steel, galvanized and powder-coated, with 80 x 80 mm posts and a 2 mm wall thickness.
  • The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
  • The panel with decorative elements is made of 15 mm thick HDPE, with a central transparent window made of 5 mm thick transparent polycarbonate sheet.
  • The panel is made of 15 mm thick HDPE, with movable elements and LUMO illuminated wheels.
  • The slide is made of 1.5 mm thick stainless steel with side panels made of 15 mm thick HDPE.
  • The access step is made of 10 mm thick Hexa HPL board, with side panels made of 15 mm thick HDPE.
  • The climbing ramp is made of 10 mm thick Hexa HPL board, with climbing elements and side panels made of 15 mm thick HDPE.
  • The fireman’s pole, a bent tube, is made of S235JR steel, with a tube diameter of 42.4 mm and a 2 mm wall thickness, powder-coated.
  • The handrails are made of S235JR steel with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.
  • The decorative elements are made of 15 mm thick HDPE boards.
  • The chain bridge consists of steps made of HDPE, with a 6 mm diameter stainless steel chain.
  • The four-step passage between two platforms has a structure made of S235JR carbon steel with an 80 x 80 mm profile and a 2 mm wall thickness, powder-coated. The steps are made of 15 mm thick HDPE.

All imager are for illustartive purposes only and may vary from the actual product.
