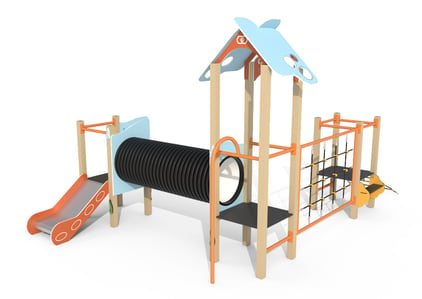

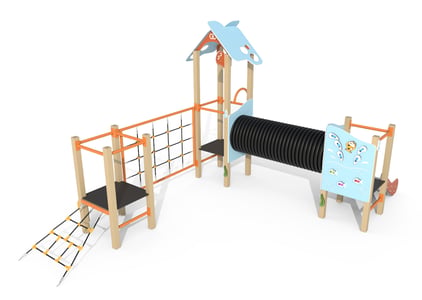

LUDO OCEAN 3-1 Playset inspired by the ocean transforms the playground into an adventurous underwater world full of exploration and discovery. The equipment includes, among others, three towers with platforms, a slide, a rope climbing ramp, a tunnel, and an activity panel with eight rotating discs that emit colourful light effects when set in motion.The structure is made of S235 steel, protected against corrosion by galvanizing and powder coating. The slide is made of stainless steel sheet. The panel and decorative elements are made of HDPE. The platforms and step are made of HPL Hexa board.

  • 12 structural posts
  • 1 panel with 8 wheels that emit colourful light when set in motion: 5 blue (water drops), 1 green, 1 purple and 1 pink (fish)
  • 2 towers with platforms
  • 1 tower with a platform and a roof
  • 9 handrails
  • 1 straight slide
  • 1 rope access climbing ramp
  • 1 rope climbing wall
  • 1 fireman’s pole
  • 1 access step
  • 1 tunnel connecting two platforms
  • 3 access rungs
  • Decorative elements (seaweed, air bubbles, octopus)

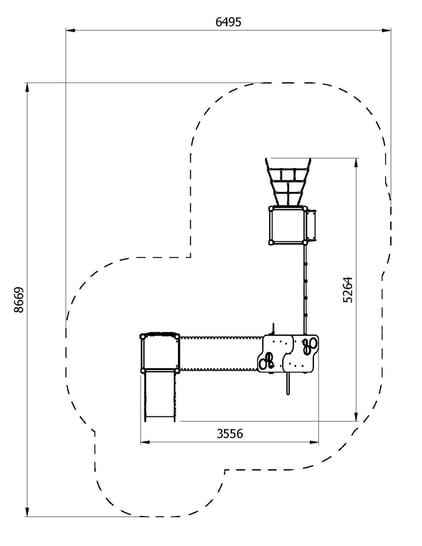

  • Dimensions (LxWxH): 3,56 x 5,26 x 2,89 m
  • Safety area (LxW):  6,5 x 8,67 m
  • Maximum fall height: 1,41 m
  • Age group: 3+
  • Number of users: 20
  • Dimensional tolerance: +/- 5%
  • The structure is made of S235 carbon steel, galvanized and powder-coated, with 80 x 80 mm posts and a 2 mm wall thickness.
  • The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
  • The panel is made of 15 mm thick HDPE, with movable elements and LUMO illuminated wheels.
  • The slide is made of 1.5 mm thick stainless steel with side panels made of 15 mm thick HDPE.
  • The rope climbing ramp is made of black reinforced polypropylene rope with a diameter of 16 mm. The connectors are made of plastic and aluminium.
  • The access step is made of 10 mm thick Hexa HPL board, with side panels made of 15 mm thick HDPE.
  • The fireman’s pole, a bent tube, is made of S235JR steel, with a tube diameter of 42.4 mm and a 2 mm wall thickness, powder-coated.
  • The handrails are made of S235JR steel with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.
  • The decorative elements are made of 15 mm thick HDPE boards.
  • The tunnel is made of a black corrugated polypropylene (PP) pipe with an outer diameter of approximately 68 cm, and a panel fully made of 15 mm thick HDPE.
  • The rope climbing wall has a structure made of S235JR steel tube with a diameter of 42.4 mm and a 2 mm wall thickness. The climbing net is made of black reinforced polypropylene rope with a diameter of 16 mm. The connectors are made of plastic and aluminium.

All imager are for illustartive purposes only and may vary from the actual product.
