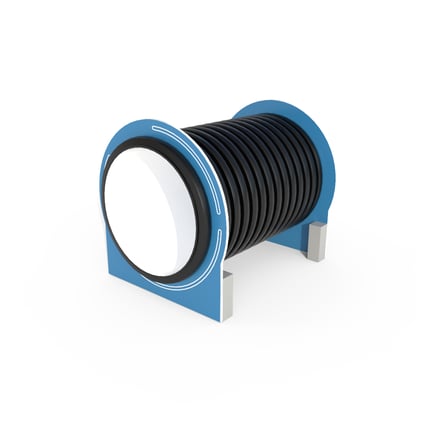

RAMPI 2 Tunnel is an attractive playground element that combines active play with the development of motor skills. The distinctive tunnel is made of black corrugated polypropylene pipe and is finished with HDPE plastic panels. The structure is made of black S235 steel, hot-dip galvanized and powder-coated.

  • 4 structural posts
  • 1 passage (tunnel)
  • 2 panels
  • Dimensions (LxWxH): 1,04 x 0,81 x 0,84 m

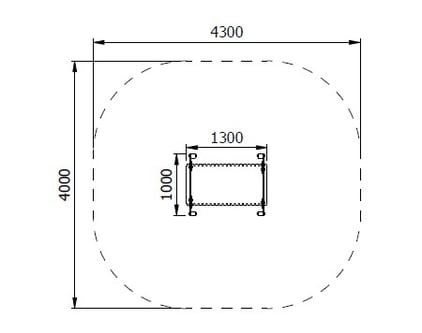

  • Safety area (LxW): 4,04 x 3,81 m
  • Free fall height: 0,77 m
  • Age group: 3+
  • Number of users: 2
  • Differences in dimensions no more than +/- 5% are acceptable
  • Structure made of black S235 steel, hot-dip galvanized and powder-coated, with 70 × 70 mm posts and a wall thickness of 2 mm,
  • Panels made of 15 mm thick HDPE,
  • Tunnel made of black corrugated polypropylene pipe and a panel made entirely of 15 mm thick HDPE.
