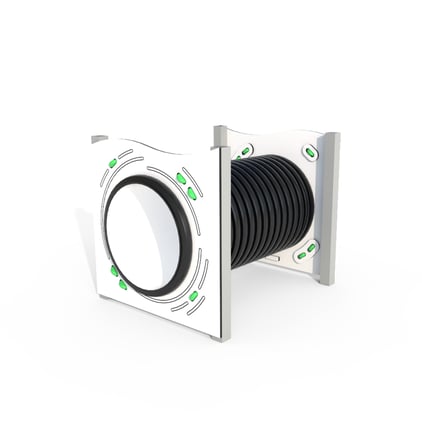

RAMPI 1 Tunnel is an attractive playground element that combines active play with sensory and motor development. The distinctive tunnel is made of black corrugated polypropylene pipe. The durable HDPE panels are equipped with LUMO light-up wheels which, when set in motion, illuminate with colorful light, stimulating children’s curiosity and encouraging them to actively explore new sensory experiences. The structure is made of black S235 steel, hot-dip galvanized and powder-coated.

  • 4 structural posts
  • 1 passage (tunnel)
  • 2 panels with LUMO light-up wheels that emit colorful light when set in motion (5 blue wheels)
  • Dimensions (LxWxH): 1,3 x 1 x 0,99 m

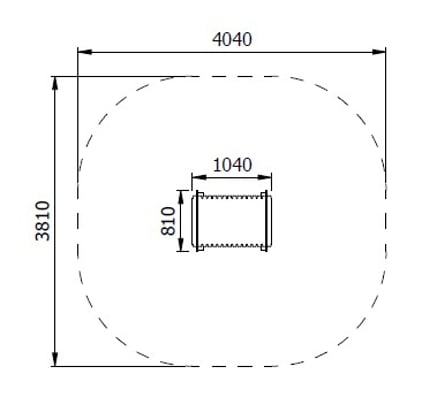

  • Safety area (LxW): 4,3 x 4 m
  • Free fall height: 0,99 m
  • Age group: 3+
  • Number of users: 2
  • Differences in dimensions no more than +/- 5% are acceptable
  • Structure made of S235 steel, hot-dip galvanized and powder-coated, with 70 × 70 mm posts and a wall thickness of 2 mm,
  • Panels made of 15 mm thick HDPE with movable elements – LUMO light-up wheels,
  • Tunnel made of black corrugated polypropylene pipe and a panel made entirely of 15 mm thick HDPE.
