Code | 01-SF-751-X-F

Slide 1 of 4

Product features



Inter Play Studio

Design Your Playground

Download files



Technical data sheet

Technical drawings

SFERO FOREST 5-1 Playset is a unique attraction that can become the central feature of any playground. The equipment encourages children to climb, play actively and explore, supporting the development of motor coordination, strength and spatial imagination. Solid construction, safe materials and a geometric form make the set ideal for public, school and residential playgrounds.

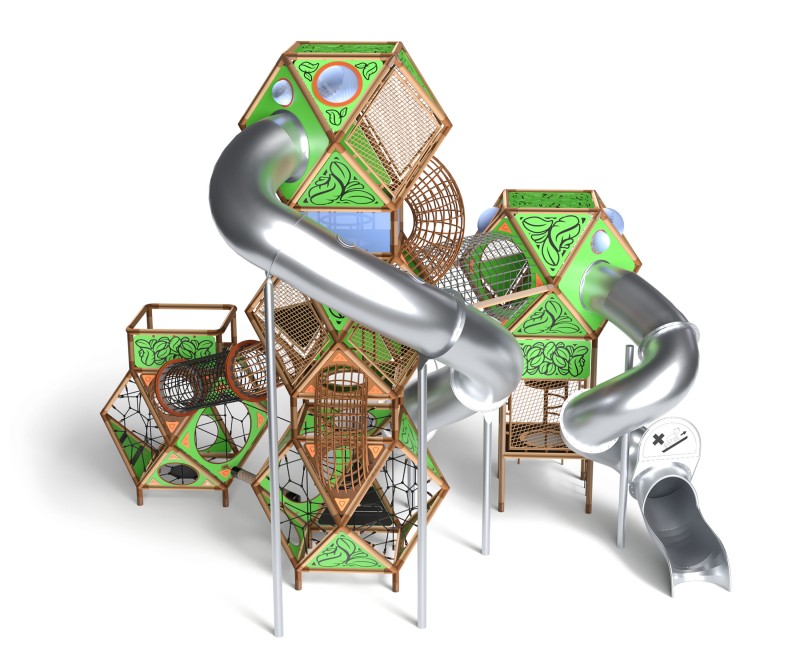

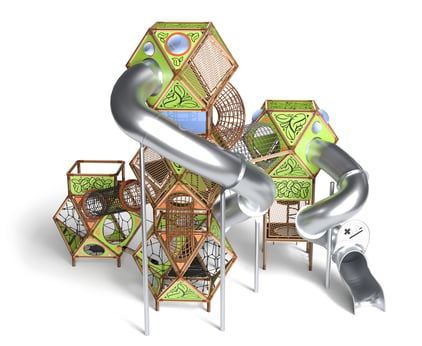

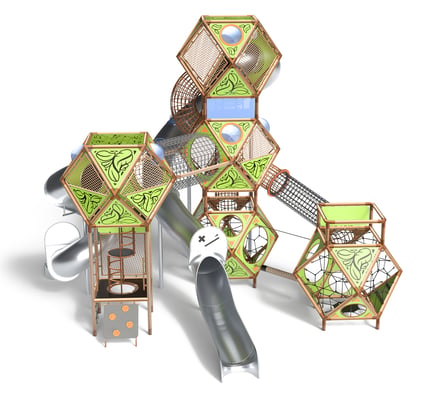

The SFERO FOREST 5-1 Playset consists of five interconnected spherical domes and two long tube slides. Each dome is an Archimedean solid and, thanks to its octagonal symmetry and radially uniform structure, forms an extremely stable construction that ensures the highest level of user safety. Each spherical dome has 24 identical edges forming structural tubes made of AISI 304 stainless steel, powder-coated, with a diameter of 88.9 mm and a wall thickness of 3.2 mm. The structural elements of the domes are connected in an innovative way using internal joining sleeves, which ensure a strong and durable connection between components. As a result, the structure remains stable even during intensive use by more than 70 children.

*Optional version available with plastic slides.

Playground device consists of

  • 12 supporting posts for the main structure
  • 5 slide support posts
  • 2 long, curved tube slides
  • 22 triangular milled panels
  • 6 round porthole openings
  • 2 square milled roof panels
  • 1 external rectangular entrance ramp
  • 4 internal triangular entrance ramps
  • 5 square climbing panels
  • 4 black rubber resting platforms
  • 2 internal ladders
  • 6 triangular steel plates with openings
  • 6 square steel plates with openings
  • 10 steel mesh panels
  • 2 steel tunnels
  • 2 rope tunnels
  • 1 balancing rope
  • 60 corner connectors

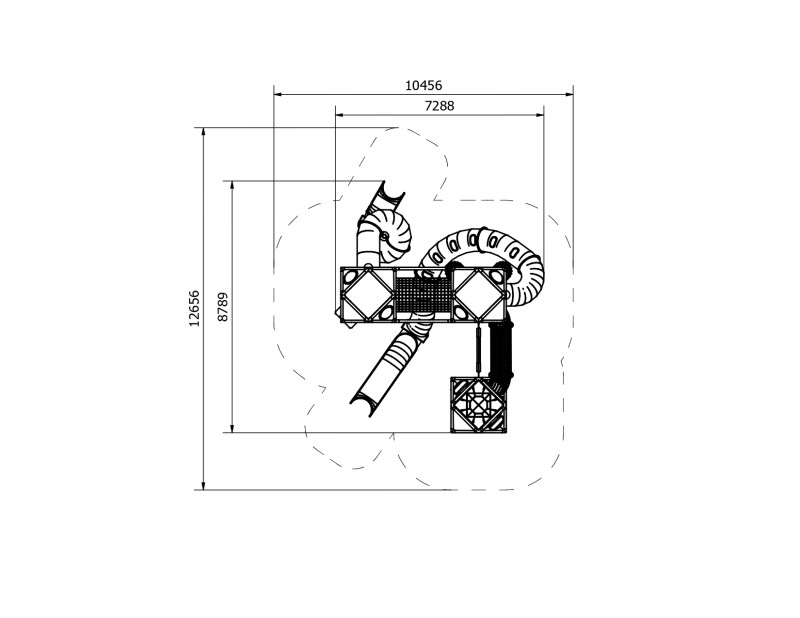

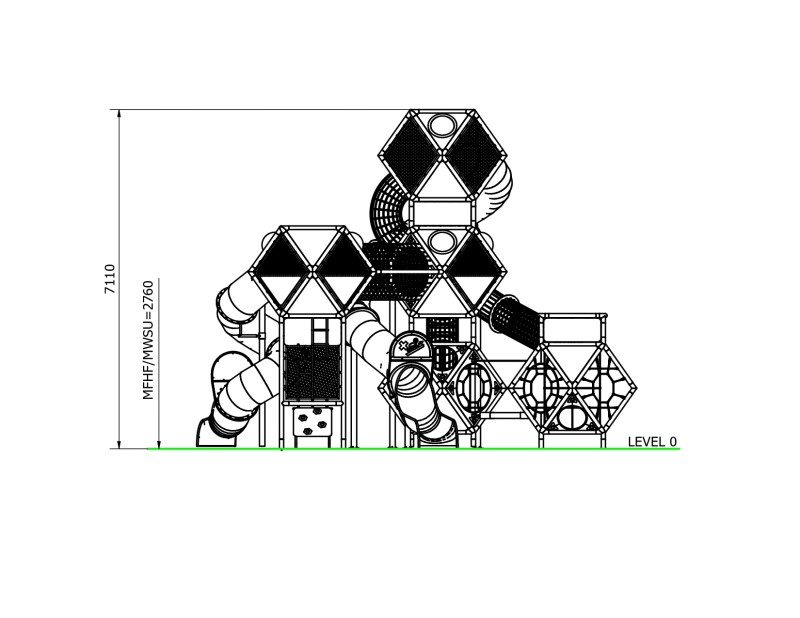

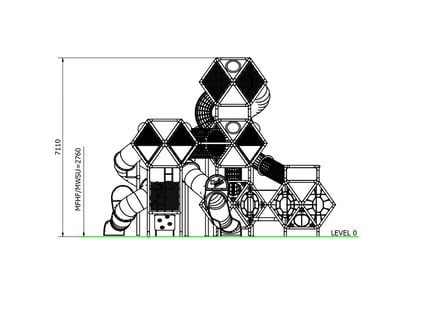

  • Dimensions (LxWxH): 7.29 × 8.79 × 7.11 m
  • Safety area (LxW): 10.46 × 12.66 m
  • Maximum fall height: 2.18 m
  • Age group: 4+
  • Number of users: 71
  • A certificate confirming compatibility with norm EN 1176
  • Dimensional tolerance: ±5%
  • Structure made of powder-coated AISI 304 stainless steel, using tubes with a diameter of 88.9 mm and a wall thickness of 3.2 mm.
  • Mesh elements (panels and tunnels) made of corrosion-protected steel and powder-coated.
  • Stainless steel bolts and fasteners.
  • Triangular CNC-milled panels made of 15 mm thick HDPE board.
  • 16 mm polypropylene ropes reinforced with a steel core. The ropes are UV-resistant and flame-retardant.
  • Black platform made of fiber-reinforced EPDM rubber.
  • Entrance ramp made of steel covered with a non-slip HPL panel.
  • Green and orange side panels made of 15 mm thick HDPE.
  • Matt stainless steel slide with a wall thickness of 2 mm.
  • Modular assembly system based on repeatable components and corner connectors.
  • Internal ramp steps made of non-slip HPL.
  • Windows made of 3 mm thick polycarbonate.

All images are for illustrative purposes only and may vary from the actual product.
