Playset SFERO FOREST 5-1

Code | 01-SF-751-P-F

Slide 1 of 4

Product features



Inter Play Studio

Design Your Playground

Download files



Technical data sheet

Technical drawings

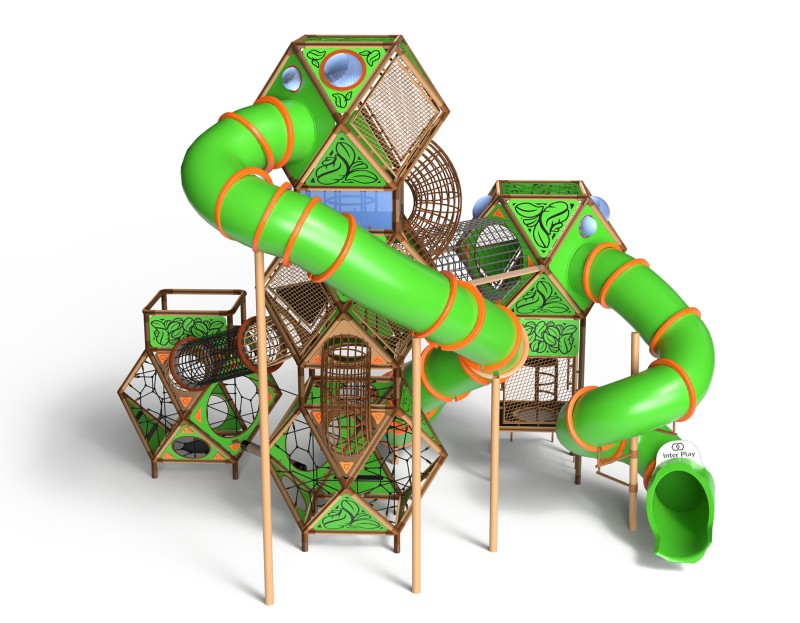

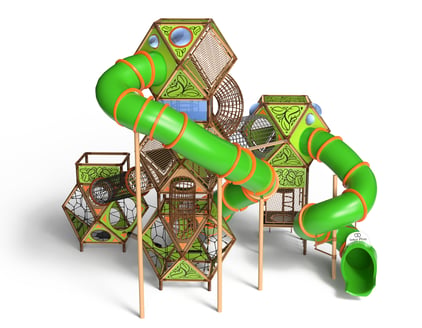

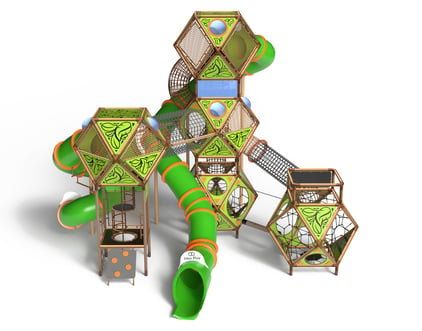

SFERO FOREST 5-1 Playset is a unique attraction that can become the centerpiece of any playground. The equipment encourages children to climb, engage in active play, and explore, supporting the development of motor coordination, strength, and spatial imagination. Its robust construction, safe materials, and geometric design make it an excellent choice for public, school, and residential playgrounds.

The SFERO FOREST 5-1 Playset consists of five interconnected spherical structures and two long tube slides. Each sphere is an Archimedean solid and, thanks to its octagonal symmetry and radially equilateral design, forms an exceptionally stable structure that ensures the highest level of user safety. Each individual sphere features 24 identical edges formed by structural tubes made of powder-coated stainless steel with a diameter of 88.9 mm and a wall thickness of 3.2 mm. The structural components of the spheres are connected using an innovative internal sleeve system, providing a strong and durable connection between elements. As a result, the structure remains stable even during intensive play by more than 70 children.

*An optional version with stainless-steel slides is also available.

Playground device consists of

  • 12 supporting posts for the main structure
  • 5 slide support posts
  • 2 long, curved tube slides
  • 22 triangular milled panels
  • 6 round porthole openings
  • 2 square milled roof panels
  • 1 external rectangular entrance ramp
  • 4 internal triangular entrance ramps
  • 5 square climbing panels
  • 4 black rubber resting platforms
  • 2 internal ladders
  • 6 triangular steel plates with openings
  • 6 square steel plates with openings
  • 10 steel mesh panels
  • 2 steel tunnels
  • 2 rope tunnels
  • 1 balancing rope
  • 60 corner connectors

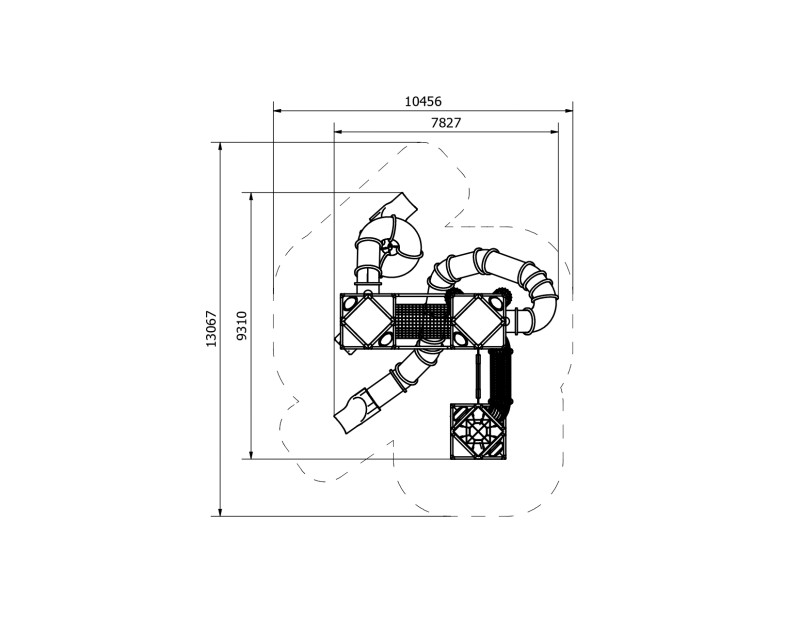

  • Dimensions (LxWxH): 7,83 x 9,31 x 7,11 m
  • Safety area (LxW): 10,46 x 13,07 m

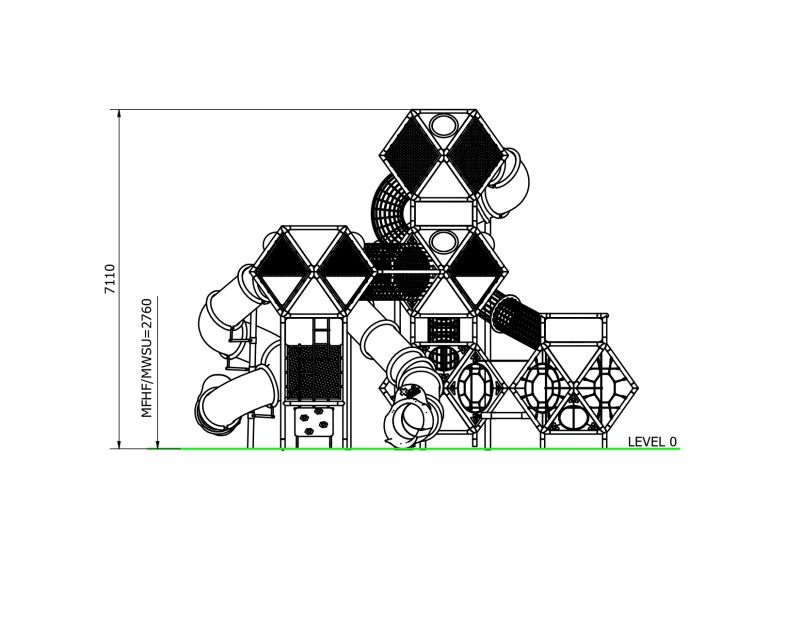

  • Maximum fall height: 2.18 m
  • Age group: 4+
  • Number of users: 71
  • A certificate confirming compatibility with norm EN 1176
  • Dimensional tolerance: ±5%
  • Structure made of powder-coated AISI 304 stainless steel, using tubes with a diameter of 88.9 mm and a wall thickness of 3.2 mm.
  • Mesh elements (panels and tunnels) made of corrosion-protected steel and powder-coated.
  • Stainless steel bolts and fasteners.
  • Triangular CNC-milled panels made of 15 mm thick HDPE board.
  • 16 mm polypropylene ropes reinforced with a steel core. The ropes are UV-resistant and flame-retardant.
  • Black platform made of fiber-reinforced EPDM rubber.
  • Entrance ramp made of steel covered with a non-slip HPL panel.
  • Tube slide made of rotomolded HDPE in RAL 6018 (dominant color) and RAL 2004.
  • Green and orange side panels made of 15 mm thick HDPE.
  • Modular assembly system based on repeatable components and corner connectors.
  • Internal ramp steps made of non-slip HPL.
  • Windows made of 3 mm thick polycarbonate.

All images are for illustrative purposes only and may vary from the actual product.
