Playset LUDO OCEAN 5-1

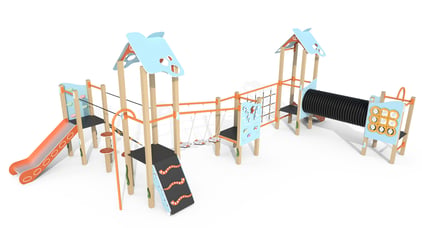

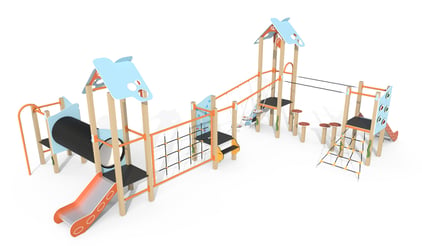

LUDO OCEAN 5-1 Playset is an ocean-inspired playground structure that transforms any playground into an exciting world of underwater adventures. The playset includes, among other features, five towers with platforms, two slides, two climbing ramps, a chain bridge, a tunnel, a rope crossing between platforms, a rope climbing wall, an activity panel with colourful transparent windows, a tic-tac-toe panel, and one activity panel with eight discs that emit colourful light effects when set in motion. The structure is made of S235 steel protected against corrosion by hot-dip galvanizing and powder coating. The slides are made of stainless steel, while the activity panels and decorative elements are manufactured from HDPE. The platforms and step are made of Hexa HPL panels.

• 20 structural posts
• 1 panel with 5 transparent windows (3 green and 2 red
• 1 panel with 8 wheels that emit colourful light when set in motion: 5 blue (water drops), 1 green, 1 purple and 1 pink (fish)
• 1 “tic-tac-toe” game panel (shells and starfish)
• 3 towers with platforms
• 2 towers with platforms and roofs
• 13 handrails
• 2 straight slides
• 1 rope access climbing ramp
• 1 climbing ramp with 3 steps (octopus tentacles)
• 2 fireman’s poles
• 1 access step
• 1 bridge suspended on chains connecting two platforms (3 shells)
• 1 bridge (4 steps/mushrooms) between two platforms
• 1 tunnel connecting two platforms
• 1 rope climbing wall
• 2 access rungs
• Decorative elements (seaweed, air bubbles, octopus)

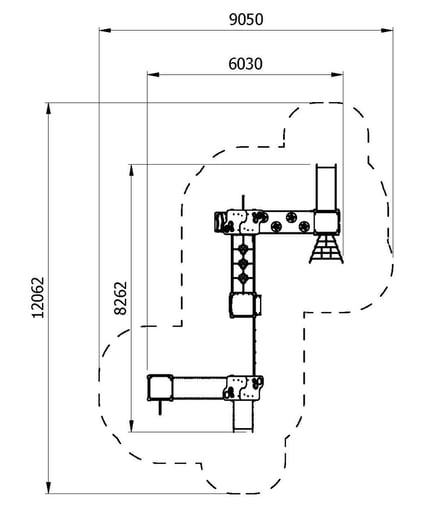

• Dimensions (LxWxH): 6,03 x 8,26 x 3,2 m
• Safety area (LxW): 9,05 x 12,06 m
• Maximum fall height: 1,41 m
• The height of the platform: 0,59; 0,9 m
• Age group: 3+
• Number of users: 33
• Dimensional tolerance: +/- 5%

• The structure is made of S235 carbon steel, galvanized and powder-coated, with 80 x 80 mm posts and a 2 mm wall thickness.
• The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
• The panel with decorative elements is made of 15 mm thick HDPE, with coloured semi-transparent elements made of 8 mm thick tinted plexiglass sheet.
• The fish and water drop panel is made of 15 mm thick HDPE, with movable elements and LUMO illuminated wheels.
• The “tic-tac-toe” game panel with decorative elements is made of 15 mm thick HDPE.
• The slides are made of 1.5 mm thick stainless steel with side panels made of 15 mm thick HDPE.
• The rope climbing ramp is made of reinforced black polypropylene rope with a diameter of 16 mm. Connectors made of plastic and aluminium are used.
• The steps are made of 10 mm thick Hexa HPL board, with side panels made of 15 mm thick HDPE.
• The climbing ramp is made of 10 mm thick Hexa HPL board, with climbing elements and side panels made of 15 mm thick HDPE.
• The fireman’s poles, bent tubes, are made of S235JR steel, with a tube diameter of 42.4 mm and a 2 mm wall thickness, powder-coated.
• The handrails are made of S235JR steel with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.
• The decorative elements are made of 15 mm thick HDPE boards.
• The chain bridge consists of steps made of HDPE, with a 6 mm diameter stainless steel chain.
• The bridge (4 steps) between two platforms has a frame made of S235JR carbon steel with an 80 x 80 mm profile and a 2 mm wall thickness, powder-coated. The steps are made of 15 mm thick HDPE.
• The tunnel is made of a black corrugated PP (polypropylene) pipe with an outer diameter of approximately 68 cm, with a panel entirely made of 15 mm thick HDPE.
• The rope climbing wall has a frame made of S235JR steel tube with a diameter of 42.4 mm and a 2 mm wall thickness. The net is made of reinforced black polypropylene rope with a diameter of 16 mm. Connectors made of plastic and aluminium are used.

All imager are for illustartive purposes only and may vary from the actual product.
