Playset LUDO OCEAN 4-2

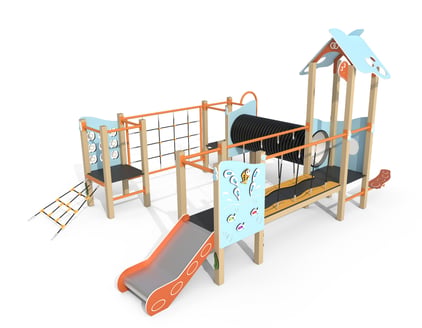

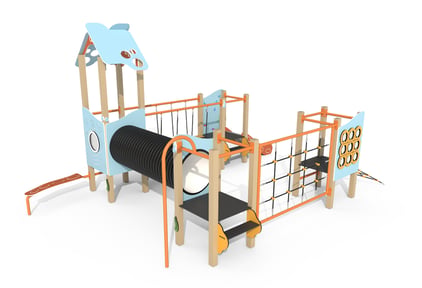

LUDO OCEAN 4-2 Playset inspired by the ocean transforms the playground into an adventurous underwater world full of exploration and discovery. The equipment includes, among others, four towers with platforms, one slide, a rope climbing ramp, a rope bridge, a bridge made of rubber belts, a rope climbing wall, an activity panel with colourful windows, a tic-tac-toe game, and an activity panel with eight rotating discs that emit colourful light effects when set in motion. The structure is made of S235 steel, protected against corrosion by galvanizing and powder coating. The slide is made of stainless steel sheet. The panels and decorative elements are made of HDPE. The platforms and step are made of HPL Hexa board.

• 16 structural posts
• 1 panel with 8 wheels that emit colourful light when set in motion: 5 blue (water drops), 1 green, 1 purple and 1 pink (fish)
• 1 panel with a transparent round window and marine-themed engravings
• 1 “tic-tac-toe” game panel (shells, starfish)
• 3 towers with platforms
• 1 tower with a platform and a roof
• 11 handrails
• 1 straight slide
• 1 rope access climbing ramp
• 1 fireman’s pole
• 1 access step
• 1 bridge/walkway connecting two platforms
• 1 tunnel connecting two platforms
• 1 rope climbing wall
• 2 access rungs
• 1 bench
• Decorative elements (seaweed, air bubbles, octopus)

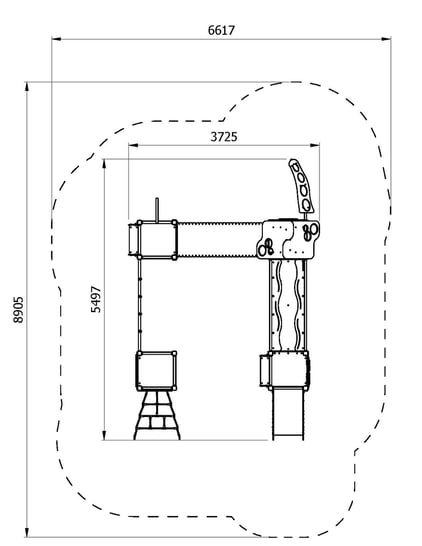

• Dimensions (LxWxH):  3,73 x 5,5 x 2,89 m
• Safety area (LxW): 6,61 x 8,91 m
• Maximum fall height: 1,41 m
• The height of the platform: 0,59 m
• Age group: 3+
• Number of users: 28
• Dimensional tolerance: +/- 5%

• The structure is made of S235 carbon steel, galvanized and powder-coated, with 80 x 80 mm posts and a 2 mm wall thickness.
• The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
• The panel with decorative elements is made of 15 mm thick HDPE, with a central transparent window made of 5 mm thick transparent polycarbonate sheet.
• The “tic-tac-toe” game panel with decorative elements is made of 15 mm thick HDPE.
• The fish and water drop panel is made of 15 mm thick HDPE, with movable elements and LUMO illuminated wheels.
• The slide is made of 1.5 mm thick stainless steel with side panels made of 15 mm thick HDPE.
• The rope climbing ramp is made of reinforced black polypropylene rope with a diameter of 16 mm. Connectors made of plastic and aluminium are used.
• The steps are made of 10 mm thick Hexa HPL board, with side panels made of 15 mm thick HDPE.
• The fireman’s pole, a bent tube, is made of S235JR steel, with a tube diameter of 42.4 mm and a 2 mm wall thickness, powder-coated.
• The handrails are made of S235JR steel with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.
• The decorative elements are made of 15 mm thick HDPE boards.
• The rope bridge consists of a floor made of 10 mm thick Hexa HPL board. The bridge frame is made of S235JR carbon steel with an 80 x 80 mm profile and a 2 mm wall thickness, powder-coated, with 4 mm thick steel plates. Decorative elements are made of 15 mm thick HDPE. The bridge includes reinforced black polypropylene ropes with a diameter of 16 mm, aluminium connectors, and handrails made of S235JR steel tube with a diameter of 42.4 mm and a 2 mm wall thickness, powder-coated.
• The bench is made of 15 mm thick HDPE, with a frame made of S235JR carbon steel tube with a diameter of 42.4 mm and a 2 mm wall thickness.
• The tunnel is made of a black corrugated PP (polypropylene) pipe with an outer diameter of approximately 68 cm, with a panel entirely made of 15 mm thick HDPE.
• The rope climbing wall has a frame made of S235JR steel tube with a diameter of 42.4 mm and a 2 mm wall thickness. The net is made of reinforced black polypropylene rope with a diameter of 16 mm. Connectors made of plastic and aluminium are used.

All imager are for illustartive purposes only and may vary from the actual product.
