Playset LUDO FOREST 4-2

LUDO FOREST 4-2 Playset is inspired by the forest and transforms any playground into an adventurous world for young explorers, where nature encourages play, exploration, and imagination. The playset includes, among other features, four towers with platforms, one slide, a rope bridge, a rope climbing ramp, a tunnel, a tic-tac-toe panel, an activity panel with four discs that emit colourful light effects when set in motion, and a bench.The structure is made of S235 carbon steel, protected against corrosion by hot-dip galvanizing and powder coating. The slide is made of stainless steel. The activity panels and decorative elements are manufactured from HDPE. The platforms and step are made of Hexa HPL panels.

• 16 structural posts
• 1 panel with 4 wheels that emit colorful light when set in motion: 2 green, 1 red, 1 blue (insects)
• 1 panel with a transparent round window, decorative elements (squirrel, acorn), and plant-patterned engravings
• 1 panel with a “tic-tac-toe” game (leaves, acorns)
• 3 towers with a platform
• 1 tower with a platform and roof
• 11 handrails
• 1 straight slide
• 1 rope climbing entrance ramp
• 1 fireman’s pole
• 1 entrance step
• 1 “walkway” bridge connecting two platforms
• 1 tunnel connecting two platforms
• 1 rope climbing wall
• 2 individual entrance rungs
• 1 bench (3 seats – leaves)
• Decorative elements (leaves, squirrel)

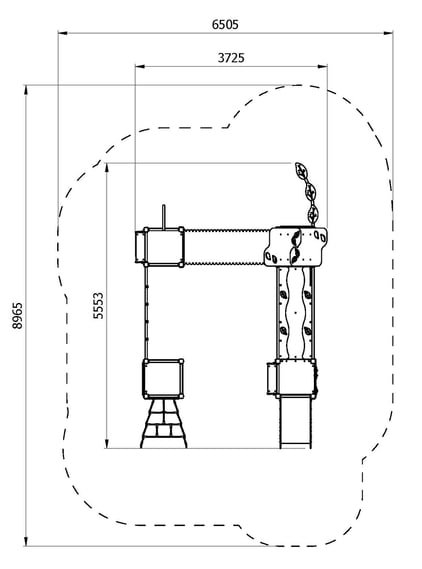

• Dimensions (LxWxH): 3,73 x 5,55 x 2,89 m
• Safety area (LxW): 6,51 x 8,96 m
• Maximum fall height: 1,41 m
• The height of the platform: 0,59 m
• Age group: 3+
• Number of users: 28
• Dimensional tolerance: +/- 5%

• The structure is made of galvanized and powder-coated black S235 steel, with posts of 80 x 80 mm profile and a 2 mm wall thickness.
• The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
• The panel with decorative elements is made of 15 mm thick HDPE, with the central window made of 5 mm thick transparent polycarbonate sheet.
• The panel with insects and movable LUMO illuminated elements is made of 15 mm thick HDPE.
• The tic-tac-toe game panel with decorative elements is made of 15 mm thick HDPE.
• The slide is made of 1.5 mm thick stainless steel sheet with side panels made of 15 mm thick HDPE.
• The rope climbing ramp is made of reinforced black polypropylene rope with a diameter of 16 mm. Plastic and aluminium connectors are used.
• The step is made of 10 mm thick HPL Hexa board, with side panels made of 15 mm thick HDPE.
• The fireman’s pole, a bent tube, is made of S235JR steel, with a tube diameter of 42.4 mm and a 2 mm wall thickness, powder-coated.
• The handrails are made of S235JR steel with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.
• The decorative elements are made of 15 mm thick HDPE boards.
• The rope bridge consists of a floor made of 10 mm thick HPL Hexa board, a bridge frame made of black S235JR steel with an 80 x 80 mm profile and a 2 mm wall thickness, powder-coated, and 4 mm thick sheet metal. The decorations are made of 15 mm thick HDPE, with reinforced black polypropylene ropes with a diameter of 16 mm, aluminium connectors, and handrails made of S235JR steel tubes with a diameter of 42.4 mm and a wall thickness of 2 mm, powder-coated.
• The bench is made of 15 mm thick HDPE, with a frame made of black S235JR steel tube with a diameter of 42.4 mm and a wall thickness of 2 mm.
• The tunnel is made of a black corrugated PP (polypropylene) pipe with an outer diameter of approximately 68 cm, with a panel entirely made of 15 mm thick HDPE.
• The rope climbing wall has a frame made of S235JR steel tube with a diameter of 42.4 mm and a 2 mm wall thickness. The net is made of reinforced black polypropylene rope with a diameter of 16 mm. Plastic and aluminium connectors are used.

All imager are for illustartive purposes only and may vary from the actual product.
