Inclusive roundabout AUTAN 3
Code: IS-IN-103
Description

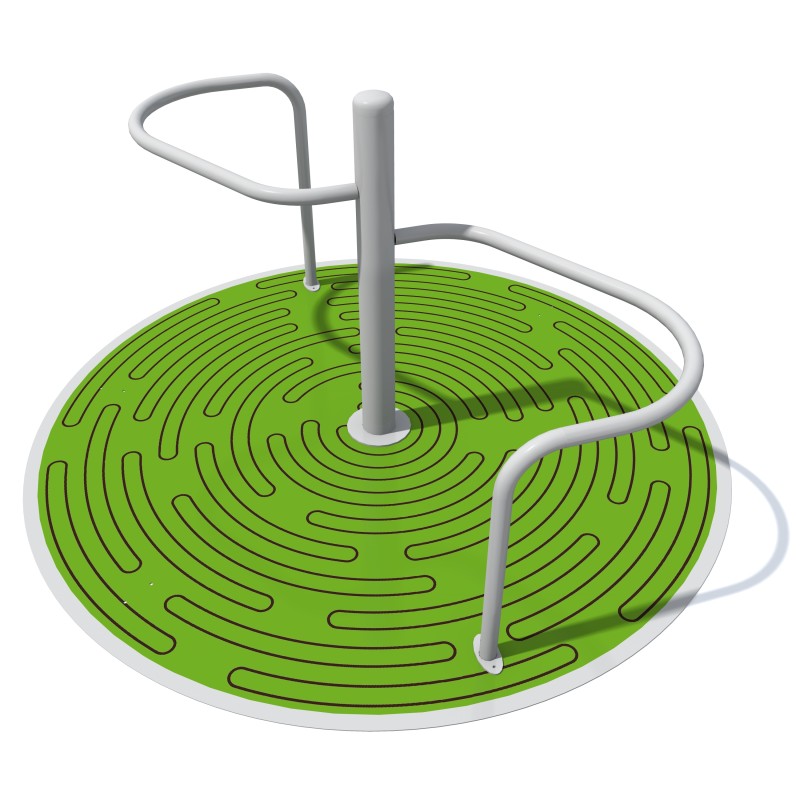

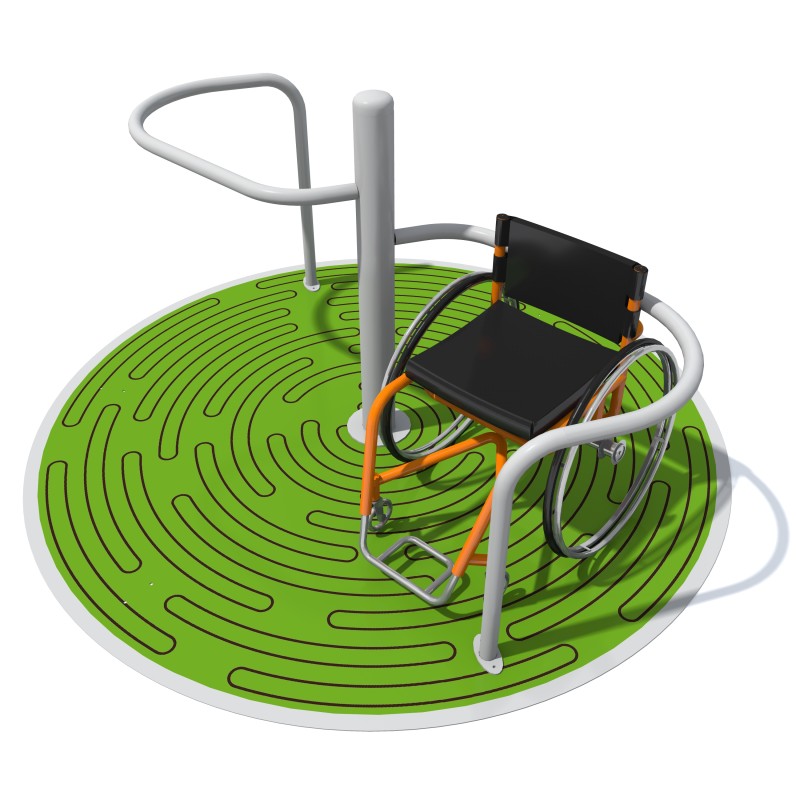

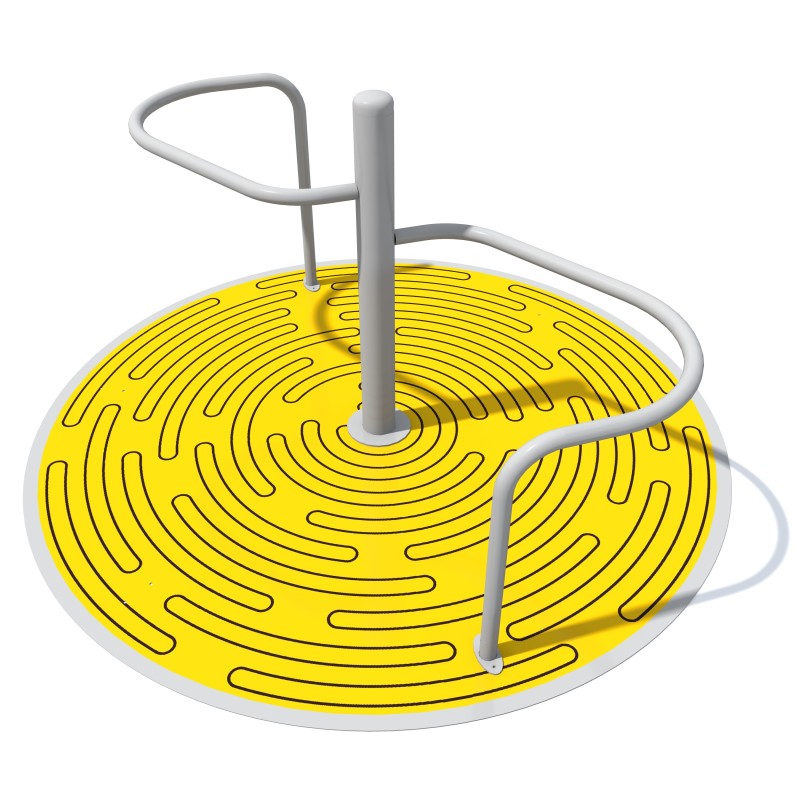

The inclusive carousel allows simultaneous use by 2 people in wheelchairs or 2 standing individuals.
The carousel is set in motion by a person located on the outside. All elements are painted with epoxy-zinc primer and paint. The construction is made of black steel. The floor is made of ribbed, non-slip aluminum sheet.
Playground device consists of
- 1 rotating platform,
- 2 positions for people in wheelchairs or 2 standing individuals,
- 1 S-shaped handrail.
Product details

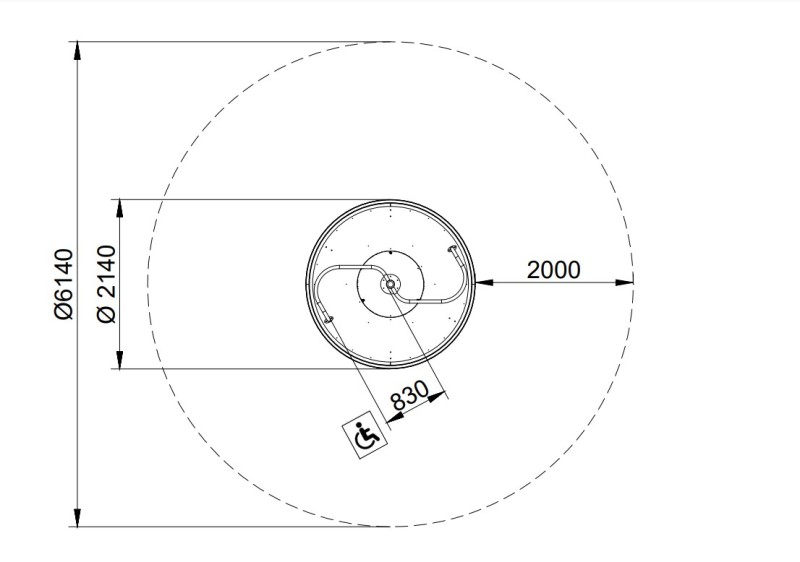

- Device Dimensions (LxWxH): 2,14 x 2,14 x 1.0 m
- Safety zone: 6,14 x 6.14 m
- Free Fall Height: 1.0 m
Differences in dimensions not exceeding +/- 5% are allowed.
Materials
- The construction is made of black steel covered with epoxy-zinc primer and paint (profile 60x40x2, profile 40x40x2, pipe diameter 42.4x2, pipe diameter 33.7x2),
- The platform is made of ribbed aluminum sheet, 3.00 mm thick,
- Seats are made of PE board, 15.00 mm thick,
- Carousel bearing: a system of ball and thrust bearings.
All images are for illustrative purposes only and may vary from the actual product.
