    Playset DOMETO 2-1

    Code: K521

    Technical data sheet:
    pobierz pdfPDF pobierz pdfDOC
    Technical drawings:
    pobierz pdfPDF pobierz dwgDWG
    3D Models:
    pobierz dwgDWG pobierz 3ds3DS


    Climbing frame with style referring to the shapes of a snail and vivid colors. Construction and slide are made of stainless steel which is resistant to weather conditions and intensive use. Frames and railings are ended with stylish balls so the construction looks like snail horns. The floor is made of HPL with non-slip texture. Due to this solution, the floor is soft and safe and does not heat during sunny days and it is not freezing during the winter.

    Colorful, small playground set dedicated to young kids consists of two towers covered by roof.

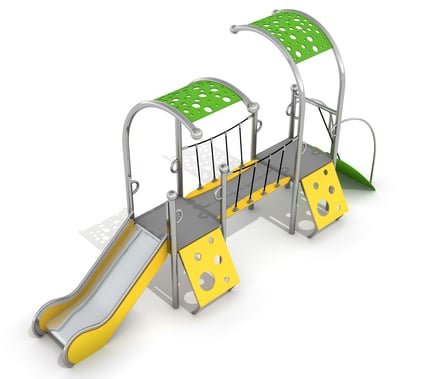

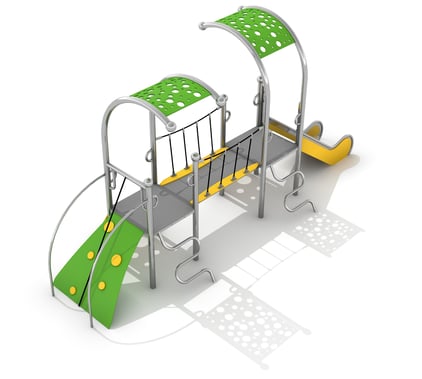

    Playground device consists of

    • 2x towers with roofs
    • 1x stainless steel slide
    • 1x entrance ramp with rope, banisters and round elements
    • 2x climbing walls
    • 2x spiral ladders
    • 2x anti-slip platforms connected with each other by bridge with rope banisters

    Product details

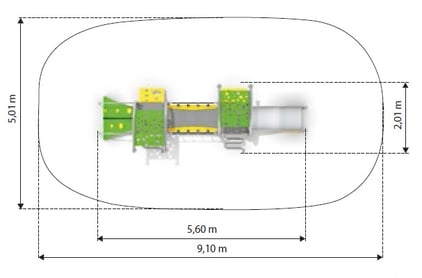

    • Dimensions: 5,60 x 2,01 x 2,80 m
    • Safety area: 9,10 x 5,01 m
    • Free fall height: 0,9 m
    • The hight of the platform: 0,9 m
    • Age: above 3 years
    • Certificate confirming compatibility with norm EN 1176


    Construction made of stainless steel AISI 304 with pipes 76,1 x 2,0 mm,  42,4 x 3,6 mm, 33,7 x 2,0 mm and profiles 40 x 40 x 2,0 mm. Slide and banister of the slide made of stainless steel. Platform and bridge made of HPL material with thickness 10mm. Roofs, entrance ramp, side of the slide and climbing walls made of HDPE material with thickness 15mm.

    All images are for illustration purpose only and may vary from the actual product.
