SATURN

Code: GM1611

Description

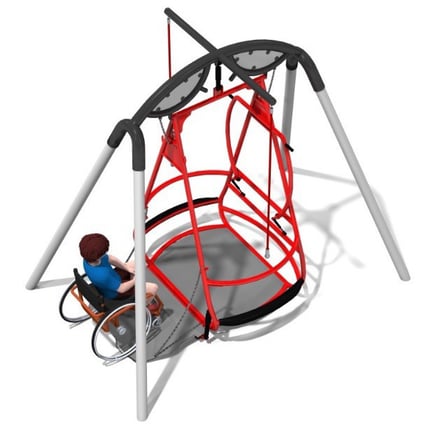

Saturn swing with the gondola is dedicated for one wheelchair user only. More than one person can't use it at the same time. The person inside can move the swing or stop it by himself by using ropes which are located for both sides of the swing. When the swing is in use any person can stay directly nearby safety area. Exploitation is possible only under the supervision of an adult person responsible for swing's user and persons being around.

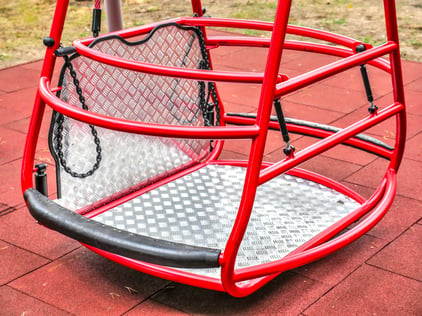

To close the gondola it's important to close the entrance gate using side chains and close the upper gate. To open gondola it's necessary to open the upper gate first. Wheelchair during play should be blocked with the brake. The gondola is equipped with rubber bumpers that are located for both sides of the swing.

As Saturn swing is dedicated only for wheelchair users, it can be optionally equipped with lock system to immobilise it and make impossible using by non-wheelchair persons. The swing is activated only when the lock system is opened.

Color of construction is grey, color of the gondola is red. Construction is made of galvanized steel and powder painted.

For safety reasons it's recommended to use fencing around the device.

Link below presents short video how to use Saturn swing:
ttps://www.youtube.com/watch?v=fAjkkaQ55DU

Saturn swing consists of:

  • 1x frame with 4 legs
  • 1x gondola with 2 ropes to move the swing
  • 1x entrance ramp
  • 3x shock absorber
  • 2x gas spring

Product details:

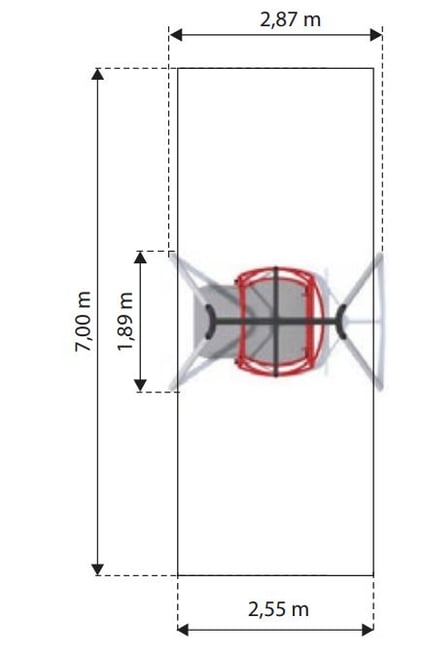

  • Dimensions: 2,87 x 1,89 x 2,66m
  • Safety area: 7,00 x 2,55m
  • Certificate confirming compatibility with norm EN 1176-1:2017, 1176-2:2017

Materials

Metal pipes: 42,40 x 2,00 mm, 38,00 x 2,00 mm, 60,30 x 2,60 mm, 88,90 x 2,70 mm with profile 40,00 x 27,00 x 2,00 mm. The legs for the swing: 88,90 x 2,00 mm. Platform: aluminium plate 3,00 mm. Rope 16mm with the plastic ending.

All images are for illustration purpose only and may vary from the actual product.

Picture:
JPG
Technical data sheet:
PDF
Technical drawings:
PDF DWG
3D Models:
DWG
