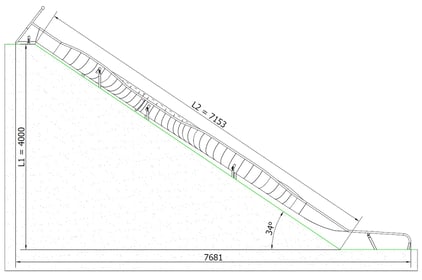

The ground slide is designed for installation on natural or formed embankments. The product is of the shape of the spiral slide. Length of slide 7,68 m, the width of slide 0,5 m. It’s fully made of matt stainless steel. This slide should be mounted on an embankment that height is 4,00 m.

  • 1 x spiral slide
  • 9 x foundation legs to embed
  • Height of embankment: L1= 4,00 m
  • Length of embankment slope: L2= 7,15 m
  • Dimensions (LxWxH): 7,68 x 0,5 x 4,00m
  • Safety area on the end of the slide: 2,00 m
  • Free fall height: 0,30 m
  • Age group: 3+
  • A certificate confirming compatibility with norm EN 1176
  • Differences in dimensions no more than +/- 5% are acceptable
  • Matt stainless steel (0304), the thickness of steel plate 2mm
  • Foundation legs made of stainless steel

All images are for illustrative purposes only and may vary from the actual product.
