STEPPER II

Archived product

This product is inactive and archived in our catalogue. The page is kept for reference, drawings, and documentation, but availability may be limited. Contact us if you need a current replacement or project support.

Code | MD-FS-004

Slide 1 of 5

Inter Play Studio

Design Your Playground

Download files



Technical data sheet

Technical drawings

3D Models

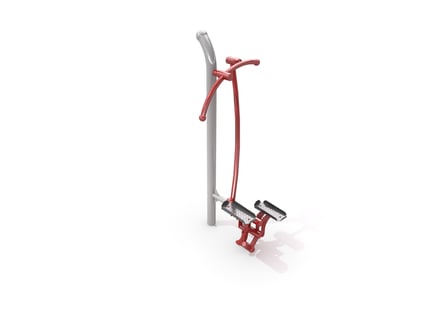

The Stepper II is aerobic outdoor gym equipment to builds-up muscles strength of the thighs, calves and buttocks and arms.  Improves functionality of the cardiovascular system and motor coordination.


To do exercise stand on the steps, grab the handle with your hands. Press your feet on the steps as if you were walking in place while moving your hands alternately. Keep your back in an upright position during the course of the exercise.

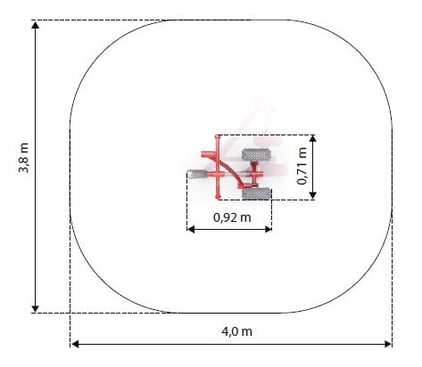

  • Dimensions (LxWxH): 0,92 x 0,71 x 1,93 m
  • Safety zone: 4,0 x 3,8 m
  • The number of anchors: 1
  • Compatibility with norm EN 16630 confirmed by the certificate
  • Can be painted in any colour from the RAL palette


Materials

  • Construction is made of powder painted steel and protected against corrosion.
  • Steps are made of aluminium.
  • Handles are made of pipe ended with rounded decorative elements and profiled to ensure ergonomics and user safety.
  • Construction is welded and has no plastic ends except for bearing connections where it is possible to maintain/repair.

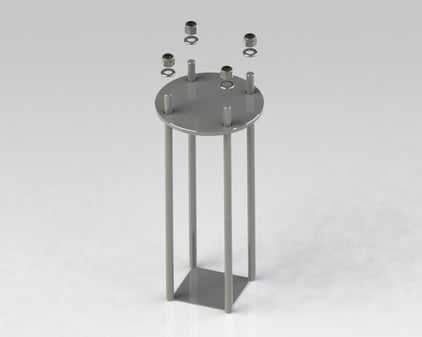

  • The device is mounted on a supporting pole, that is attached to the ground by the flange.
  • The flange is screwed with M16 screws into anchor fixed in the concrete. Anchoring nuts are secured against unscrewing.


Differences in dimensions no more than +/- 5% are acceptable.

All images are for illustration purpose only and may vary from the actual product.
