Pull-In Butterfly

Code: MD-FS-009

The Pull-In Butterfly outdoor gym equipment to develops strength the muscles of the arms, chest and back. Helps users to build up upper body parts. Improves the functioning of the cardiopulmonary system. Available in two versions: Comfort and Hard one. Comfort version means that seat and backrest are covered by polyurethane foam (PU system). In the result users never have a feeling of hot touch during very sunny days, or cold during frost. The key point of this version is to provide everyone with optimal comfort for exercise. If you prefer mainly resistance for vandalism the best option is to choose version hard with metal seats and backrests.

To do exercise sit comfortably on the seat and grab the handles with your hands. Pull the handles together at the same time. Keep your back upright.

Technical details:

  • Dimensions (LxWxH): 0,83 x 1,00 x 1,32 m

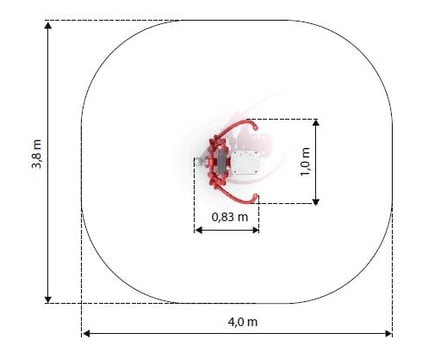

  • Safety zone: 4,0 x 3,8 m
  • Compatibility with norm EN 1176 confirmed with  the certificate

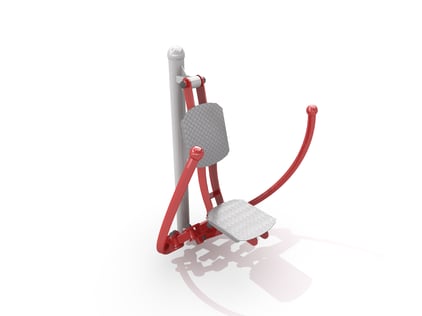

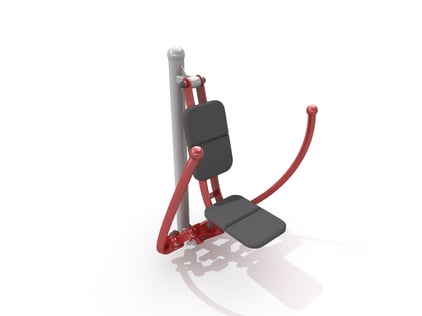

  • Available in two versions: Comfort and Hard
  • Can be painted in any colour from the RAL palette

Materials:

  • Construction is made of powder painted steel and protected against corrosion.
  • Handles are made of pipe ended with rounded decorative elements and profiled to ensure ergonomics and user safety.
  • Construction is welded and has no plastic ends except for bearing connections where it is possible to maintain/repair.
  • The device is mounted on a supporting pole, that is attached to the ground by the flange.

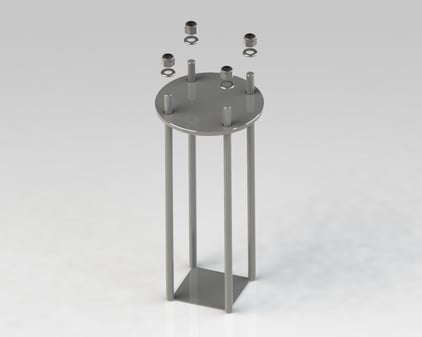

  • The flange is screwed with M16 screws into anchor fixe ind the concrete. Anchoring nuts are secured against unscrewing.

Differences in dimensions no more than +/- 5% are acceptable.

The presented drawing is for illustrative purposes. Actual product may be slightly different.

Technical data sheet:
PDF
Technical drawings:
DWG
3D Models:
DWG
