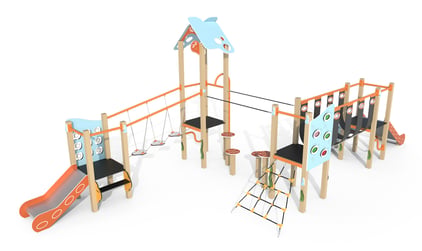

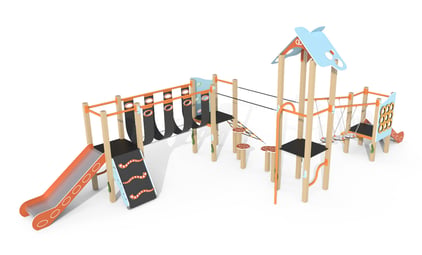

LUDO OCEAN 4-1 Playset inspired by the ocean transforms the playground into an adventurous underwater world full of exploration and discovery. The equipment includes, among others, four towers with platforms, two slides, two climbing ramps, a chain bridge, a bridge made of rubber belts, and activity panels with colourful windows and a tic-tac-toe game. The structure is made of S235 steel, protected against corrosion by galvanizing and powder coating. The slides are made of stainless steel sheet. The panels and decorative elements are made of HDPE. The platforms and step are made of HPL Hexa board.

  • 16 structural posts
  • 1 panel with 8 wheels that emit colourful light when set in motion: 5 blue (water drops), 1 green, 1 purple and 1 pink (fish)
  • 1 “tic-tac-toe” game panel (shells, starfish)
  • 3 towers with platforms
  • 1 tower with a platform and a roof
  • 12 handrails
  • 2 straight slides
  • 1 access climbing ramp with 3 steps (octopus tentacles)
  • 1 rope access climbing ramp
  • 1 fireman’s pole
  • 1 access step
  • 1 bridge suspended on chains connecting two platforms (3 shells)
  • 1 bridge (4 steps/mushrooms) between two platforms
  • 1 bridge made of rubber straps stabilised with chains, connecting two platforms
  • 2 access rungs
  • Decorative elements (seaweed, air bubbles, octopus)

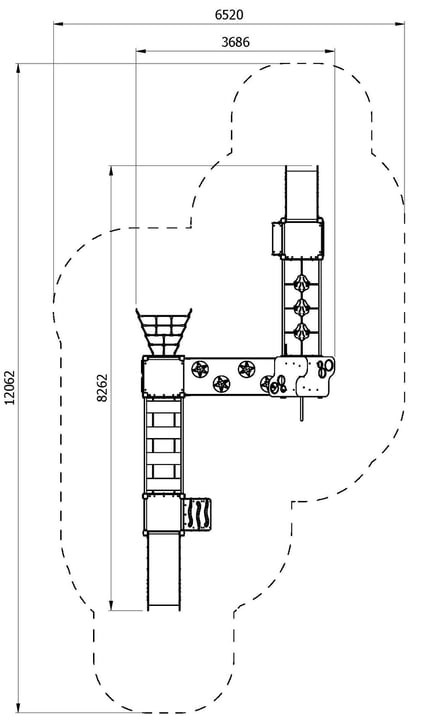

  • Dimensions (LxWxH): 3,69 x 8,26 x 3,2 m
  • Safety area (LxW): 6,52 x 12,06 m
  • Maximum fall height: 0,9 m
  • Age group: 3+
  • Number of users: 26
  • Dimensional tolerance: +/- 5%
  • The structure is made of S235 carbon steel, galvanized and powder-coated, with 80 x 80 mm posts and a 2 mm wall thickness.
  • The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
  • The panel with decorative elements is made of 15 mm thick HDPE, with a central transparent window made of 5 mm thick transparent polycarbonate sheet.
  • The panel with decorative elements is made of 15 mm thick HDPE, with coloured semi-transparent elements made of 8 mm thick tinted plexiglass sheet.
  • The panel is made of 15 mm thick HDPE, with movable elements and LUMO illuminated wheels.
  • The slide is made of 1.5 mm thick stainless steel with side panels made of 15 mm thick HDPE.
  • The rope climbing ramp is made of reinforced black polypropylene rope with a diameter of 16 mm. Connectors made of plastic and aluminium are used.
  • The access step is made of 10 mm thick Hexa HPL board, with side panels made of 15 mm thick HDPE.
  • The climbing ramp is made of 10 mm thick Hexa HPL board, with climbing elements and side panels made of 15 mm thick HDPE.
  • The fireman’s pole, a bent tube, is made of S235JR steel, with a tube diameter of 42.4 mm and a 2 mm wall thickness, powder-coated.
  • The handrails are made of S235JR steel with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.

All imager are for illustartive purposes only and may vary from the actual product.
