Playset LUDO OCEAN 2-2

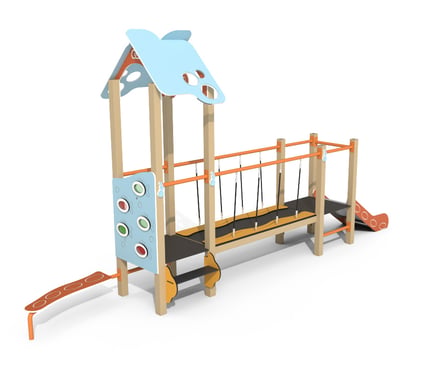

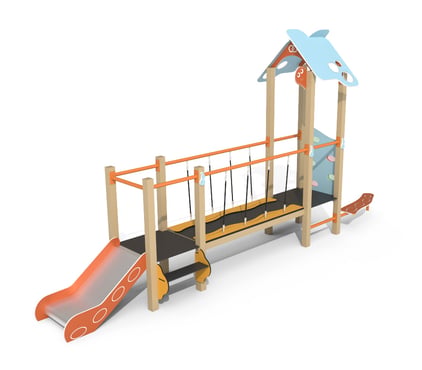

LUDO OCEAN 2-2 Playset inspired by the ocean transforms the playground into an adventurous underwater world full of exploration and discovery. The equipment includes, among others, two towers with platforms, a slide, a climbing ramp, a rope bridge, a bench, and a panel with transparent, colourful windows. The structure is made of S235 steel, protected against corrosion by galvanizing and powder coating. The slide is made of stainless steel sheet. The panel and decorative elements are made of HDPE. The platforms and step are made of HPL Hexa board.

• 8 structural posts
• 1 panel with transparent windows: 2 red and 3 green
• 1 tower with a platform
• 1 tower with a platform and a roof
• 7 handrails
• 1 straight slide
• 1 access climbing ramp
• 1 fireman’s pole
• 1 access step
• 1 bridge (walkway) connecting two platforms
• 1 access rung
• 1 bench
• Decorative elements (air bubbles, octopus)

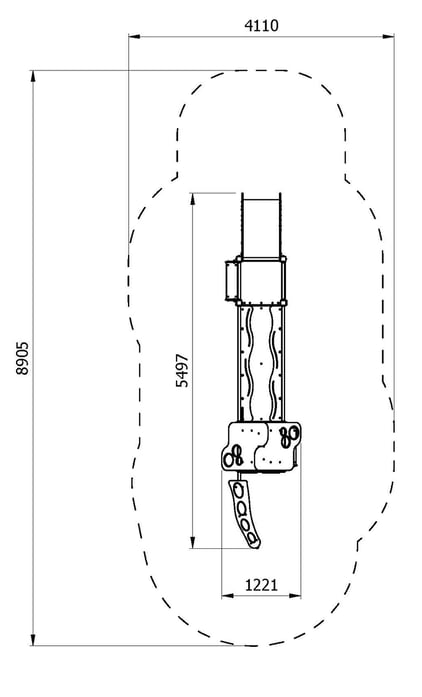

• Dimensions (LxWxH): 1,22 x 5,5 x 2,89 m
• Safety area (LxW): 4,11 x 8,91 m
• Maximum fall height: 0,59 m
• Age group: 3+
• Number of users: 16
• Dimensional tolerance: +/- 5%

• The structure is made of S235 carbon steel, galvanized and powder-coated, with 80 x 80 mm posts and a 2 mm wall thickness.
• The platforms in graphite colour made of 10 mm thick HPL Hexa panels.
• The panel with decorative elements is made of 15 mm thick HDPE, with a central transparent window made of 5 mm thick transparent polycarbonate sheet.
• The slide is made of 1.5 mm thick stainless steel with side panels made of 15 mm thick HDPE.
• The access step is made of 10 mm thick Hexa HPL board, with side panels made of 15 mm thick HDPE.
• The handrails are made of S235JR steel with a diameter of 33.7 mm and a 2 mm wall thickness, powder-coated.
• The decorative elements are made of 15 mm thick HDPE boards.
• The rope bridge consists of a floor made of 10 mm thick Hexa HPL board. The bridge frame is made of S235JR carbon steel with an 80 x 80 mm profile and a 2 mm wall thickness, powder-coated, with 4 mm thick steel plates. The decorative elements are made of 15 mm thick HDPE. The bridge is equipped with black reinforced polypropylene ropes with a diameter of 16 mm and aluminium connectors. The handrails are made of S235JR steel tubes with a diameter of 42.4 mm and a 2 mm wall thickness, powder-coated.
• The bench is made of 15 mm thick HDPE, with a supporting structure made of S235JR carbon steel tube with a diameter of 42.4 mm and a 2 mm wall thickness.

All imager are for illustartive purposes only and may vary from the actual product.
