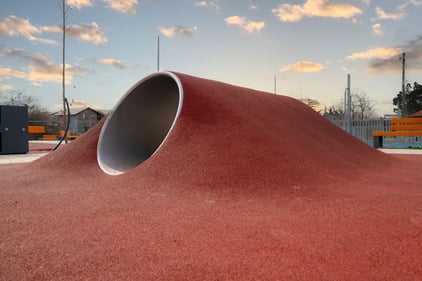

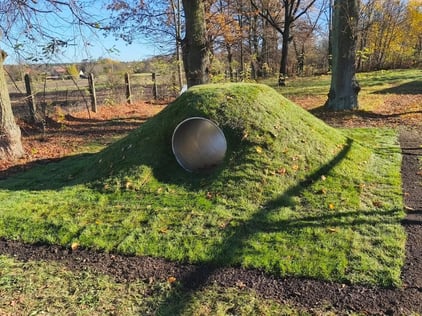

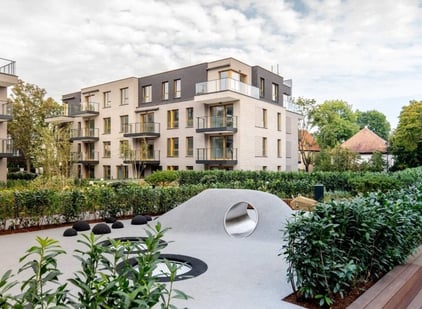

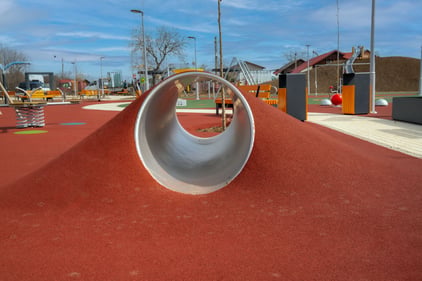

A tunnel tube in the shape of a circular pipe is designed for installation inside natural or formed embankments. Length of tunnel 3,00m, diameter 0,85m. Entrance and exit cut at 30º angle to the axis of the tunnel. It’s fully made of matt stainless steel.

  • 1 tunnel tube
  • Product dimensions (LxWxH): 3,95 x 0,85 x 0,85 m
  • Safety area (LxW): 6,95 x 3,85 m
  • Length between tunnel feet: L1 = 2,57 m
  • Length of the top of the tunnel: L2 = 3,00 m
  • Length of the bottom of the tunnel: L3 = 3,95 m
  • Weight: 148 kg
  • Age group: 2+
  • A certificate confirming compatibility with norm EN 1176
  • Differences in dimensions no more than +/- 5% are acceptable
  • matt stainless steel (0304), the thickness of steel plate 2mm
  • foundation legs made of stainless steel

All images are for illustrative purposes only and may vary from the actual product.
