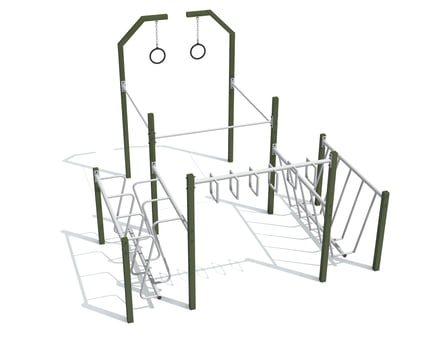

The gymnastic set designed for teenagers and adults. It includes 3 single bars, 1 set of gymnastic rings, 1 slalom passage, 1 bridge passage, and 1 horizontal bar with grips. The structure is made of steel, corrosion-protected and powder-coated. Exercises on this equipment strengthen the muscles of the arms, legs, waist, abdomen, back, and chest, while also improving cardiovascular endurance.

Gymnastic set device consists of

  • 3 x single bars
  • 1 x set of gymnastic rings
  • 1 x slalom passage
  • 1 x bridge passage
  • 1 x horizontal bar with grips

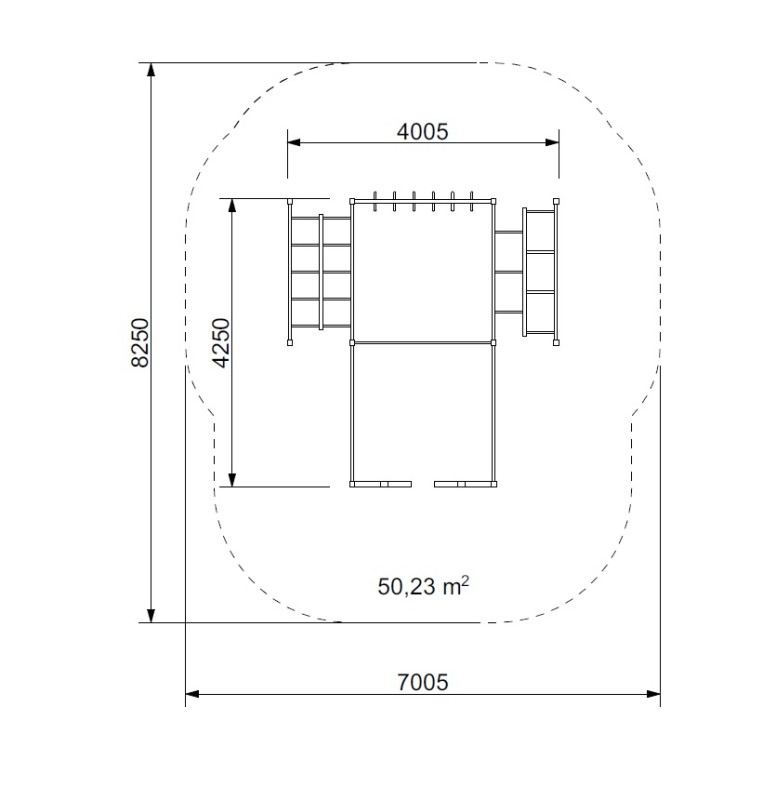

  • Dimensions (LxWxH): 4,00 x 4,25 x 3,10 m
  • Safety area (LxW): 8,00 x 8,25 m
  • Freefall height: 1,25 m
  • Number of users: 7
  • Height of the bar: 1,80; 2,10 m
  • User’s maximum weight: 150 kg
  • A certificate confirming compatibility with norm EN 16630
  • Differences in dimensions no more than +/- 5% are acceptable
  • Galvanized and powder painted steel - the devices are painted in green (RAL 6013) and grey (RAL 9006). On request other RAL colours may be used,
  • Construction posts with square profile 80x80 mm (thickness 3 mm),
  • Screws covered by polymer caps.
  • The device is available in various colors

Available Colors:

  • Military green (RAL6013) – standard
  • Silver (RAL9006) – standard
  • Green (RAL6018)
  • White (RAL9003)
  • Dark gray (RAL7004)
  • Graphite (RAL7016)
  • Black (RAL9005)
  • Blue (RAL5015)
  • Yellow (RAL1018)
  • Red (RAL3020)
  • Dark military green (RAL6003)

All images are for illustration purpose only and may vary from the actual product.
