Product Features

Physical

Physical skills refer to abilities related to the body, that is, motor proficiency and the capacity to perform specific movements. These may include, for example, running, jumping, throwing, balance, coordination, endurance, strength, and flexibility.

Social-emotional

Social: Refers to skills related to functioning within a group, managing interactions with others, communication, cooperation, conflict resolution, and relationship building. Emotional: Includes skills related to recognizing and understanding one’s own emotions and the emotions of others, as well as regulating and expressing them appropriately.

Sliding down

Play involving elements of sliding refers to activities in which children or other individuals slide down from a height, often using slides.

Socialisation

Play with elements of “socialization” is play that helps children learn social contacts and relationships — that is, how to cooperate, communicate, share, resolve conflicts, and understand others.

Slide TUBO H2750

Code: IS-MO-503

« PREV NEXT »

Download files

Technical data sheet:

PDF

DOC

Technical drawings:

PDF

DWG

3D Models:

DWG OBJ FBX

To receive the 3D file, send a message:

Description

Description

The TUBO H2750 tube slide is a timeless playground element that provides children with dynamic and safe play. Its enclosed tube design adds excitement and creates unforgettable sliding experiences every time. It is perfect for any recreational space — both in parks and residential areas. High-quality workmanship guarantees durability, safety, and long-term use. The slide is designed for installation on an embankment, allowing it to be naturally and aesthetically integrated into the playground environment.

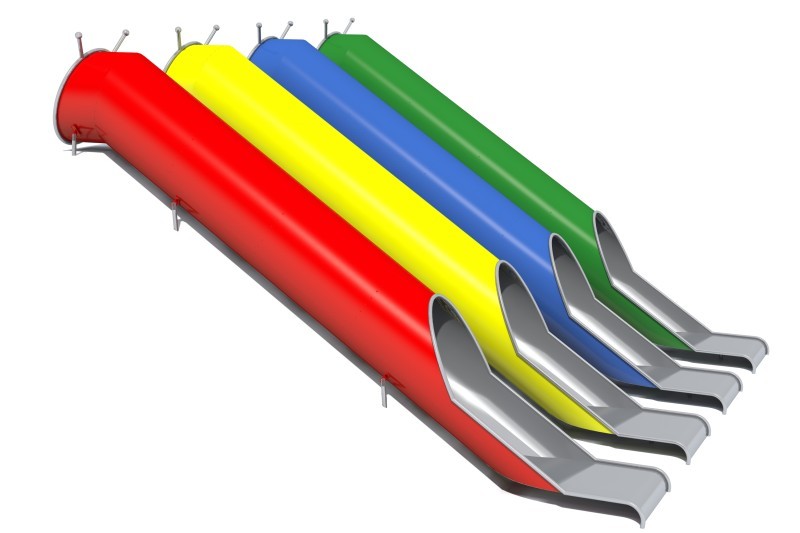

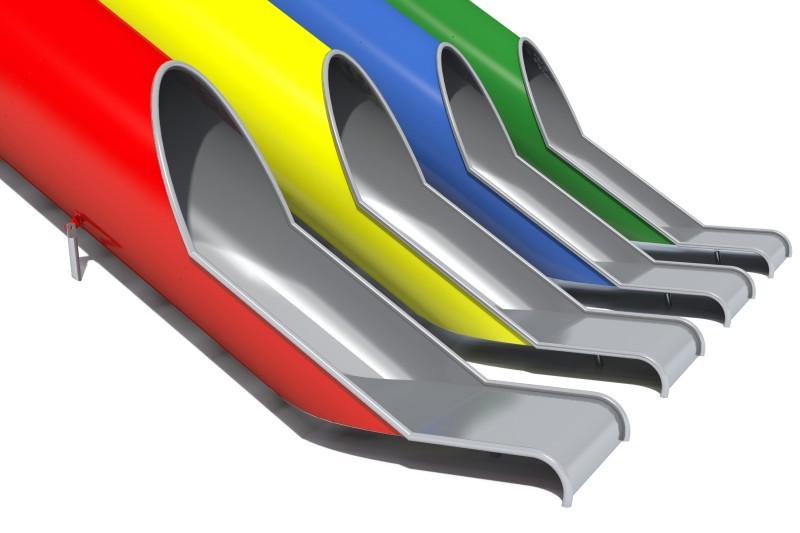

Additionally, you can choose from various colour options to better match the equipment to its surroundings and enhance its character — this option is available at an extra cost; consult the seller for available colours.

The TUBO H2750 tube slide consists of a straight tube-shaped slide that ensures a safe descent. The structure is supported by six foundation legs made of stainless steel, providing high strength, complete corrosion resistance, as well as excellent stability and durability of the entire unit. The slide is made entirely of stainless steel AISI 304 (1.4301), with a sheet thickness of 2 mm and a 33.7 × 2 mm profile; the surface is bead-blasted, weather-resistant, and easy to maintain. The upper part of the slide is equipped with two handles finished with spherical elements, making it easier for children to enter safely at the start.

Playground device consists of

1 tube slide
6 foundation legs to embed

Product details

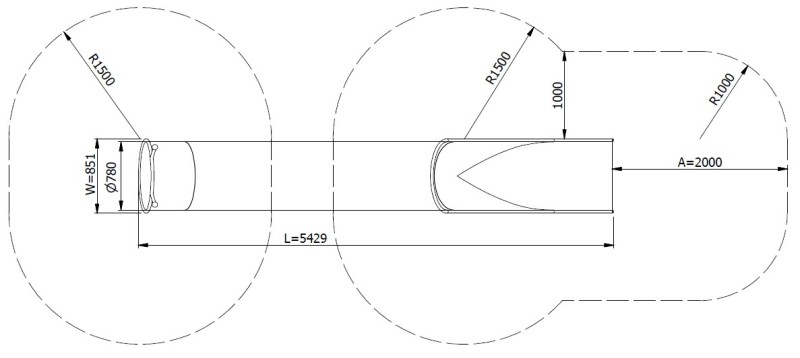

Dimensions (L×W×H): 5,43 x 0,85 x 3,82 m
Safety area (L×W): 8,93 x 4,15 m
Maximum fall height: 0,34 m

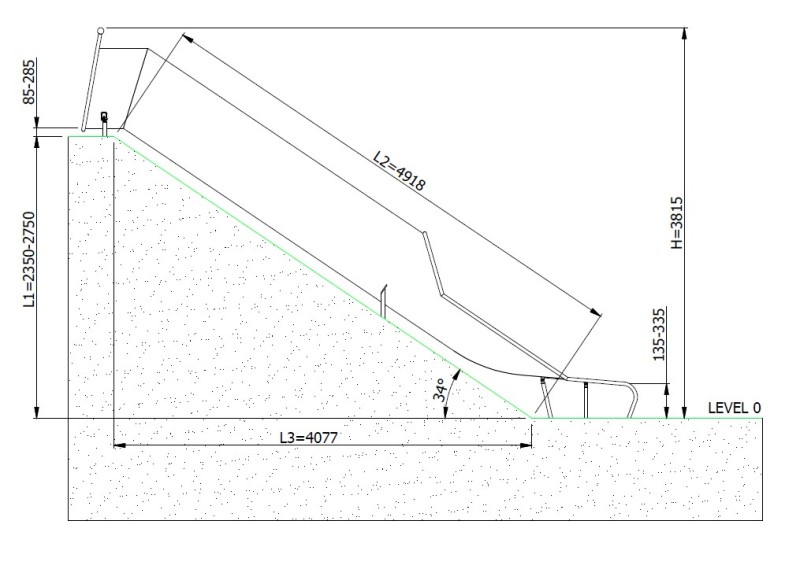

Embankment height (L1): 2350-2750 mm
Embankment length (L2): 4918 mm
Embankment width (L3): 4077 mm
Age: 3+
Number of users: 2
Differences in dimensions no more than +/- 5% are acceptable

Materials

Polished slide made entirely of stainless steel AISI 304 (1.4301) with a sheet thickness of 2 mm and a profile of 33.7 × 2 mm
Foundation legs made of stainless stee

All images are for illustrative purposes only and may vary from the actual product.
