Code | 01-SF-741-X-F

Slide 1 of 4

Product features



Inter Play Studio

Design Your Playground

Download files



Technical data sheet

Technical drawings

The SFERO FOREST 4-1 Playset is a unique attraction that can become the centerpiece of any playground. The structure encourages children to climb, engage in active play, and explore, supporting the development of motor coordination, strength, and spatial imagination. Its robust construction, safe materials, and geometric design make the playset ideal for public, school, and residential playgrounds.

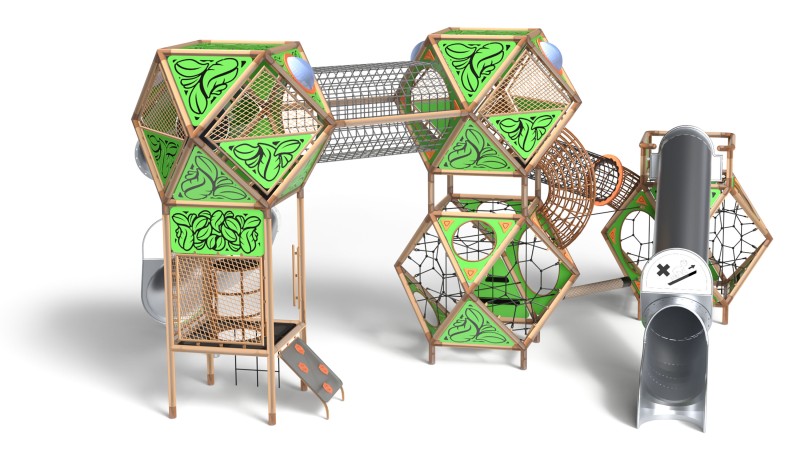

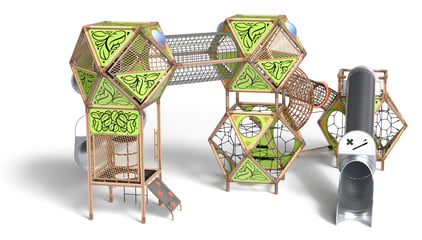

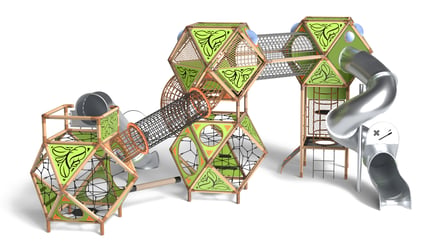

The SFERO FOREST 4-1 Playset consists of four interconnected spherical structures, one straight tube slide, and one curved tube slide. Each sphere is an Archimedean solid and, thanks to its octagonal symmetry and radially equilateral construction, forms an exceptionally stable structure that ensures the highest level of user safety. A single spherical structure features 24 identical edges formed by structural tubes made of AISI 304 stainless steel, powder-coated, with a diameter of 88.9 mm and a wall thickness of 3.2 mm. The structural elements of the spheres are connected in an innovative manner using internal connecting sleeves, which provide a strong and secure connection between components. As a result, the structure remains stable even during intensive play involving up to 60 children.

*An optional version with plastic slides is also available.

  • 12 supporting posts for the main structure
  • 4 slide support posts
  • 1 straight tube slide
  • 1 curved tube slide
  • 17 triangular milled panels
  • 4 porthole openings
  • 2 square milled roof panels
  • 1 external rectangular entrance ramp
  • 4 internal triangular entrance ramps
  • 5 square climbing panels
  • 3 black rubber resting platforms
  • 1 internal ladder
  • 7 triangular steel plates with openings
  • 5 square steel plates with openings
  • 5 steel mesh panels
  • 1 steel tunnel
  • 2 rope tunnels
  • 1 balancing rope
  • 52 corner connectors

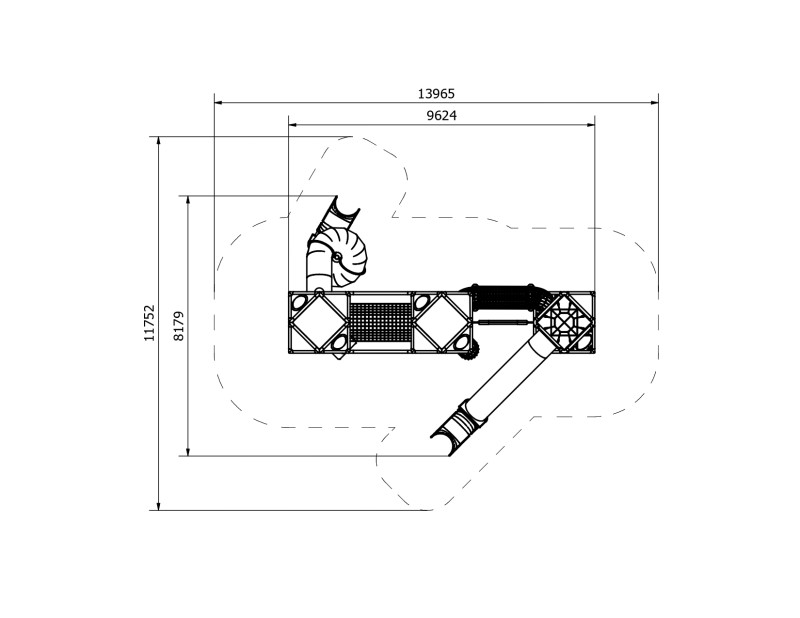

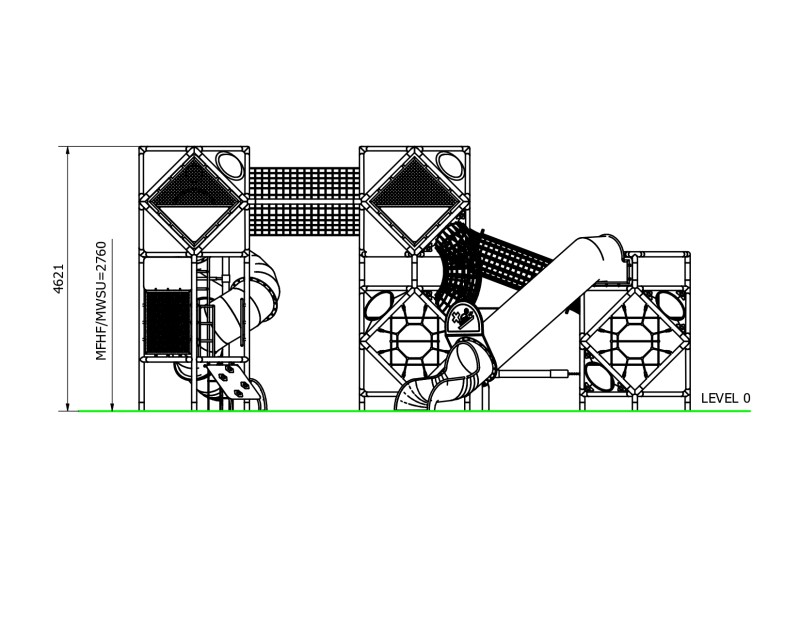

  • Dimensions (LxWxH): 9.62 × 8.18 × 4.62 m
  • Safety area (LxW): 13.96 × 11.75 m
  • Maximum fall height: 2.18 m
  • Age group: 4+
  • Number of users: 61
  • A certificate confirming compatibility with norm EN 1176
  • Dimensional tolerance: ±5%
  • Structure made of AISI 304 stainless steel, powder-coated. Tubes Ø 88.9 mm, wall thickness 3.2 mm.
  • Mesh elements (walls and tunnels) made of corrosion-protected, powder-coated steel.
  • Fasteners made of stainless steel.
  • Triangular milled panels made of 15 mm HDPE.
  • Ropes Ø 16 mm, polypropylene, reinforced with a steel core; UV-resistant and flame-retardant.
  • Balancing rope (marine-type) made of polypropylene.
  • Platform (deck) in black, made of fiber-reinforced EPDM rubber.
  • Entrance ramp made of steel covered with anti-slip HPL panels.
  • Walls in green and orange made of 15 mm HDPE.
  • Stainless steel slide, matte finish, wall thickness 2 mm.
  • Modular assembly system based on repetitive elements and corner connectors.
  • Internal stair steps made of anti-slip HPL.
  • Windows made of 3 mm polycarbonate.

All images are for illustrative purposes only and may vary from the actual product.
